Ferrari 12 Cilindri Spider — [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES (diagram 0044)

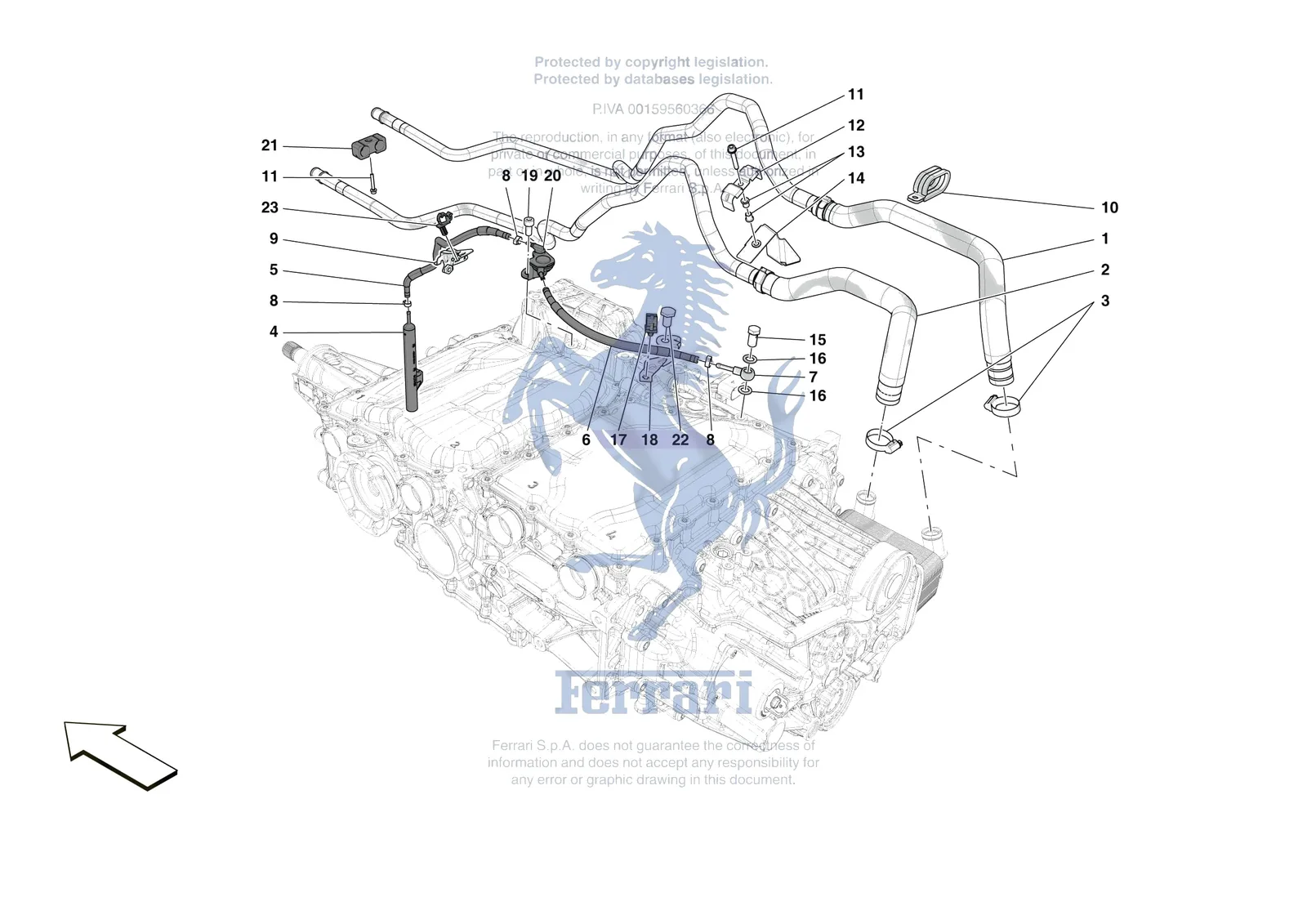

Exploded view of the [gearbox] - c.03.02 - gearbox oil heat exchanger and pipes - heat exchanger and rear pipes on the Ferrari 12 Cilindri Spider, with 24 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri Spider [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri-spider/0044.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 841332 | Ferrari WATER RETURN PIPE ON GEARBOX - 841332 | Price on request | Contact us for price and availability |
| 2 | 842584 | Ferrari WATER DELIVERY PIPE ON GEARBOX - 842584 | Price on request | Contact us for price and availability |
| 3 | 178053 | Ferrari Clip - 178053 | $2.64 | In stock |
| 3 | 296779 | Ferrari Hose Clamp 20 to 32mm - 296779 | Superseded | Order 178053 instead |
| 4 | 954070 | Ferrari Tubo Sfiato Vs Fondo In Plas - 954070 | $63.90 | Special order, ships in 7-14 days |
| 5 | 934891 | Ferrari Tubo Gomma Anteriore Su Camb - 934891 | $88.49 | Special order, ships in 7-14 days |
| 6 | 954057 | Ferrari Tubo Gomma Su Cambio - 954057 | $58.98 | Special order, ships in 7-14 days |
| 7 | 954054 | Ferrari Eyelet Union for Breather - 954054 | $56.52 | Special order, ships in 7-14 days |
| 8 | 13432570 | Ferrari Collar - 13432570 | $2.82 | Special order, ships in 7-14 days |
| 9 | 938373 | Ferrari Bracket - Transmission Heat Exchanger Pipe - 938373 | $68.83 | Special order, ships in 7-14 days |
| 10 | 61712600 | Ferrari P Clip Bracket With Sheath D28 - 61712600 | $3.26 | Available, ships in 3-6 days |
| 11 | 231623 | Ferrari Screw M6 x 40 TCEI - 231623 | $1.02 | Available, ships in 3-6 days |
| 12 | 329366 | Ferrari Retainer Block Plate - 329366 | $13.74 | Available, ships in 3-6 days |
| 13 | 329368 | Ferrari Retainer Block Bush Diam.23 - 329368 | $1.49 | Available, ships in 3-6 days |
| 14 | 780830 | Ferrari Supporto Gogna Per Tubi H20 - 780830 | $78.66 | Special order, ships in 7-14 days |
| 15 | 11903811 | Ferrari Banjo Bolt M10 x 1.25 - 11903811 | $8.05 | Special order, ships in 7-14 days |
| 16 | 10284460 | Ferrari Washer - 10284460 | $0.31 | Available, ships in 3-6 days |
| 17 | 292112 | Ferrari CLIP - 292112 | Price on request | Contact us for price and availability |
| 18 | 954065 | Ferrari Bracket for Breather Pipe - 954065 | $41.76 | Special order, ships in 7-14 days |
| 19 | 14306224 | Ferrari Screw M8 x 16 - 14306224 | $0.38 | Available, ships in 3-6 days |
| 20 | 935822 | Ferrari Complete Tank - 935822 | $103.25 | Special order, ships in 7-14 days |
| 21 | 329367 | Ferrari Gogna Gomma X Tubi 2 - 329367 | $13.24 | Special order, ships in 7-14 days |
| 22 | 803878 | Ferrari Hex Head Screw M10 Testa Rib. - 803878 | $12.00 | Special order, ships in 7-14 days |
| 23 | 262559 | Ferrari Clip - 262559 | $1.78 | Available, ships in 3-6 days |
