Ferrari 12 Cilindri Spider — [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION (diagram 0056)

Exploded view of the [mechanical system] - d.08.01 - exhaust system - front section on the Ferrari 12 Cilindri Spider, with 39 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

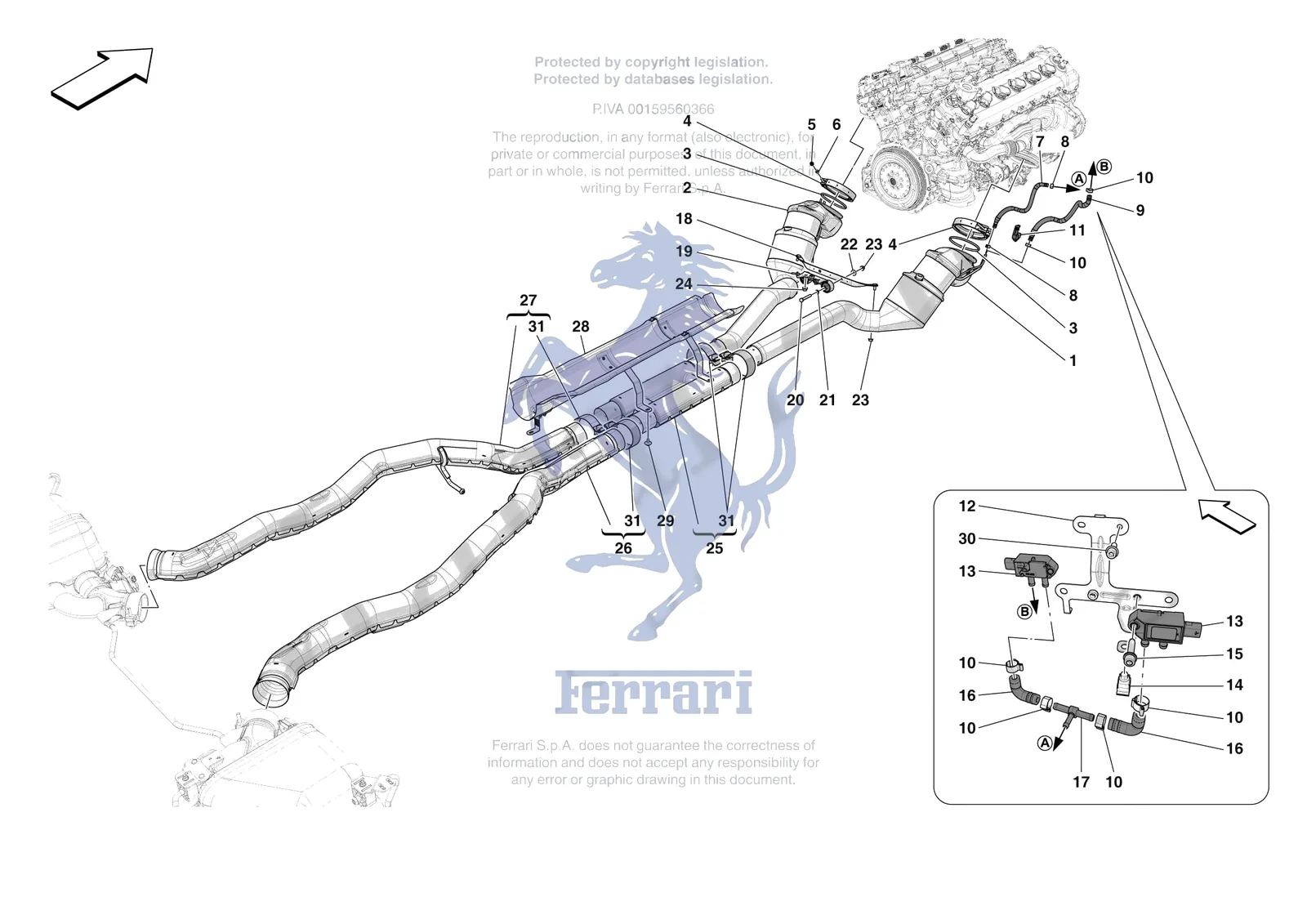

Ferrari 12 Cilindri Spider [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
864209Ferrari CATALYTIC CONVERTER MOUNTING BRACKET - 864209Price on requestContact us for price and availability
198253Ferrari Clip - 198253$7.40Special order, ships in 7-14 days
10615670Ferrari Washer - 10615670SupersededOrder 12601374 instead
10615671Ferrari Washer - 10615671SupersededOrder 12601374 instead
10615674Ferrari Washer - 10615674SupersededOrder 12601374 instead
10615679Ferrari Washer - 10615679SupersededOrder 12601374 instead
12601370Ferrari Washer - 12601370SupersededOrder 12601374 instead
12601379Ferrari Washer - 12601379SupersededOrder 12601374 instead
1817848Ferrari Compl. RH Ceramic Catalytic - 817848$24,309.70Special order, ships in 7-14 days
2817844Ferrari Compl. LH Ceramic Catalytic - 817844$24,320.56Special order, ships in 7-14 days
3275465Ferrari Gasket - 275465$103.25Available, ships in 3-6 days
4290743Ferrari V-Clamp For Fastening Catalytic Converter to Manifold - 290743$164.72Special order, ships in 7-14 days
5292945Ferrari Nut M8 x 1.25 - 292945$28.39Special order, ships in 7-14 days
6292946Ferrari 812/F12 Exhaust Clamp Shim/Spacer - 292946$9.75In stock
7742161Ferrari RUBBER PIPE - 742161Price on requestContact us for price and availability
813126970Ferrari Collar - 13126970$3.03Available, ships in 3-6 days
9742153Ferrari RUBBER PIPE - 742153Price on requestContact us for price and availability
1013125570Ferrari Collar - 13125570SupersededOrder 13432070 instead
11866152Ferrari Clip - 866152$1.36Special order, ships in 7-14 days
12868448Ferrari Sensor Bracket - 868448$81.11Special order, ships in 7-14 days
13340691Ferrari Pressure Sensor - 340691$196.67Special order, ships in 7-14 days
14206536Ferrari Clip D.14 - 206536$0.92Special order, ships in 7-14 days
15231620Ferrari/Maserati Screw - 231620$0.58In stock
16806791Ferrari Tubo Gomma D.7-14 90 - 806791$34.40Special order, ships in 7-14 days
17807844Ferrari Three Way Connector 8-8-6 - 807844$120.46Special order, ships in 7-14 days
1855041222Ferrari CATALYTIC CONVERTER MOUNTING BRACKET - 55041222Price on requestContact us for price and availability
19868999Ferrari Compl. Cat Mounting Bush Bra - 868999$417.97Special order, ships in 7-14 days
2016044321Ferrari Screw M8 x 55 - 16044321$1.05Available, ships in 3-6 days
2112601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
2211193974Ferrari Washer - 11193974$0.13Available, ships in 3-6 days
2314059311Ferrari NUT - 14059311$0.52Available, ships in 3-6 days
2414040711Ferrari Nut M8 - 14040711$0.79Available, ships in 3-6 days
25817854Ferrari Compl. Central Extension - 817854$874.21Special order, ships in 7-14 days
26817866Ferrari Compl. RH Rear Extension - 817866$1,914.99Special order, ships in 7-14 days
27817860Ferrari Compl. LH Rear Extension - 817860$1,894.18Special order, ships in 7-14 days
28820345Ferrari Compl. Transmission Shaft Sh - 820345$688.45Special order, ships in 7-14 days
2981290900Ferrari Screw With Double Washer - 81290900$1.42In stock
30256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
31282998Ferrari Ring Clamp - 282998$36.08Special order, ships in 7-14 days

All 12 Cilindri Spider diagrams
