Ferrari 12 Cilindri Spider — [MECHANICAL SYSTEM] - D.19 - ACCELERATOR CONTROL (diagram 0068)

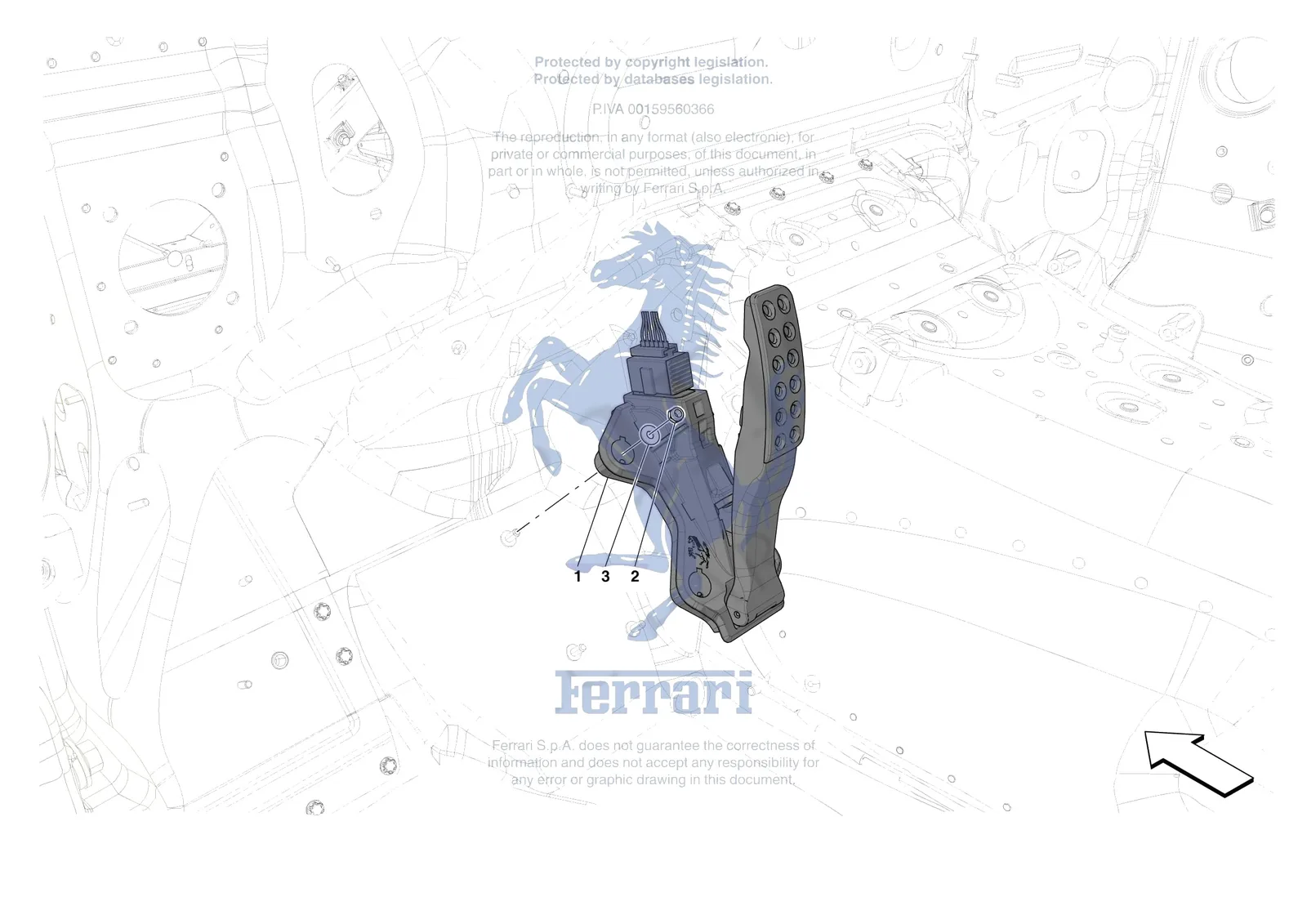

Exploded view of the [mechanical system] - d.19 - accelerator control on the Ferrari 12 Cilindri Spider, with 5 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri Spider [MECHANICAL SYSTEM] - D.19 - ACCELERATOR CONTROL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri-spider/0068.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 12575411 | Ferrari Nyloc Nut M6 x 6 - 12575411 | Superseded | Order 12575421 instead | |
| 1 | 807331 | Ferrari Compl. Floor Hinged Accelerator Pedal - 807331 | $442.56 | Special order, ships in 7-14 days |
| 2 | 12575421 | Ferrari Nyloc Nut M6 x 6 - 12575421 | $0.40 | Available, ships in 3-6 days |
| 2 | 102741 | Ferrari/Maserati Nyloc Nut M6 - 102741 | $0.45 | In stock |
| 3 | 12646624 | Ferrari Washer 6.15-15x1.5 - 12646624 | $0.40 | Available, ships in 3-6 days |
