Ferrari 12 Cilindri Spider — [MECHANICAL SYSTEM] - D.23.01 - HYDRAULIC BRAKE CONTROL PIPES -Not for RHD- (diagram 0072)

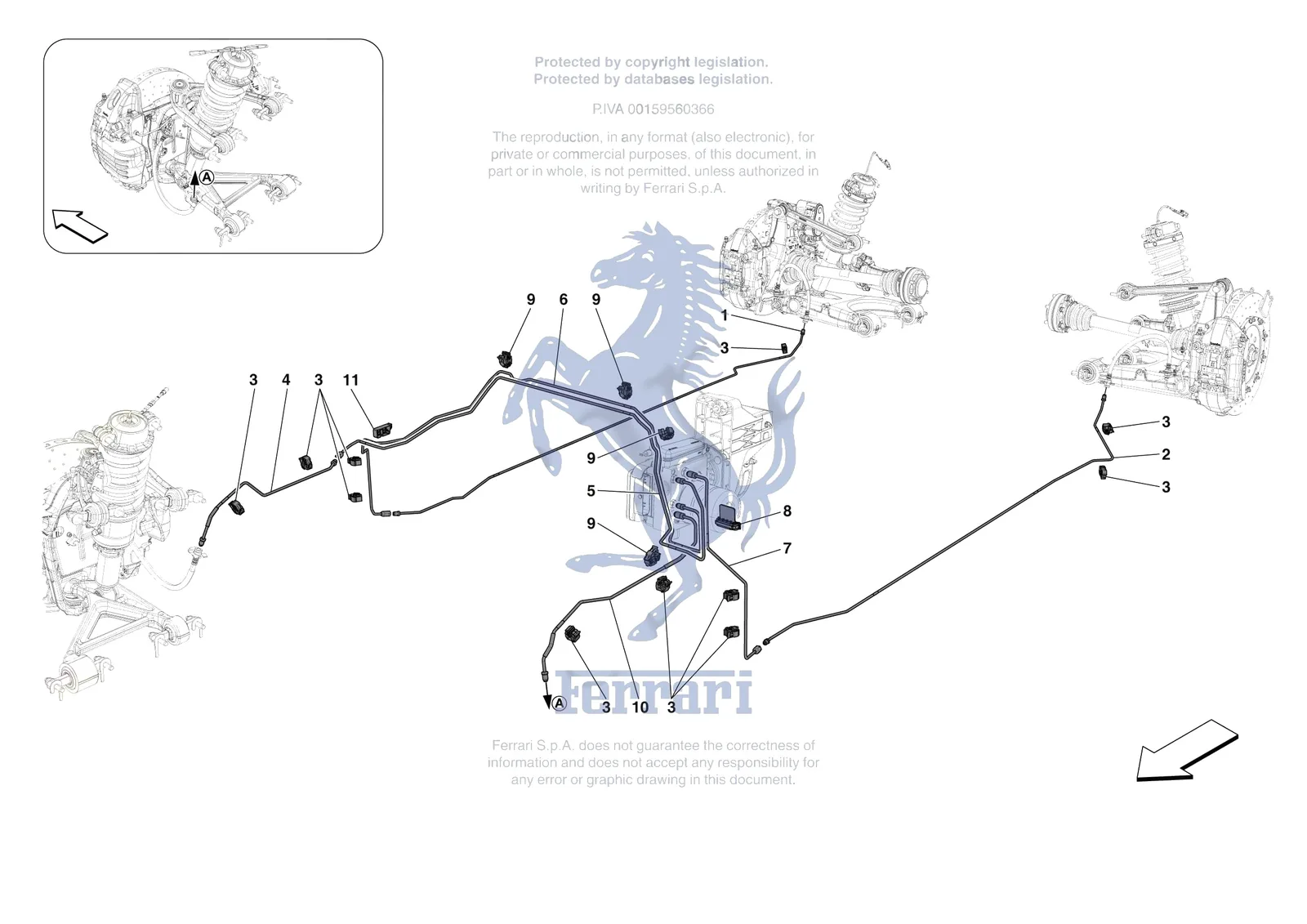

Exploded view of the [mechanical system] - d.23.01 - hydraulic brake control pipes -not for rhd- on the Ferrari 12 Cilindri Spider, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri Spider [MECHANICAL SYSTEM] - D.23.01 - HYDRAULIC BRAKE CONTROL PIPES -Not for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri-spider/0072.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 914241 | Ferrari UNDERBODY REAR RH BRAKE PIPE - 914241 | $120.46 | Special order, ships in 7-14 days |
| 2 | 914242 | Ferrari UNDERBODY REAR LH BRAKE PIPE - 914242 | $117.99 | Special order, ships in 7-14 days |
| 3 | 234284 | Ferrari Clip - 234284 | $1.23 | Available, ships in 3-6 days |
| 4 | 762762 | Ferrari RH FRONT BRAKE PIPE FROM DISCONNECTOR UN - 762762 | $100.78 | Special order, ships in 7-14 days |
| 5 | 782900 | Ferrari RH FRONT BRAKE PIPE FROM IPB TO DISCONNE - 782900 | $154.89 | Special order, ships in 7-14 days |
| 6 | 782877 | Ferrari RH REAR BRAKE PIPE FROM IPB TO DISCONNEC - 782877 | $174.55 | Special order, ships in 7-14 days |
| 7 | 797052 | Ferrari LH REAR BRAKE PIPE FROM IPB TO DISCONNEC - 797052 | $81.11 | Special order, ships in 7-14 days |
| 8 | 254195 | Ferrari Clip - 254195 | $3.03 | Special order, ships in 7-14 days |
| 9 | 234285 | Ferrari Clip - 234285 | $1.40 | Available, ships in 3-6 days |
| 10 | 954590 | Ferrari FRONT LH BRAKE PIPE - 954590 | $113.08 | Special order, ships in 7-14 days |
| 11 | 294207 | Ferrari Clip - 294207 | $11.12 | Special order, ships in 7-14 days |
