Ferrari 12 Cilindri Spider — [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS (diagram 0081)

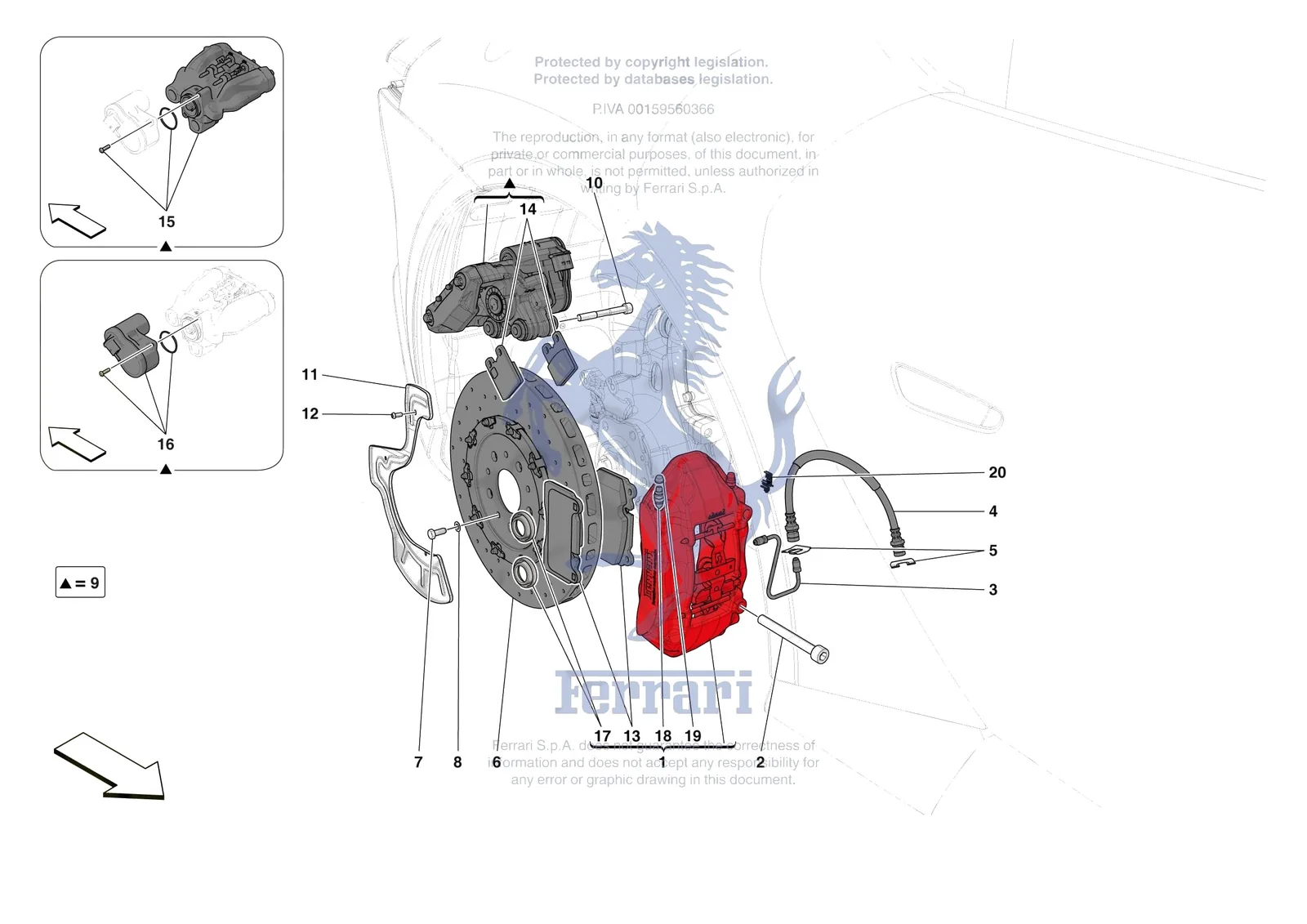

Exploded view of the [mechanical system] - d.27.03 - rear suspension - calipers and discs on the Ferrari 12 Cilindri Spider, with 64 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri Spider [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri-spider/0081.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 335650 | Ferrari Rear RH Calliper With Pads - 335650 | Superseded | Order 829930 instead | |
| 190870 | Ferrari Screw 6x14 - 190870 | $4.10 | Special order, ships in 7-14 days | |
| 70004343 | Ferrari Set Electronic Parking Brake Pads - 70004343 | $1,842.45 | Available, ships in 3-6 days | |
| 1 | 863172 | Ferrari LH REAR CALIPER WITH PADS - 863172 | Price on request | Contact us for price and availability |
| 1 | 863175 | Ferrari LH REAR CALIPER WITH PADS - 863175 | Price on request | Contact us for price and availability |
| 1 | 863179 | Ferrari LH REAR CALIPER WITH PADS - 863179 | Price on request | Contact us for price and availability |
| 1 | 863183 | Ferrari LH REAR CALIPER WITH PADS - 863183 | Price on request | Contact us for price and availability |
| 1 | 863210 | Ferrari LH REAR CALIPER WITH PADS - 863210 | Price on request | Contact us for price and availability |
| 1 | 863214 | Ferrari LH REAR CALIPER WITH PADS - 863214 | Price on request | Contact us for price and availability |
| 1 | 863225 | Ferrari LH REAR CALIPER WITH PADS - 863225 | Price on request | Contact us for price and availability |
| 1 | 863229 | Ferrari LH REAR CALIPER WITH PADS - 863229 | Price on request | Contact us for price and availability |
| 1 | 863278 | Ferrari LH REAR CALIPER WITH PADS - 863278 | Price on request | Contact us for price and availability |
| 1 | 829677 | Ferrari Rear LH Calliper With Pads - 829677 | $3,236.76 | Special order, ships in 7-14 days |
| 1 | 829878 | Ferrari Rear LH Calliper With Pads - 829878 | $3,332.52 | Special order, ships in 7-14 days |
| 1 | 829882 | Ferrari Rear LH Calliper With Pads - 829882 | $3,467.82 | Special order, ships in 7-14 days |
| 1 | 829885 | Ferrari Rear LH Calliper With Pads - 829885 | $3,648.91 | Special order, ships in 7-14 days |
| 1 | 829886 | Ferrari Rear LH Calliper With Pads - 829886 | $3,648.91 | Special order, ships in 7-14 days |
| 1 | 829888 | Ferrari Rear LH Calliper With Pads - 829888 | $3,648.91 | Special order, ships in 7-14 days |
| 1 | 829889 | Ferrari Rear LH Calliper With Pads - 829889 | $4,213.00 | Special order, ships in 7-14 days |
| 1 | 829891 | Ferrari Rear LH Calliper With Pads - 829891 | $3,648.91 | Special order, ships in 7-14 days |
| 1 | 829893 | Ferrari Rear LH Calliper With Pads - 829893 | $4,213.00 | Special order, ships in 7-14 days |
| 1 | 829922 | Ferrari Rear RH Calliper With Pads - 829922 | $3,467.82 | Special order, ships in 7-14 days |
| 1 | 829923 | Ferrari Rear RH Calliper With Pads - 829923 | $3,648.91 | Special order, ships in 7-14 days |
| 1 | 829924 | Ferrari Rear RH Calliper With Pads - 829924 | $3,648.91 | Special order, ships in 7-14 days |
| 1 | 829925 | Ferrari Rear RH Calliper With Pads - 829925 | $3,648.91 | Special order, ships in 7-14 days |
| 1 | 829926 | Ferrari Rear RH Calliper With Pads - 829926 | $4,213.00 | Special order, ships in 7-14 days |
| 1 | 829927 | Ferrari Rear RH Calliper With Pads - 829927 | $3,648.91 | Special order, ships in 7-14 days |
| 1 | 829928 | Ferrari Rear RH Calliper With Pads - 829928 | $4,213.00 | Special order, ships in 7-14 days |
| 1 | 829930 | Ferrari Rear RH Calliper With Pads - 829930 | $3,236.76 | Special order, ships in 7-14 days |
| 1 | 829931 | Ferrari Rear RH Calliper With Pads - 829931 | $3,332.52 | Special order, ships in 7-14 days |
| 1 | 863173 | Ferrari RH REAR CALIPER WITH PADS - 863173 | Price on request | Contact us for price and availability |
| 1 | 863177 | Ferrari RH REAR CALIPER WITH PADS - 863177 | Price on request | Contact us for price and availability |
| 1 | 863181 | Ferrari RH REAR CALIPER WITH PADS - 863181 | Price on request | Contact us for price and availability |
| 1 | 863201 | Ferrari RH REAR CALIPER WITH PADS - 863201 | Price on request | Contact us for price and availability |
| 1 | 863212 | Ferrari RH REAR CALIPER WITH PADS - 863212 | Price on request | Contact us for price and availability |
| 1 | 863216 | Ferrari RH REAR CALIPER WITH PADS - 863216 | Price on request | Contact us for price and availability |
| 1 | 863227 | Ferrari RH REAR CALIPER WITH PADS - 863227 | Price on request | Contact us for price and availability |
| 1 | 863264 | Ferrari RH REAR CALIPER WITH PADS - 863264 | Price on request | Contact us for price and availability |
| 1 | 863281 | Ferrari RH REAR CALIPER WITH PADS - 863281 | Price on request | Contact us for price and availability |
| 2 | 196837 | Ferrari Screw M12 x 1.5 x 105 - 196837 | $33.28 | Available, ships in 3-6 days |
| 3 | 338397 | Ferrari Tubo Freno Da Pinza A Flex.D - 338397 | $51.62 | Special order, ships in 7-14 days |
| 3 | 338396 | Ferrari Tubo Freno Da Pinza A Flex.S - 338396 | $51.62 | Special order, ships in 7-14 days |
| 4 | 977797 | Ferrari Brake Hose 330 mm - 977797 | $100.78 | Available, ships in 3-6 days |
| 5 | 116374 | Ferrari/Maserati Clip - 116374 | $3.20 | In stock |
| 6 | 779769 | Ferrari Disco Freno 360X32 Ccm-Igc- - 779769 | $9,153.14 | Special order, ships in 7-14 days |
| 7 | 228131 | Ferrari Screw M8 x 20 - 228131 | $1.53 | Available, ships in 3-6 days |
| 8 | 228132 | Ferrari Spring Washer - 228132 | $0.59 | Available, ships in 3-6 days |
| 9 | 764096 | Ferrari LH Calliper - 764096 | $1,901.45 | Special order, ships in 7-14 days |
| 9 | 764097 | Ferrari RH Epb Calliper - 764097 | $1,901.45 | Special order, ships in 7-14 days |
| 10 | 338792 | Ferrari Screw - 338792 | $5.44 | Special order, ships in 7-14 days |
| 11 | 338391 | Ferrari LH Rear Disc Shield - 338391 | $90.95 | Special order, ships in 7-14 days |
| 11 | 338392 | Ferrari RH Rear Disc Shield - 338392 | $90.95 | Special order, ships in 7-14 days |
| 12 | 250657 | Ferrari Screw M6 x 14 TBTX - 250657 | $13.36 | Available, ships in 3-6 days |
| 13 | 70004286 | Ferrari Rear Pad Set With Spring - 70004286 | $2,761.00 | Available, ships in 3-6 days |
| 13 | 851788 | Ferrari Rear Pad Set With Spring - 851788 | $3,366.60 | Special order, ships in 7-14 days |
| 14 | 70006840 | Ferrari Set Electronic Parking Brake Pads - 70006840 | $1,924.47 | Available, ships in 3-6 days |
| 15 | 70007290 | Ferrari LH EPB CALLIPER BODY - 70007290 | Price on request | Contact us for price and availability |
| 15 | 70007291 | Ferrari RH EPB CALLIPER BODY - 70007291 | Price on request | Contact us for price and availability |
| 16 | 70006841 | Ferrari LH GEAR MOTOR SPARE PARTS KIT - 70006841 | $500.40 | Special order, ships in 7-14 days |
| 16 | 70007153 | Ferrari RH GEAR MOTOR SPARE PARTS KIT - 70007153 | $502.67 | Special order, ships in 7-14 days |
| 17 | 70004901 | Ferrari Rear Dust Gaiter Kit - 70004901 | $186.84 | Special order, ships in 7-14 days |
| 18 | 215665 | Ferrari Bleed Nipple Valve - 215665 | $78.66 | Available, ships in 3-6 days |
| 19 | 215666 | Ferrari Cap For Bleed Nipple - 215666 | $51.62 | Available, ships in 3-6 days |
| 20 | 291408 | Ferrari Clip - 291408 | $0.34 | Special order, ships in 7-14 days |
