Ferrari 12 Cilindri Spider — [MECHANICAL SYSTEM] - D.37 - PLATES (diagram 0092)

Exploded view of the [mechanical system] - d.37 - plates on the Ferrari 12 Cilindri Spider, with 47 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

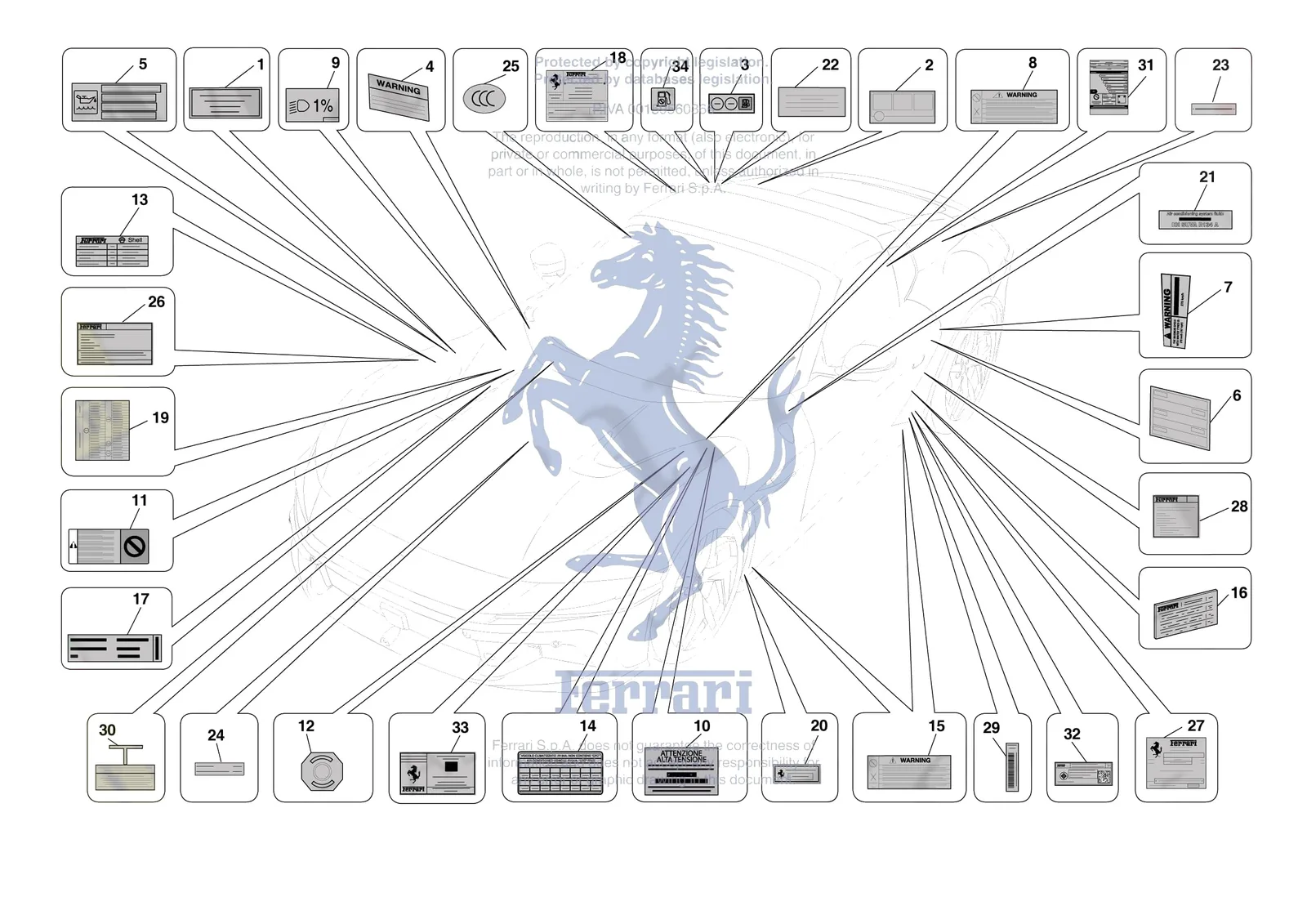

Ferrari 12 Cilindri Spider [MECHANICAL SYSTEM] - D.37 - PLATES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
255167Ferrari Engine Oil Check Label - 255167SupersededOrder 262089 instead
256569Ferrari Engine Oil Check Label - 256569SupersededOrder 262090 instead
258126Ferrari Engine Oil Check Label - 258126SupersededOrder 262089 instead
783963Ferrari Label For Vehicle With Air C - 783963SupersededOrder 55046739 instead
234909Ferrari Oil Level Check Plate - 234909$13.93Special order, ships in 7-14 days
245897Ferrari Oil Level Check Plate - 245897SupersededOrder 262090 instead
269475Ferrari Polyester S&S Warning Label - 269475SupersededOrder 281805 instead
295138Ferrari Polyester S&S Warning Label - 295138$22.50Special order, ships in 7-14 days
269267Ferrari S&S Warning Label - 269267SupersededOrder 281806 instead
295139Ferrari S&S Warning Label - 295139SupersededOrder 281806 instead
987670Ferrari Tyre Pressure Label Micheli - 987670SupersededOrder 55044923 instead
1258127Ferrari GlycoShell Radiator Antifreeze Label - 258127$11.85In stock
1297529Ferrari Radiator Contains Antifreeze Label - 297529$11.35Available, ships in 3-6 days
2304914Ferrari Filling Procedure Instruction Label - 304914$14.47Special order, ships in 7-14 days
2308953Ferrari Filling Procedure Instruction Label - 308953$58.98Special order, ships in 7-14 days
3829199Ferrari 'Fuels' Label - 829199$5.14Special order, ships in 7-14 days
4303010Ferrari Warning Label On Terminal Clamp - 303010$12.02Special order, ships in 7-14 days
5262089Ferrari Oil Level Check Plate - 262089$20.56Available, ships in 3-6 days
5262090Ferrari Oil Level Check Plate - 262090$120.46Special order, ships in 7-14 days
6194621Ferrari Tyre Pressure Warning Label - 194621$36.86Special order, ships in 7-14 days
6218182Ferrari Tyre Pressure Warning Label - 218182$110.61Special order, ships in 7-14 days
7293457Ferrari Max Speed With Winter Tyres Label - 293457$29.48Special order, ships in 7-14 days
8281805Ferrari Polyester S&S Warning Label - 281805$27.82Available, ships in 3-6 days
9180092Ferrari Low Beam Approval Label - 180092$1.84Available, ships in 3-6 days
10279667Ferrari High Voltage Warning Label - 279667$24.55Special order, ships in 7-14 days
10284515Ferrari High Voltage Warning Label - 284515$115.54Special order, ships in 7-14 days
11839567Ferrari Lithium Battery Label - 839567$22.85Special order, ships in 7-14 days
11839821Ferrari Lithium Battery Label - 839821$41.76Special order, ships in 7-14 days
12160889Ferrari Brake Fluid Reservoir Label - 160889$5.39Available, ships in 3-6 days
12980009Ferrari Targh. Adesiva Avvertenze Ol - 980009$20.62Special order, ships in 7-14 days
13924199Ferrari Adhesive Label Specifying En - 924199$29.48Special order, ships in 7-14 days
13924201Ferrari Engine/Gearbox Oil Specification Label - 924201$12.52Special order, ships in 7-14 days
1455046739Ferrari Label For Vehicle With Air C - 55046739$15.72Special order, ships in 7-14 days
15281806Ferrari S&S Warning Label - 281806$51.62Special order, ships in 7-14 days
16987671Ferrari 21 Goodyear Tyre Pressure La - 987671$46.69Special order, ships in 7-14 days
16987672Ferrari 21 Goodyear Tyre Pressure La - 987672$31.93Special order, ships in 7-14 days
16987677Ferrari 21 Goodyear Tyre Pressure La - 987677$68.83Special order, ships in 7-14 days
16987678Ferrari 21 Goodyear Tyre Pressure La - 987678$762.20Special order, ships in 7-14 days
16990227Ferrari 21 Goodyear Tyre Pressure La - 990227$86.04Special order, ships in 7-14 days
1655044923Ferrari Tyre Pressure Label Micheli - 55044923$31.93Special order, ships in 7-14 days
16987676Ferrari Tyre Pressure Label Micheli - 987676$68.83Special order, ships in 7-14 days
16990221Ferrari Tyre Pressure Label Micheli - 990221$86.04Special order, ships in 7-14 days
17255003Ferrari Radiator Label - 255003$41.76Special order, ships in 7-14 days
21294454Ferrari Air Con System Label - 294454$49.14Special order, ships in 7-14 days
22768347Ferrari Fuel Indication Label - 768347$21.60Special order, ships in 7-14 days
28334592Ferrari Mercury Content Label - 334592Price on requestContact us for price and availability
3412858780Ferrari Adhesive Unleaded Petrol/Gasoline Label - 12858780$6.11Special order, ships in 7-14 days
