Ferrari 12 Cilindri Spider — [MECHANICAL SYSTEM] - D.38 - TOOLS PROVIDED WITH VEHICLE (diagram 0093)

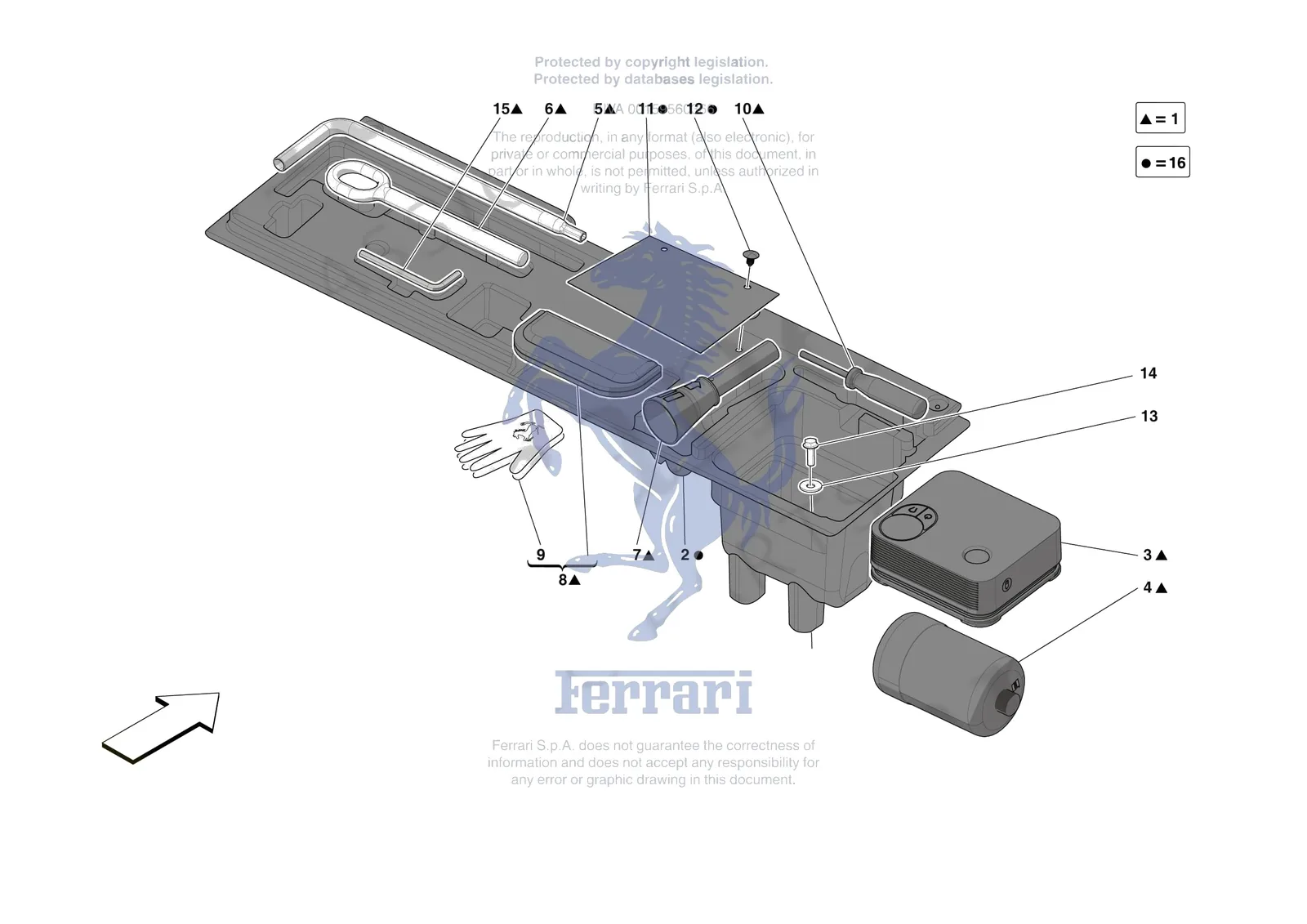

Exploded view of the [mechanical system] - d.38 - tools provided with vehicle on the Ferrari 12 Cilindri Spider, with 23 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri Spider [MECHANICAL SYSTEM] - D.38 - TOOLS PROVIDED WITH VEHICLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri-spider/0093.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 280164 | Ferrari Tyre Repair Kit Complete - 280164 | Superseded | Order 336277 instead | |
| 12643707 | Ferrari Washer - 12643707 | Superseded | Order 12643778 instead | |
| 12643777 | Ferrari Washer - 12643777 | Superseded | Order 12643778 instead | |
| 1 | 55061543 | Ferrari Tool Kit Set - 55061543 | $1,008.09 | Special order, ships in 7-14 days |
| 1 | 55061550 | Ferrari Tool Kit Set - 55061550 | $491.74 | Special order, ships in 7-14 days |
| 1 | 823676 | Ferrari Tool Kit Set - 823676 | $983.50 | Special order, ships in 7-14 days |
| 1 | 870965 | Ferrari Tool Kit Set - 870965 | $467.15 | Special order, ships in 7-14 days |
| 2 | 823636 | Ferrari Tool Kit Tray - 823636 | $295.03 | Special order, ships in 7-14 days |
| 3 | 336277 | Ferrari Tyre Repair Kit Complete - 336277 | $319.62 | Special order, ships in 7-14 days |
| 4 | 322481 | Ferrari Repair Kit Refill Bottle - 322481 | $204.05 | Available, ships in 3-6 days |
| 5 | 343204 | Ferrari P. Lock and RHT Release Tool - 343204 | $83.57 | Special order, ships in 7-14 days |
| 6 | 155838 | Ferrari Tow Hook - 155838 | $98.87 | In stock |
| 7 | 260763 | Ferrari Emergency Refuelling Funnel - 260763 | $61.99 | Available, ships in 3-6 days |
| 8 | 65253000 | Ferrari Accessory Holder Wallet Complete - 65253000 | $179.46 | Special order, ships in 7-14 days |
| 9 | 65253300 | Ferrari White Gloves - 65253300 | $49.28 | In stock |
| 10 | 225020 | Ferrari Screwdriver - 225020 | $56.52 | Special order, ships in 7-14 days |
| 11 | 341813 | Ferrari DCT RELEASE PRECAUTIONS LABEL - 341813 | $34.40 | Special order, ships in 7-14 days |
| 12 | 83222200 | Ferrari Fastener Button - 83222200 | $1.42 | Available, ships in 3-6 days |
| 13 | 12643778 | Ferrari Washer 6-18 x 1.5 - 12643778 | $0.54 | Available, ships in 3-6 days |
| 14 | 16281827 | Ferrari Screw 5x14 - 16281827 | $0.46 | Special order, ships in 7-14 days |
| 14 | 16285227 | Ferrari Screw M5 x 20 - 16285227 | $0.59 | Available, ships in 3-6 days |
| 15 | 14534279 | Ferrari Chiave Maschio Esagonale Pie - 14534279 | $72.10 | Special order, ships in 7-14 days |
| 16 | 921846 | Ferrari Complete Tool Kit Tray - 921846 | $167.17 | Special order, ships in 7-14 days |
