Ferrari 12 Cilindri Spider — [VEHICLE TRIM] - E.01.03 - STRUCTURES AND ELEMENTS REAR OF VEHICLE (diagram 0097)

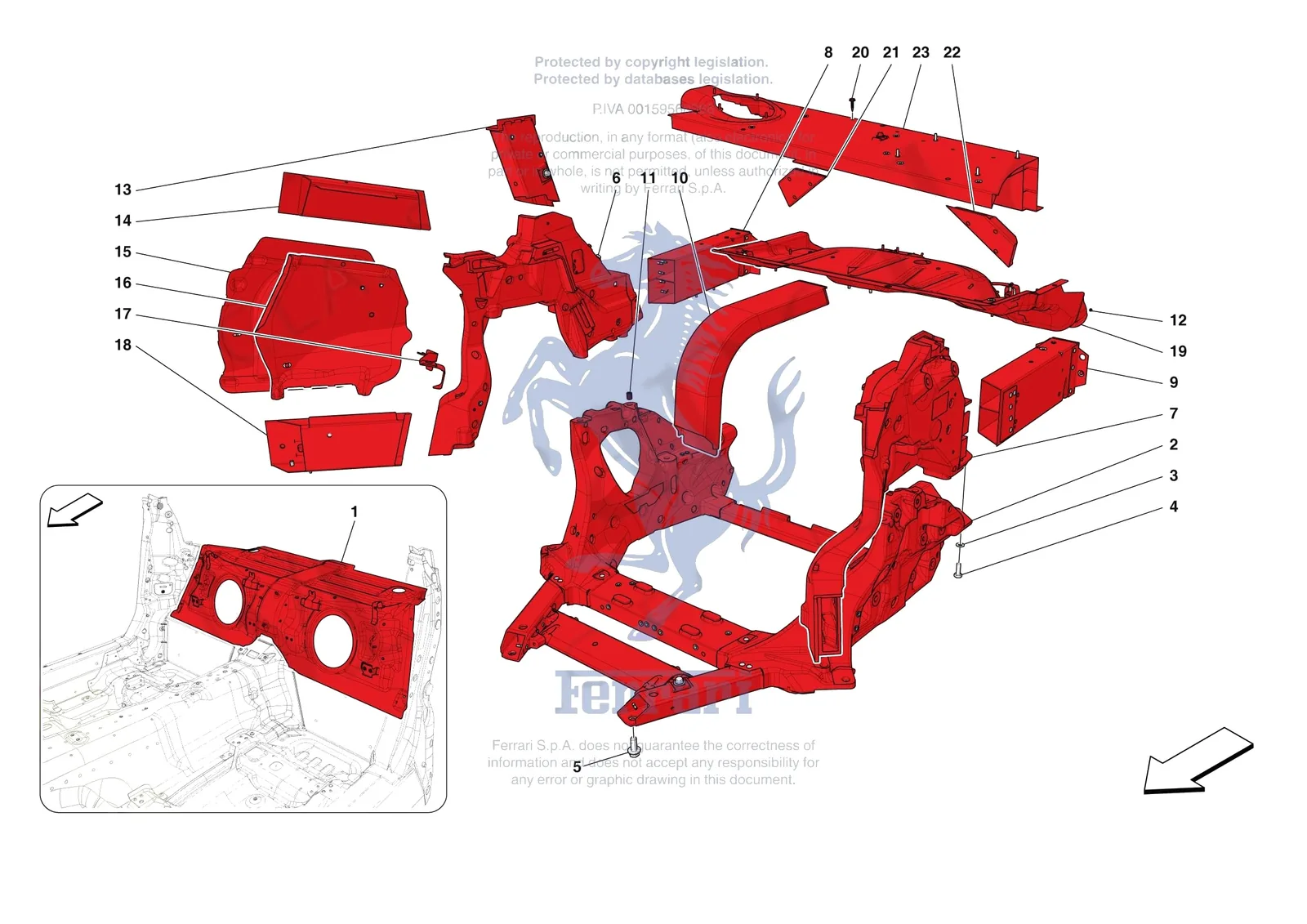

Exploded view of the [vehicle trim] - e.01.03 - structures and elements rear of vehicle on the Ferrari 12 Cilindri Spider, with 34 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri Spider [VEHICLE TRIM] - E.01.03 - STRUCTURES AND ELEMENTS REAR OF VEHICLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri-spider/0097.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 985832489 | Ferrari Rear LH Strut - 985832489 | $2,204.29 | Special order, ships in 7-14 days | |
| 985861869 | Ferrari Rear LH Strut - 985861869 | Superseded | Order 985832489 instead | |
| 985832490 | Ferrari Rear RH Strut - 985832490 | $2,157.38 | Special order, ships in 7-14 days | |
| 128944 | Ferrari Washer D10.2-20 - 128944 | $3.68 | Available, ships in 3-6 days | |
| 1 | 985970720 | Ferrari TANK COVER PANEL - 985970720 | Price on request | Contact us for price and availability |
| 2 | 985884953 | Ferrari REAR SUBFRAME - 985884953 | Price on request | Contact us to order |
| 3 | 13550424 | Ferrari Washer - 13550424 | $0.31 | Available, ships in 3-6 days |
| 3 | 13550401 | Ferrari Washer 10.2-20x2 - 13550401 | $0.31 | Available, ships in 3-6 days |
| 4 | 11306934 | Ferrari Screw M10 x 1.25 x 30 - 11306934 | $1.04 | Available, ships in 3-6 days |
| 5 | 16289834 | Ferrari Screw Flanged M12 x 1.25 x 30 - 16289834 | $2.82 | Available, ships in 3-6 days |
| 6 | 985970753 | Ferrari COMPL. RH RSTU - 985970753 | Price on request | Contact us for price and availability |
| 7 | 985970799 | Ferrari COMPL. LH RSTU - 985970799 | Price on request | Contact us for price and availability |
| 8 | 985861872 | Ferrari Rear RH Strut - 985861872 | $1,696.56 | Special order, ships in 7-14 days |
| 9 | 985978759 | Ferrari Rear LH Strut - 985978759 | Superseded | Order 985832489 instead |
| 10 | 985873993 | Ferrari CENTRE REAR BENCH REINFORCEMENT - 985873993 | Price on request | Contact us for price and availability |
| 11 | 252200 | Ferrari Threaded Insert - 252200 | $18.32 | Special order, ships in 7-14 days |
| 12 | 742494 | Ferrari Rivet - 742494 | $3.26 | Special order, ships in 7-14 days |
| 13 | 985983802 | Ferrari COMPL. LH VERTICAL EXTRUDED ELEMENT - 985983802 | Price on request | Contact us for price and availability |
| 13 | 985983804 | Ferrari COMPL. RH VERTICAL EXTRUDED ELEMENT - 985983804 | Price on request | Contact us for price and availability |
| 14 | 985980451 | Ferrari COMPL. LH UPPER REAR DIAGONAL BRACE - 985980451 | Price on request | Contact us for price and availability |
| 14 | 985980525 | Ferrari COMPL. RH UPPER REAR DIAGONAL BRACE - 985980525 | Price on request | Contact us for price and availability |
| 15 | 985873842 | Ferrari COMPL. LH OUTER FLANK - 985873842 | Price on request | Contact us for price and availability |
| 15 | 985873957 | Ferrari COMPL. RH OUTER FLANK - 985873957 | Price on request | Contact us for price and availability |
| 16 | 985873817 | Ferrari COMPL. LH INNER FLANK - 985873817 | Price on request | Contact us for price and availability |
| 16 | 985873840 | Ferrari COMPL. RH INNER FLANK - 985873840 | Price on request | Contact us for price and availability |
| 17 | 873816 | Ferrari REAR LH BRAKE BRACKET - 873816 | Price on request | Contact us for price and availability |
| 17 | 874062 | Ferrari REAR RH BRAKE BRACKET - 874062 | Price on request | Contact us for price and availability |
| 18 | 985873781 | Ferrari COMPL. LOWER LH REAR DIAGONAL BRACE - 985873781 | Price on request | Contact us for price and availability |
| 18 | 985874060 | Ferrari COMPL. LOWER RH REAR DIAGONAL BRACE - 985874060 | Price on request | Contact us for price and availability |
| 19 | 985940060 | Ferrari SPARE WHEEL TUB - 985940060 | Price on request | Contact us for price and availability |
| 20 | 330777 | Ferrari Ejoform Fds M5X25 - 330777 | $8.72 | Special order, ships in 7-14 days |
| 21 | 985337557 | Ferrari RH K-Brace - 985337557 | $1,008.09 | Special order, ships in 7-14 days |
| 22 | 985337556 | Ferrari LH K-Brace - 985337556 | $1,008.09 | Special order, ships in 7-14 days |
| 23 | 985784626 | Ferrari REAR CROSS MEMBER - 985784626 | Price on request | Contact us for price and availability |
