Ferrari 12 Cilindri Spider — [VEHICLE TRIM] - E.02 - LATERAL OUTER BODYSHELL (diagram 0098)

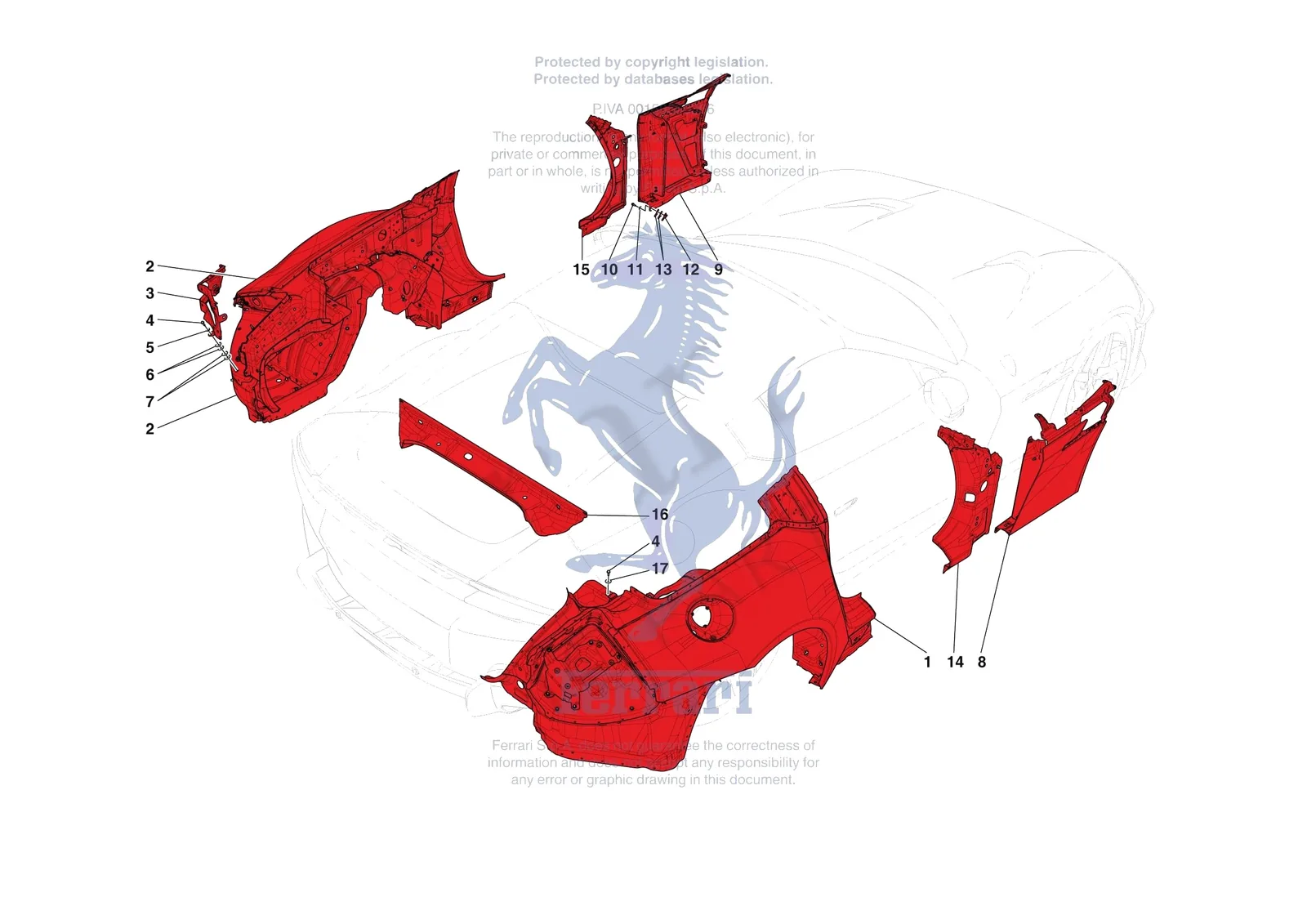

Exploded view of the [vehicle trim] - e.02 - lateral outer bodyshell on the Ferrari 12 Cilindri Spider, with 23 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri Spider [VEHICLE TRIM] - E.02 - LATERAL OUTER BODYSHELL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri-spider/0098.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 900885 | Ferrari Adjustment Shim - 900885 | Superseded | Order 87583800 instead | |
| 921747 | Ferrari Spess.Curvo Di Regolaz.A For - 921747 | Superseded | Order 87583800 instead | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 985992837 | Ferrari RH FLANK - 985992837 | $38,321.33 | Contact us to order |
| 2 | 985992831 | Ferrari LH FLANK - 985992831 | $38,135.59 | Contact us to order |
| 3 | 985778372 | Ferrari Compl. LH Light Unit Carrier - 985778372 | $835.97 | Special order, ships in 7-14 days |
| 3 | 985773736 | Ferrari Compl. RH Light Unit Carrier - 985773736 | $835.97 | Special order, ships in 7-14 days |
| 4 | 16285127 | Ferrari Screw M5 x 16 - 16285127 | $1.05 | Special order, ships in 7-14 days |
| 5 | 12644424 | Ferrari Washer 6.15-15 x 1 - 12644424 | $0.12 | Available, ships in 3-6 days |
| 6 | 977040 | Ferrari Washer - 977040 | $3.91 | Special order, ships in 7-14 days |
| 7 | 990737 | Ferrari WASHER - 990737 | Price on request | Contact us for price and availability |
| 8 | 985773908 | Ferrari Compl. Outer Skin Of RH Fron - 985773908 | $7,360.29 | Special order, ships in 7-14 days |
| 9 | 985773923 | Ferrari Compl. Outer Skin Of LH Fron - 985773923 | $7,360.29 | Special order, ships in 7-14 days |
| 10 | 16286121 | Ferrari Screw M6 x 20 - 16286121 | $1.23 | Available, ships in 3-6 days |
| 11 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 12 | 856009 | Ferrari Adjustment Shim 0.6mm - 856009 | $13.49 | Special order, ships in 7-14 days |
| 13 | 87583800 | Ferrari Adjuster Shim 1.0mm - 87583800 | $3.68 | Special order, ships in 7-14 days |
| 14 | 985992760 | Ferrari COMPL. RH OUTER PILLAR COVER TRIM FOR LOWER SECTION - 985992760 | Price on request | Contact us for price and availability |
| 15 | 985992759 | Ferrari COMPL. LH OUTER PILLAR COVER TRIM FOR LOWER SECTION - 985992759 | Price on request | Contact us for price and availability |
| 16 | 985996478 | Ferrari COMPL. LUGGAGE COMPARTMENT CHANNEL COVER - 985996478 | Price on request | Contact us for price and availability |
| 17 | 12647724 | Ferrari Washer - 12647724 | $0.31 | Available, ships in 3-6 days |
