Ferrari 12 Cilindri Spider — [VEHICLE TRIM] - E.05 - FRONT SUBSTRUCTURE (diagram 0101)

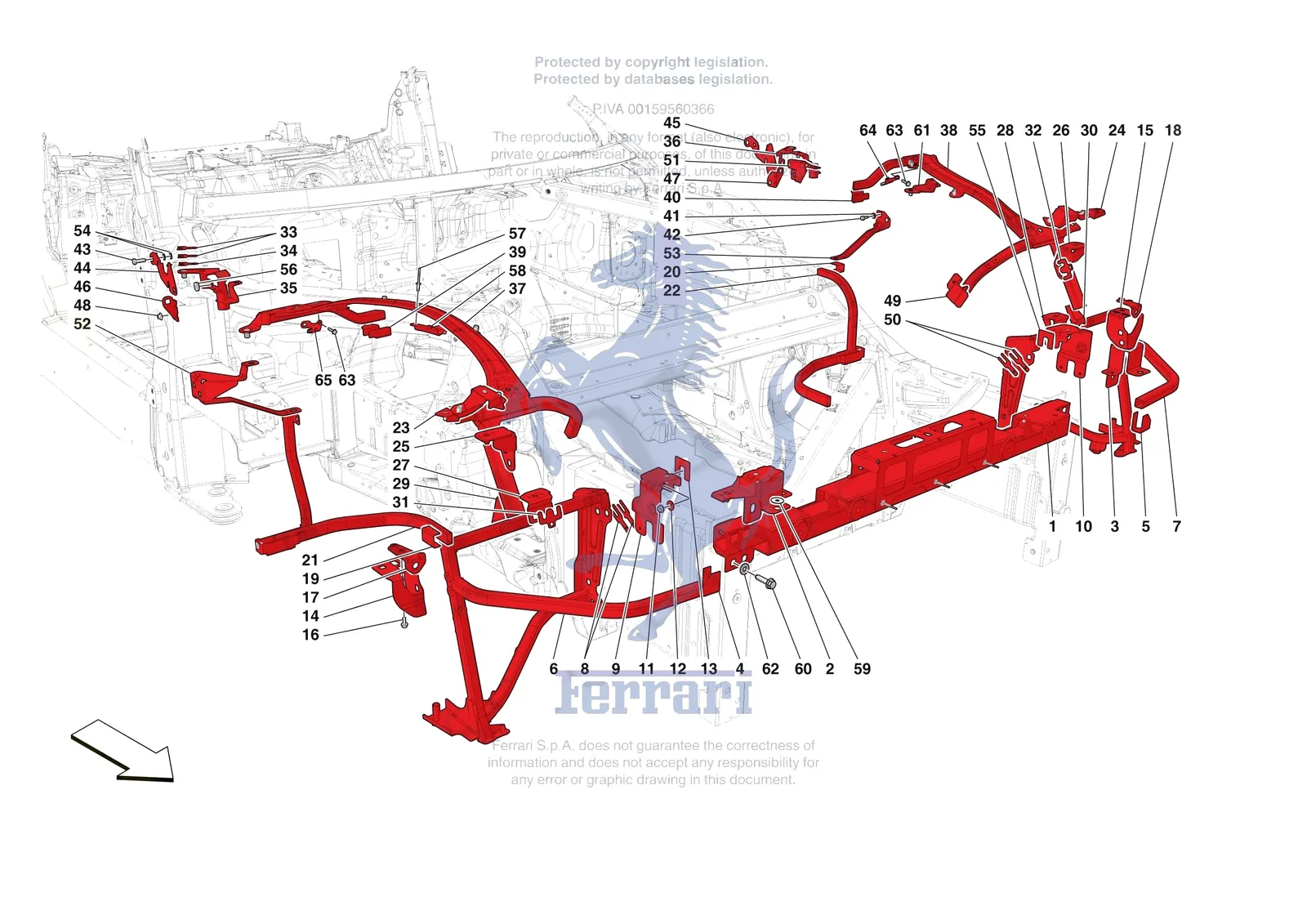

Exploded view of the [vehicle trim] - e.05 - front substructure on the Ferrari 12 Cilindri Spider, with 85 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 12 Cilindri Spider [VEHICLE TRIM] - E.05 - FRONT SUBSTRUCTURE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
900885Ferrari Adjustment Shim - 900885SupersededOrder 87583800 instead
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
106526Ferrari Bolt - 106526SupersededOrder 16043624 instead
16043611Ferrari Bolt - 16043611SupersededOrder 16043624 instead
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
16043621Ferrari Screw - 16043621SupersededOrder 16043624 instead
921747Ferrari Spess.Curvo Di Regolaz.A For - 921747SupersededOrder 87583800 instead
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
14498804Ferrari Washer - 14498804SupersededOrder 14498824 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
1985818169Ferrari Compl. Bumper Shelf Cross Me - 985818169$3,151.95Special order, ships in 7-14 days
2776386Ferrari Compl. RH Front Bumper Shelf - 776386$108.16Special order, ships in 7-14 days
3776844Ferrari Compl. LH Front Bumper Shelf - 776844$108.16Special order, ships in 7-14 days
4775979Ferrari RH Front Adjustment Bracket - 775979$19.65Special order, ships in 7-14 days
5775980Ferrari LH Front Adjustment Bracket - 775980$19.65Special order, ships in 7-14 days
6985777524Ferrari Compl. RH Radiator Trellis - 985777524$1,770.31Special order, ships in 7-14 days
7985778894Ferrari Compl. LH Radiator Trellis - 985778894$1,770.31Special order, ships in 7-14 days
8887114Ferrari Shim - 887114$12.52Special order, ships in 7-14 days
9777525Ferrari Compl. RH Front Lid Stay Fas - 777525$83.57Special order, ships in 7-14 days
10778896Ferrari Compl. LH Front Lid Stay Fas - 778896$83.57Special order, ships in 7-14 days
1114059214Ferrari Flanged Nut M6 - 14059214$0.38Available, ships in 3-6 days
1212643724Ferrari/Maserati Washer - 12643724$0.20In stock
13242224Ferrari Spacer 1.0mm - 242224$5.19Special order, ships in 7-14 days
1384651000Ferrari Spacer 1.0mm - 84651000$6.96Special order, ships in 7-14 days
14777545Ferrari RH Bumper Bracket - 777545$58.98Special order, ships in 7-14 days
15778927Ferrari LH Bumper Bracket - 778927$58.98Special order, ships in 7-14 days
1616281827Ferrari Screw 5x14 - 16281827$0.46Special order, ships in 7-14 days
17775964Ferrari Compl. RH Outer Lateral Brac - 775964$31.93Special order, ships in 7-14 days
18776221Ferrari Compl. LH Outer Lateral Brac - 776221$31.93Special order, ships in 7-14 days
19775981Ferrari RH Tubular Element Fastener - 775981$15.47Special order, ships in 7-14 days
20775982Ferrari LH Tubular Element Fastener - 775982$19.65Special order, ships in 7-14 days
21985820510Ferrari Compl. RH Chassis Connector - 985820510$516.33Special order, ships in 7-14 days
22985820572Ferrari COMPL. LH CHASSIS CONNECTOR EXTRUSION - 985820572$758.79Special order, ships in 7-14 days
23966225Ferrari Compl. Front RH Bush Bracket - 966225$149.96Special order, ships in 7-14 days
24966189Ferrari Compl. Front LH Bush Bracket - 966189$149.96Special order, ships in 7-14 days
25776509Ferrari Compl. Upper Fastener Bracke - 776509$76.19Special order, ships in 7-14 days
26776776Ferrari Compl. Upper Fastener Bracke - 776776$78.66Special order, ships in 7-14 days
27776459Ferrari Compl. Lower Fastener Bracke - 776459$73.73Special order, ships in 7-14 days
28776500Ferrari Compl. Lower Fastener Bracke - 776500$73.73Special order, ships in 7-14 days
29781874Ferrari RH Bracket - 781874$16.69Special order, ships in 7-14 days
30783525Ferrari LH Bracket - 783525$16.69Special order, ships in 7-14 days
31242255Ferrari Shim 1.0mm - 242255$6.94Special order, ships in 7-14 days
3189143000Ferrari Shim 1.0mm Interasse 25Mm - 89143000$12.44Special order, ships in 7-14 days
32242256Ferrari Shim 2.0mm - 242256$12.21Special order, ships in 7-14 days
3289143100Ferrari Shim 2.0mm Interasse 25Mm - 89143100$13.74Special order, ships in 7-14 days
3387583800Ferrari Adjuster Shim 1.0mm - 87583800$3.68Special order, ships in 7-14 days
34856009Ferrari Adjustment Shim 0.6mm - 856009$13.49Special order, ships in 7-14 days
35776430Ferrari Compl. LH Bush External Brac - 776430$162.25Special order, ships in 7-14 days
36776455Ferrari Compl. RH Bush External Brac - 776455$162.25Special order, ships in 7-14 days
37985919695Ferrari Compl. RH Front Fender Mount - 985919695$1,524.44Special order, ships in 7-14 days
38985915120Ferrari Compl. LH Front Fender Mount - 985915120$1,499.85Special order, ships in 7-14 days
39776175Ferrari RH Cable Retainer Bracket - 776175$22.85Special order, ships in 7-14 days
40776190Ferrari LH Cable Retainer Bracket - 776190$22.85Special order, ships in 7-14 days
4114498824Ferrari Washer D. 6.4 - 16.3 - 14498824$0.27Available, ships in 3-6 days
4216286121Ferrari Screw M6 x 20 - 16286121$1.23Available, ships in 3-6 days
4316043624Ferrari Screw - 16043624$0.85In stock
44787245Ferrari RH Front Lid Lock Mounting P - 787245$41.76Special order, ships in 7-14 days
45787248Ferrari LH Front Lid Lock Mounting P - 787248$41.76Special order, ships in 7-14 days
46783198Ferrari REAR FASTENER BRACKET OF RH DOOR JAMB - 783198Price on requestContact us for price and availability
47775985Ferrari REAR FASTENER BRACKET OF LH DOOR JAMB - 775985Price on requestContact us for price and availability
4814039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
49776792Ferrari Compl. Bracket For Fender Co - 776792$58.98Special order, ships in 7-14 days
50887113Ferrari Shim - 887113$11.77Special order, ships in 7-14 days
51776826Ferrari Cpl. Bowden Cable Splitter B - 776826$66.35Special order, ships in 7-14 days
51986869Ferrari Cpl. Bowden Cable Splitter B - 986869$76.19Special order, ships in 7-14 days
52775988Ferrari RH Front Fender Fastener Bra - 775988$117.99Special order, ships in 7-14 days
53782874Ferrari LH Front Fender Fastener Bra - 782874$66.35Special order, ships in 7-14 days
5412646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
55242223Ferrari Spacer 0.5mm - 242223$4.98Special order, ships in 7-14 days
55980674Ferrari Spacer 0.5mm - 980674$7.84Special order, ships in 7-14 days
5612625221Ferrari Washer - 12625221$0.17Available, ships in 3-6 days
5612625224Ferrari Washer - 12625224$0.13Available, ships in 3-6 days
57878890Ferrari Rivet - 878890$1.30Special order, ships in 7-14 days
5855001867Ferrari Compl. RH Fastener Bracket - 55001867$73.73Special order, ships in 7-14 days
5912647724Ferrari Washer - 12647724$0.31Available, ships in 3-6 days
6083743800Ferrari Screw - 83743800$3.47Available, ships in 3-6 days
6155001866Ferrari COMPL. LH FASTENER BRACKET - 55001866$70.96Special order, ships in 7-14 days
6212646727Ferrari Washer D. 8.45 X 20 X 2 - 12646727$0.40Available, ships in 3-6 days
6316285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days
6455024446Ferrari LH Front WheeLHouse Reinforc - 55024446$56.52Special order, ships in 7-14 days
6555024447Ferrari RH Front WheeLHouse Reinforc - 55024447$56.52Special order, ships in 7-14 days
