Ferrari 12 Cilindri Spider — [VEHICLE TRIM] - E.07 - REAR SUBFRAME (diagram 0103)

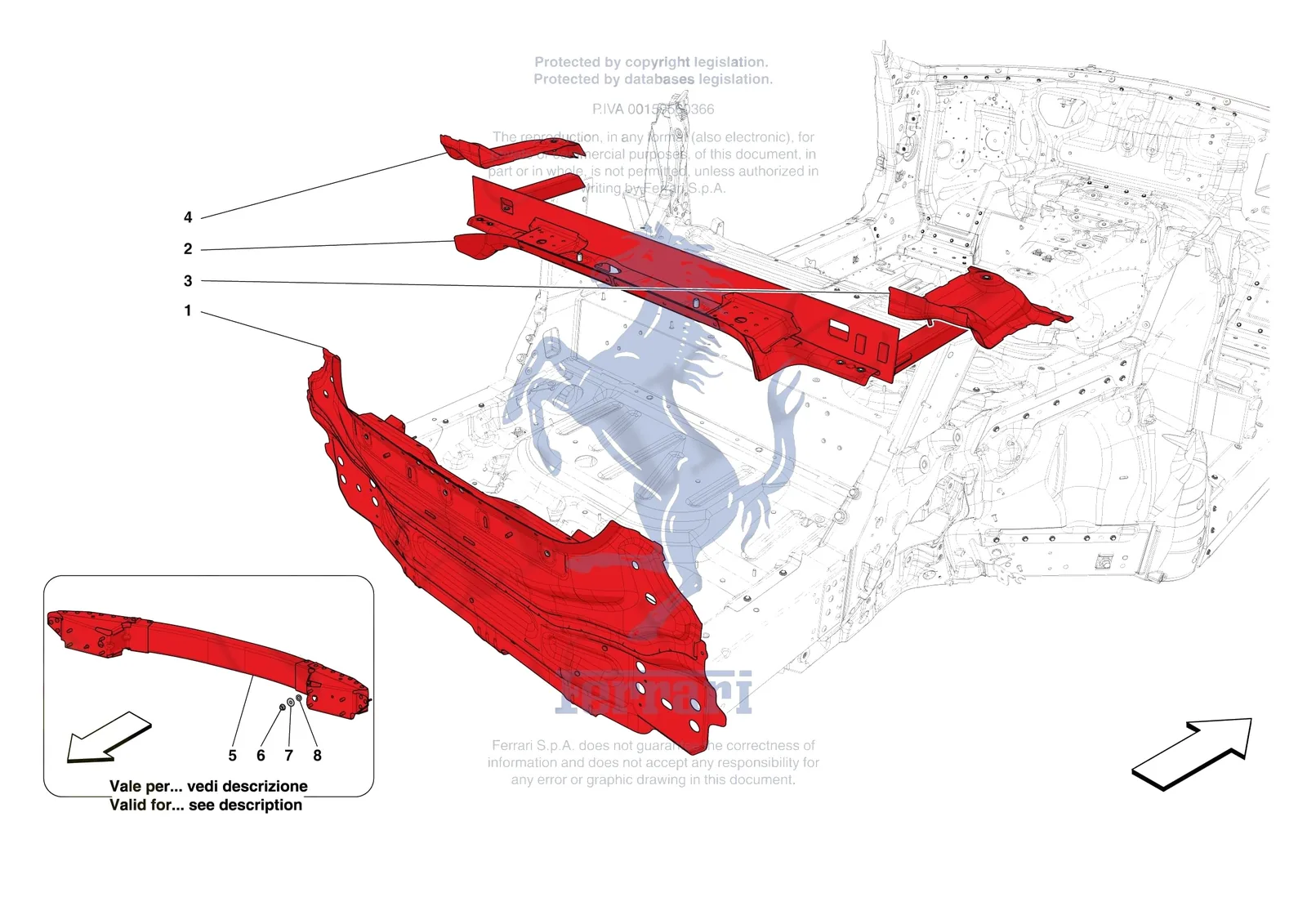

Exploded view of the [vehicle trim] - e.07 - rear subframe on the Ferrari 12 Cilindri Spider, with 8 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri Spider [VEHICLE TRIM] - E.07 - REAR SUBFRAME exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri-spider/0103.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 985774251 | Ferrari COMPL. REAR CROSS MEMBER - 985774251 | $3,424.54 | Special order, ships in 7-14 days |
| 2 | 985993575 | Ferrari CENTRE CROSS PIECE OF REAR SUBSTRUCTURE - 985993575 | Price on request | Contact us for price and availability |
| 3 | 985996825 | Ferrari COMPL. SHELF ON RH GUTTER - 985996825 | Price on request | Contact us for price and availability |
| 4 | 985996827 | Ferrari COMPL. SHELF ON LH GUTTER - 985996827 | Price on request | Contact us for price and availability |
| 5 | 985974922 | Ferrari COMPL. REAR BUMPER CROSS MEMBER - 985974922 | Price on request | Contact us for price and availability |
| 6 | 13046214 | Ferrari Nut - 13046214 | $0.73 | Special order, ships in 7-14 days |
| 7 | 12642024 | Ferrari Washer - 12642024 | Superseded | Order 12642021 instead |
| 8 | 84653800 | Ferrari Washer - 84653800 | $10.91 | Available, ships in 3-6 days |
