Ferrari 12 Cilindri Spider — [VEHICLE TRIM] - E.10 - REAR LID SUBSTRUCTURE (diagram 0106)

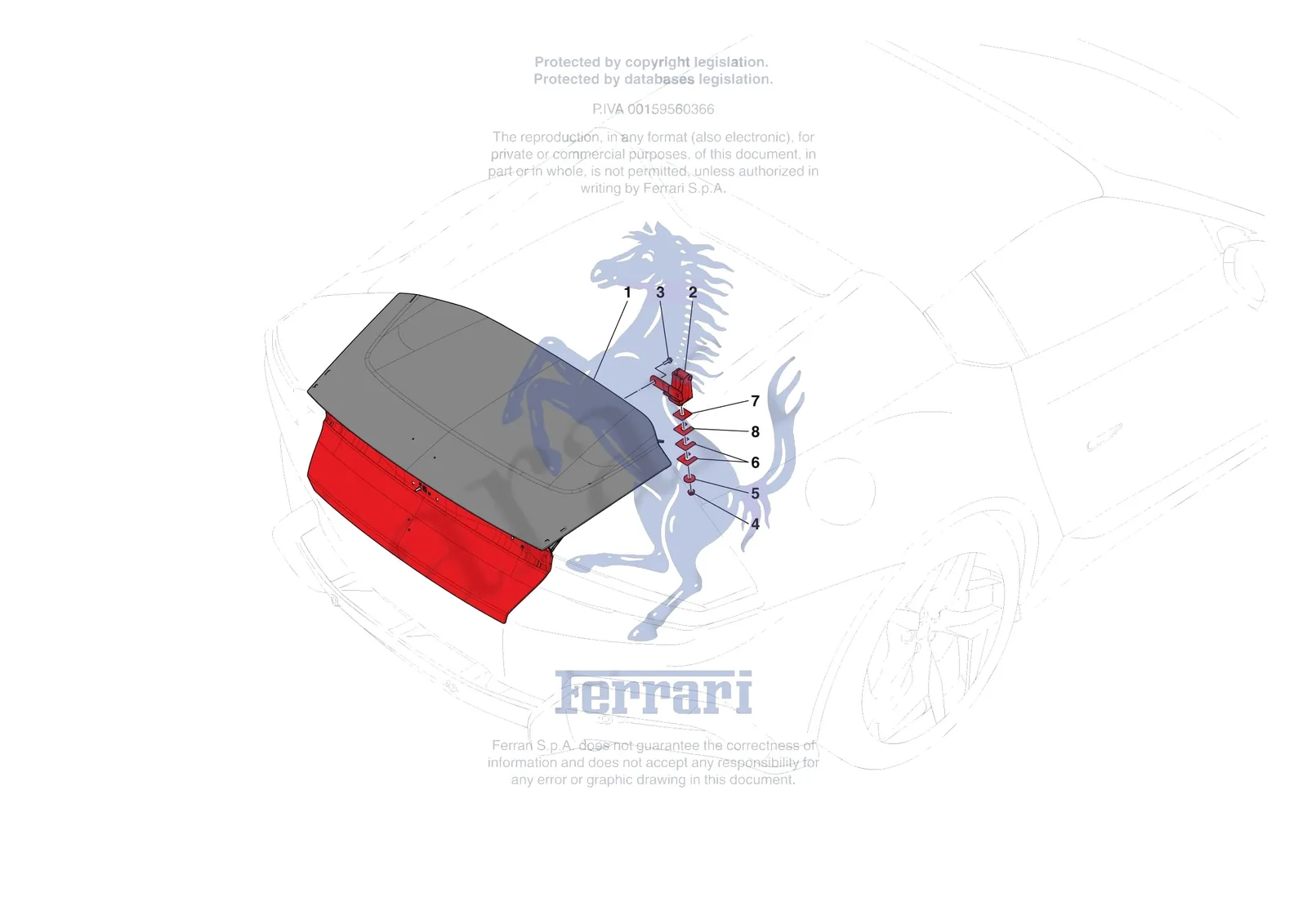

Exploded view of the [vehicle trim] - e.10 - rear lid substructure on the Ferrari 12 Cilindri Spider, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri Spider [VEHICLE TRIM] - E.10 - REAR LID SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri-spider/0106.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 11193979 | Ferrari Washer - 11193979 | $0.31 | Available, ships in 3-6 days | |
| 1 | 955002668 | Ferrari COMPL. LUGGAGE COMPARTMENT LID - 955002668 | Price on request | Contact us to order |
| 1 | 985994126 | Ferrari COMPL. LUGGAGE COMPARTMENT LID - 985994126 | $17,598.04 | Contact us to order |
| 2 | 994148 | Ferrari COMPL. LUGGAGE COMPARTMENT LID HINGE - 994148 | $565.49 | Special order, ships in 7-14 days |
| 3 | 16286124 | Ferrari Screw M6x20 - 16286124 | $0.71 | Special order, ships in 7-14 days |
| 3 | 16286224 | Ferrari Screw M6x25 - 16286224 | $4.77 | Special order, ships in 7-14 days |
| 4 | 14059311 | Ferrari NUT - 14059311 | $0.52 | Available, ships in 3-6 days |
| 5 | 80416000 | Ferrari Washer - 80416000 | $3.26 | Available, ships in 3-6 days |
| 6 | 242223 | Ferrari Spacer 0.5mm - 242223 | $4.98 | Special order, ships in 7-14 days |
| 6 | 980674 | Ferrari Spacer 0.5mm - 980674 | $7.84 | Special order, ships in 7-14 days |
| 6 | 84651000 | Ferrari Spacer 1.0mm - 84651000 | $6.96 | Special order, ships in 7-14 days |
| 7 | 88677700 | Ferrari Tailgate Hinge Spacer 1.0mm - 88677700 | $10.25 | Special order, ships in 7-14 days |
| 8 | 242224 | Ferrari Spacer 1.0mm - 242224 | $5.19 | Special order, ships in 7-14 days |
