Ferrari 12 Cilindri Spider — [VEHICLE TRIM] - E.13.02 - ROOF - KINEMATICS (diagram 0110)

Exploded view of the [vehicle trim] - e.13.02 - roof - kinematics on the Ferrari 12 Cilindri Spider, with 51 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

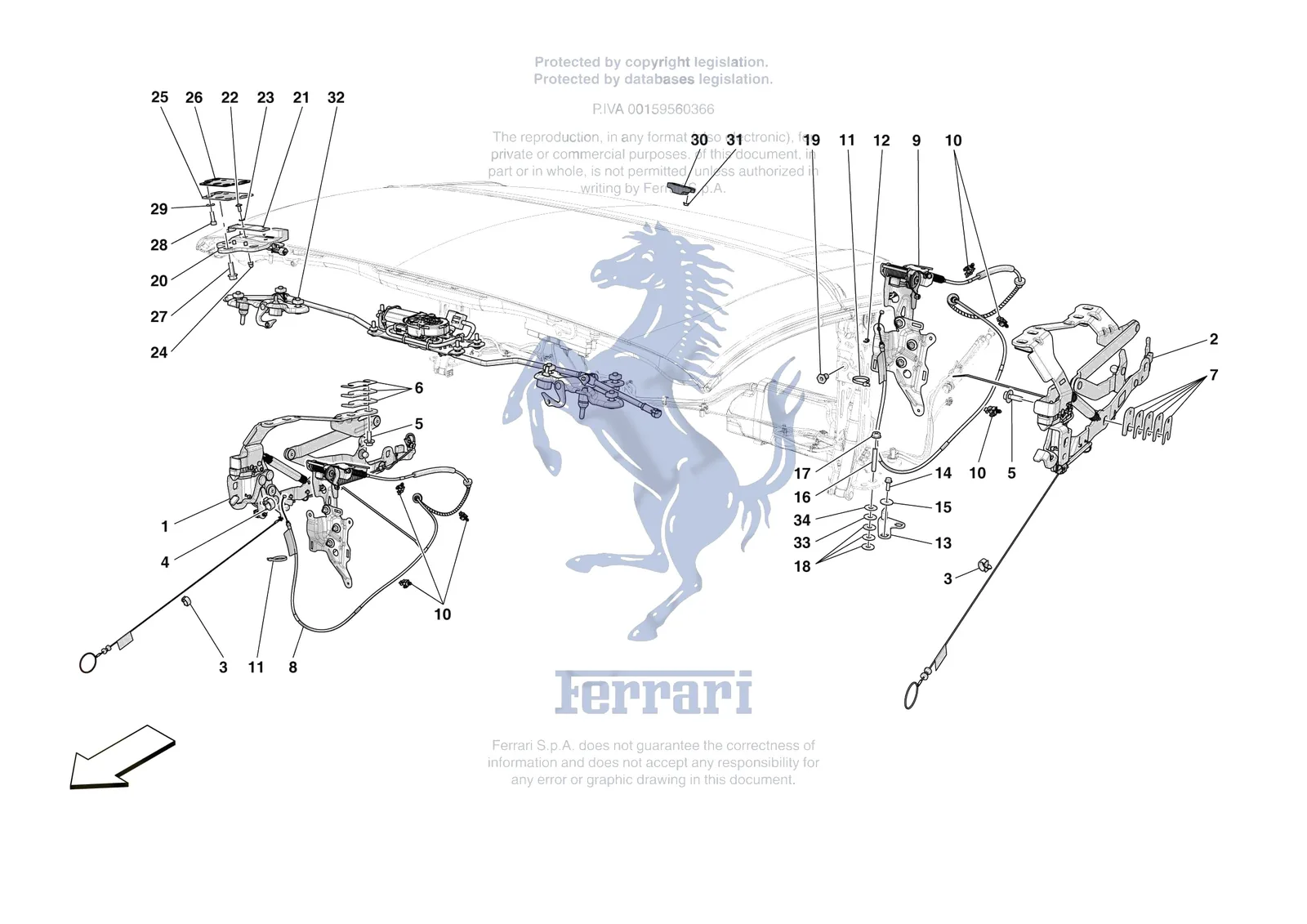

Ferrari 12 Cilindri Spider [VEHICLE TRIM] - E.13.02 - ROOF - KINEMATICS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14054042Ferrari Nut - 14054042SupersededOrder 168698 instead
14054048Ferrari Nut - 14054048SupersededOrder 168698 instead
80415900Ferrari Screw - 80415900$32.60Available, ships in 3-6 days
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
12640606Ferrari Washer - 12640606SupersededOrder 12640678 instead
12640608Ferrari Washer - 12640608SupersededOrder 12640678 instead
12640677Ferrari Washer - 12640677SupersededOrder 12640678 instead
1968592Ferrari RH Tonneau Cover Kinematics - 968592$2,201.19Special order, ships in 7-14 days
2968589Ferrari LH Tonneau Cover Kinematics - 968589$2,248.03Special order, ships in 7-14 days
3819125Ferrari Clip - 819125$0.50Special order, ships in 7-14 days
4919383Ferrari Clip Omega - 919383$1.55Special order, ships in 7-14 days
582271400Ferrari Screw with Washer M8 x 25 TE - 82271400$2.59Available, ships in 3-6 days
684807000Ferrari Spacer 0.5mm - 84807000$8.82Available, ships in 3-6 days
684807100Ferrari Spacer 1.0mm - 84807100$8.82Available, ships in 3-6 days
684842000Ferrari Spacer 3.0mm - 84842000$10.81Available, ships in 3-6 days
784508500Ferrari Tub Lifting Mechanism Fastener Shim 0.5mm - 84508500$9.16Special order, ships in 7-14 days
784508600Ferrari Tub Lifting Mechanism Fastener Shim 1.0mm - 84508600$9.16Special order, ships in 7-14 days
784508700Ferrari Tub Lifting Mechanism Fastener Shim 1.5mm - 84508700$13.74Special order, ships in 7-14 days
785422400Ferrari Tub Lifting Mechanism Fastener Shim 4.0mm - 85422400$6.31Special order, ships in 7-14 days
8965285Ferrari COMPL. RH CLOSED FLAP - 965285Price on requestContact us for price and availability
9964888Ferrari COMPL. LH CLOSED FLAP - 964888Price on requestContact us for price and availability
1084093700Ferrari Clip - 84093700$2.82Special order, ships in 7-14 days
1110815787Ferrari Clamp - 10815787$0.31Available, ships in 3-6 days
1211087776Ferrari Circlip - 11087776$0.13Available, ships in 3-6 days
13988363Ferrari COMPL. LH REAR CENTRING PLATE - 988363Price on requestContact us for price and availability
13988361Ferrari COMPL. RH REAR CENTRING PLATE - 988361Price on requestContact us for price and availability
1416286127Ferrari Screw 6x20 - 16286127$0.82Available, ships in 3-6 days
1512640678Ferrari Washer 6.15x25x2 - 12640678$3.47Available, ships in 3-6 days
1613791321Ferrari Screw - 13791321$1.92Special order, ships in 7-14 days
1713046224Ferrari Nut - 13046224$0.73Available, ships in 3-6 days
1883595100Ferrari Flat Washer D. 8.15X - 83595100$2.82Special order, ships in 7-14 days
19320219Ferrari Pin M6 x 34 - 320219$7.40Special order, ships in 7-14 days
2083977900Ferrari LH Striker Complete - 83977900$549.71Available, ships in 3-6 days
20749652Ferrari RH Striker - 749652$958.91Special order, ships in 7-14 days
2184643400Ferrari LH Bracket - 84643400$21.14Special order, ships in 7-14 days
2184643500Ferrari RH Bracket - 84643500$21.14Special order, ships in 7-14 days
2285692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
2312637878Ferrari Washer - 12637878$0.19Available, ships in 3-6 days
24168698Ferrari Nut M5 x 11 - 168698$3.68Available, ships in 3-6 days
2584503800Ferrari Shim Kit For Adjusting Roof Relative To Windscreen - 84503800$78.66Special order, ships in 7-14 days
26866265Ferrari WINDSCREEN STRIKER PLATE - 866265$34.40Special order, ships in 7-14 days
2711617624Ferrari Screw - 11617624SupersededOrder 16287224 instead
2716287224Ferrari Screw M8x25 - 16287224$0.82Available, ships in 3-6 days
2814305334Ferrari Screw M6 x 20 - 14305334$0.38Available, ships in 3-6 days
2912646624Ferrari Washer 6.15-15x1.5 - 12646624$0.40Available, ships in 3-6 days
30865664Ferrari Bumper - 865664$10.25Special order, ships in 7-14 days
3113046112Ferrari Nut - 13046112$0.46Available, ships in 3-6 days
32903699Ferrari Complete Lock System - 903699$4,753.68Special order, ships in 7-14 days
3312642001Ferrari Washer - 12642001$0.27Available, ships in 3-6 days
3483595200Ferrari Flat Washer D. 8.15X - 83595200$2.59Special order, ships in 7-14 days
