Ferrari 12 Cilindri Spider — [VEHICLE TRIM] - E.46 - INTERNAL BULKHEAD WALL TRIM (diagram 0148)

Exploded view of the [vehicle trim] - e.46 - internal bulkhead wall trim on the Ferrari 12 Cilindri Spider, with 73 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

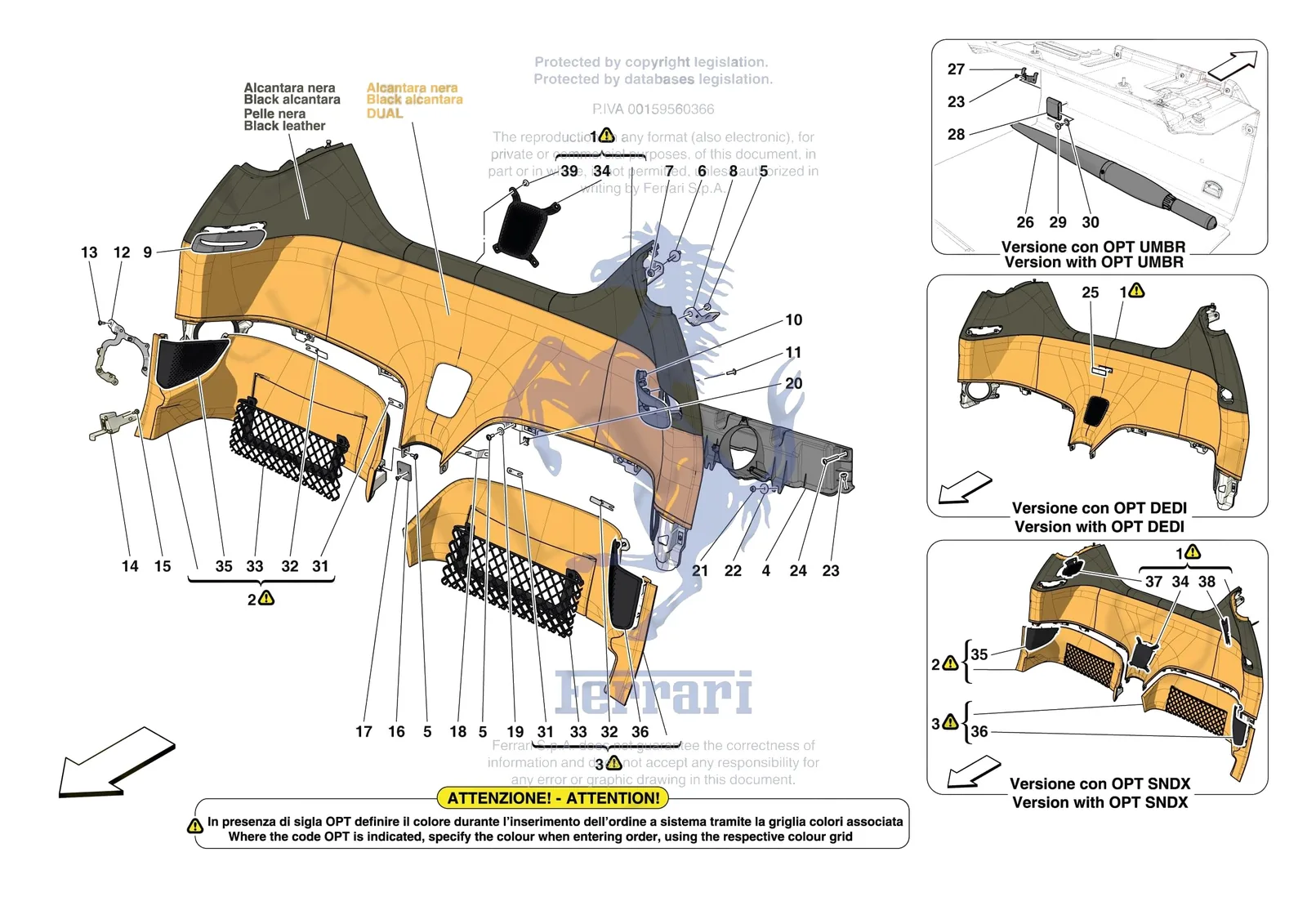

Ferrari 12 Cilindri Spider [VEHICLE TRIM] - E.46 - INTERNAL BULKHEAD WALL TRIM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
798834Ferrari Compl. Umbrella - 798834SupersededOrder 902308 instead
86574400Ferrari Screw - 86574400SupersededOrder 86876500 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
155004738Ferrari COMPL. PARTITION WALL FASCIA - 55004738Price on requestContact us for price and availability
155006732Ferrari COMPL. PARTITION WALL FASCIA - 55006732$7,184.40Special order, ships in 7-14 days
155020043Ferrari COMPL. PARTITION WALL FASCIA - 55020043Price on requestContact us for price and availability
155020059Ferrari COMPL. PARTITION WALL FASCIA - 55020059Price on requestContact us for price and availability
155020064Ferrari COMPL. PARTITION WALL FASCIA - 55020064Price on requestContact us for price and availability
155020066Ferrari COMPL. PARTITION WALL FASCIA - 55020066Price on requestContact us for price and availability
155033135Ferrari COMPL. PARTITION WALL FASCIA - 55033135Price on requestContact us for price and availability
155033136Ferrari COMPL. PARTITION WALL FASCIA - 55033136Price on requestContact us for price and availability
155033140Ferrari COMPL. PARTITION WALL FASCIA - 55033140Price on requestContact us for price and availability
155033160Ferrari COMPL. PARTITION WALL FASCIA - 55033160Price on requestContact us for price and availability
155033169Ferrari COMPL. PARTITION WALL FASCIA - 55033169Price on requestContact us for price and availability
155033200Ferrari COMPL. PARTITION WALL FASCIA - 55033200Price on requestContact us for price and availability
155033203Ferrari COMPL. PARTITION WALL FASCIA - 55033203Price on requestContact us for price and availability
155033233Ferrari COMPL. PARTITION WALL FASCIA - 55033233Price on requestContact us for price and availability
1865894Ferrari COMPL. PARTITION WALL FASCIA - 865894Price on requestContact us for price and availability
1866118Ferrari COMPL. PARTITION WALL FASCIA - 866118Price on requestContact us for price and availability
255023777Ferrari COMPL. RH REAR BULKHEAD - 55023777Price on requestContact us for price and availability
255023787Ferrari COMPL. RH REAR BULKHEAD - 55023787Price on requestContact us for price and availability
2866131Ferrari COMPL. RH REAR BULKHEAD - 866131Price on requestContact us for price and availability
2866186Ferrari COMPL. RH REAR BULKHEAD - 866186Price on requestContact us for price and availability
355023762Ferrari COMPL. LH REAR BULKHEAD - 55023762Price on requestContact us for price and availability
355023786Ferrari COMPL. LH REAR BULKHEAD - 55023786Price on requestContact us for price and availability
3866017Ferrari COMPL. LH REAR BULKHEAD - 866017Price on requestContact us for price and availability
3866072Ferrari COMPL. LH REAR BULKHEAD - 866072Price on requestContact us for price and availability
4865895Ferrari Cassa Acustica Fullrange Cen - 865895$295.03Special order, ships in 7-14 days
585833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
6888382Ferrari Screw - 888382$39.31Special order, ships in 7-14 days
713046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
713046012Ferrari Nut - 13046012SupersededOrder 13046011 instead
8865938Ferrari LH UPPER BRACKET - 865938$46.69Special order, ships in 7-14 days
8865970Ferrari RH UPPER BRACKET - 865970$46.69Special order, ships in 7-14 days
955052865Ferrari RH SEAT BELT SLOT SURROUND - 55052865$73.73Special order, ships in 7-14 days
1055052864Ferrari LH SEAT BELT SLOT SURROUND - 55052864$73.73Special order, ships in 7-14 days
1186876500Ferrari Screw M4 x 12 TBEI - 86876500$7.84Special order, ships in 7-14 days
12866014Ferrari LH FULL RANGE SPEAKER BRACKET - 866014$211.43Special order, ships in 7-14 days
12865907Ferrari RH FULL RANGE SPEAKER BRACKET - 865907$211.43Special order, ships in 7-14 days
1385833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
1455033889Ferrari Compl. LH Rear Bulkhead Fastener Bracket - 55033889$110.61Special order, ships in 7-14 days
1455033891Ferrari Compl. RH Rear Bulkhead Fastener Bracket - 55033891$110.61Special order, ships in 7-14 days
1585692300Ferrari Screw M5 x 20 TBFTX - 85692300$0.65Available, ships in 3-6 days
1687131300Ferrari Dual Lock - 87131300$8.72Special order, ships in 7-14 days
1788822200Ferrari Screw 4 x 10 - 88822200$1.30Special order, ships in 7-14 days
1855022105Ferrari MOUNTING BRACKET - 55022105Price on requestContact us for price and availability
1912638521Ferrari Washer - 12638521SupersededOrder 12638524 instead
2067278400Ferrari BRACKET - 67278400$21.60Special order, ships in 7-14 days
2114059121Ferrari Nut M5 - 14059121$0.31Available, ships in 3-6 days
2261148700Ferrari WASHER - 61148700SupersededOrder 12643724 instead
2212643724Ferrari/Maserati Washer - 12643724$0.20In stock
2385692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
2488831000Ferrari Screw M5 x 40 - 88831000$1.05Special order, ships in 7-14 days
2555013568Ferrari DEDICATION PLAQUE - 55013568$1,199.37Special order, ships in 7-14 days
2555013569Ferrari DEDICATION PLAQUE - 55013569Price on requestContact us for price and availability
26902308Ferrari Compl. Umbrella - 902308$2,376.83Special order, ships in 7-14 days
2716286121Ferrari Screw M6 x 20 - 16286121$1.23Available, ships in 3-6 days
27960358Ferrari UMBRELLA BRACKET - 960358$442.56Special order, ships in 7-14 days
28961665Ferrari Umbrella Mount - 961665$295.03Special order, ships in 7-14 days
2982362500Ferrari Screw - 82362500$1.49Available, ships in 3-6 days
3081916900Ferrari Anti-Abrasion Washer - 81916900$3.47Available, ships in 3-6 days
31873929Ferrari LOWER FASTENER BRACKET - 873929Price on requestContact us for price and availability
3255019058Ferrari EXTERIOR LOWER FASTENER BRACKET - 55019058Price on requestContact us for price and availability
3355058382Ferrari REAR BULKHEAD MESH - 55058382Price on requestContact us for price and availability
34865893Ferrari COMPL. CENTRE SPEAKER GRILLE - 865893Price on requestContact us for price and availability
34866925Ferrari COMPL. CENTRE SPEAKER GRILLE - 866925$458.95Special order, ships in 7-14 days
3555004812Ferrari COMPL. RH LATERAL SPEAKER GRILLE - 55004812Price on requestContact us for price and availability
35865956Ferrari Compl. RH Lateral Speaker Grille - 865956$614.67Special order, ships in 7-14 days
3655004810Ferrari COMPL. LH LATERAL SPEAKER GRILLE - 55004810Price on requestContact us for price and availability
36867282Ferrari Compl. LH Lateral Speaker Grille - 867282$614.67Special order, ships in 7-14 days
3755037458Ferrari COMPL. RH UPPER SPEAKER GRILLE - 55037458Price on requestContact us for price and availability
3855037455Ferrari COMPL. LH UPPER SPEAKER GRILLE - 55037455Price on requestContact us for price and availability
3985691900Ferrari Screw M5 x 8 TBFTX - 85691900$0.65Available, ships in 3-6 days

All 12 Cilindri Spider diagrams
