Ferrari 12 Cilindri Spider — [VEHICLE TRIM] - E.47.05 - DASHBOARD - DUCTS -Not for RHD- (diagram 0153)

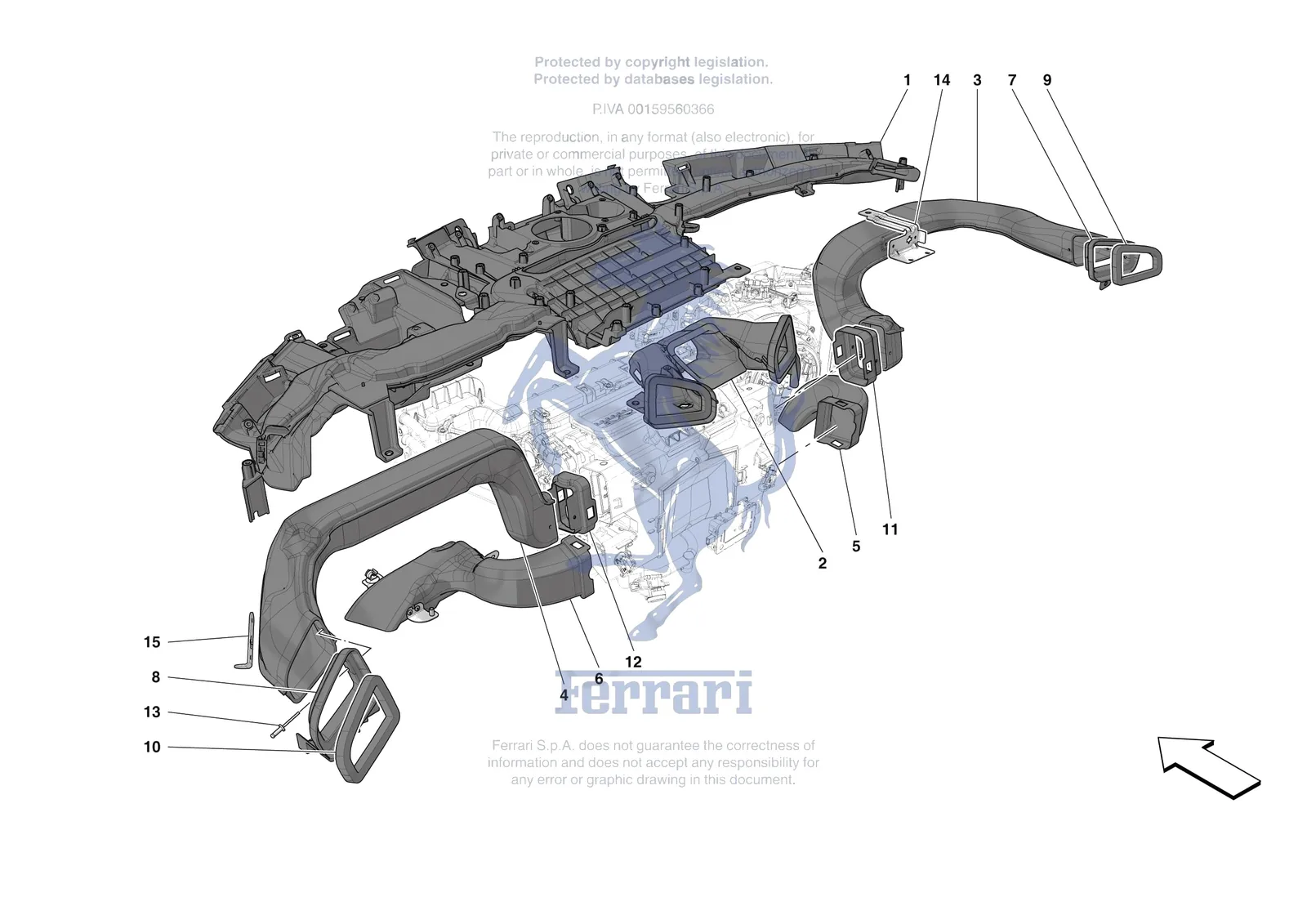

Exploded view of the [vehicle trim] - e.47.05 - dashboard - ducts -not for rhd- on the Ferrari 12 Cilindri Spider, with 16 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri Spider [VEHICLE TRIM] - E.47.05 - DASHBOARD - DUCTS -Not for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri-spider/0153.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 823045 | Ferrari Compl. Defroster Duct - 823045 | $1,598.19 | Special order, ships in 7-14 days |
| 2 | 823035 | Ferrari Compl. Centre Air Duct - 823035 | $368.79 | Special order, ships in 7-14 days |
| 2 | 993235 | Ferrari Compl. Centre Air Duct - 993235 | $393.38 | Special order, ships in 7-14 days |
| 3 | 822996 | Ferrari RH Passenger Air Duct - 822996 | $344.21 | Special order, ships in 7-14 days |
| 4 | 822855 | Ferrari LH Driver Air Duct - 822855 | $319.62 | Special order, ships in 7-14 days |
| 5 | 89223200 | Ferrari Passenger Side Footwell Vent - 89223200 | $149.96 | Special order, ships in 7-14 days |
| 6 | 823229 | Ferrari Compl. Driver Side Footwell - 823229 | $491.74 | Special order, ships in 7-14 days |
| 7 | 823005 | Ferrari RH Passenger Vent Connector - 823005 | $17.19 | Special order, ships in 7-14 days |
| 8 | 822879 | Ferrari LH Driver Vent Connector - 822879 | $44.24 | Special order, ships in 7-14 days |
| 9 | 823003 | Ferrari RH VENT SEAL - 823003 | Price on request | Contact us for price and availability |
| 10 | 822925 | Ferrari LH Driver Side Vent Seal - 822925 | $32.76 | Special order, ships in 7-14 days |
| 11 | 888918 | Ferrari RH Hvac Connector - 888918 | $31.93 | Special order, ships in 7-14 days |
| 12 | 822880 | Ferrari Driver Side Hvac Connector - 822880 | $27.03 | Special order, ships in 7-14 days |
| 13 | 946493 | Ferrari Rivet - 946493 | $0.44 | Special order, ships in 7-14 days |
| 14 | 823002 | Ferrari Passenger Side Temperature S - 823002 | $58.98 | Special order, ships in 7-14 days |
| 15 | 822881 | Ferrari Driver Side Temperature Sens - 822881 | $21.60 | Special order, ships in 7-14 days |
