Ferrari 12 Cilindri Spider — [VEHICLE TRIM] - E.55 - WIPERS AND HEADLAMP WASHERS (diagram 0167)

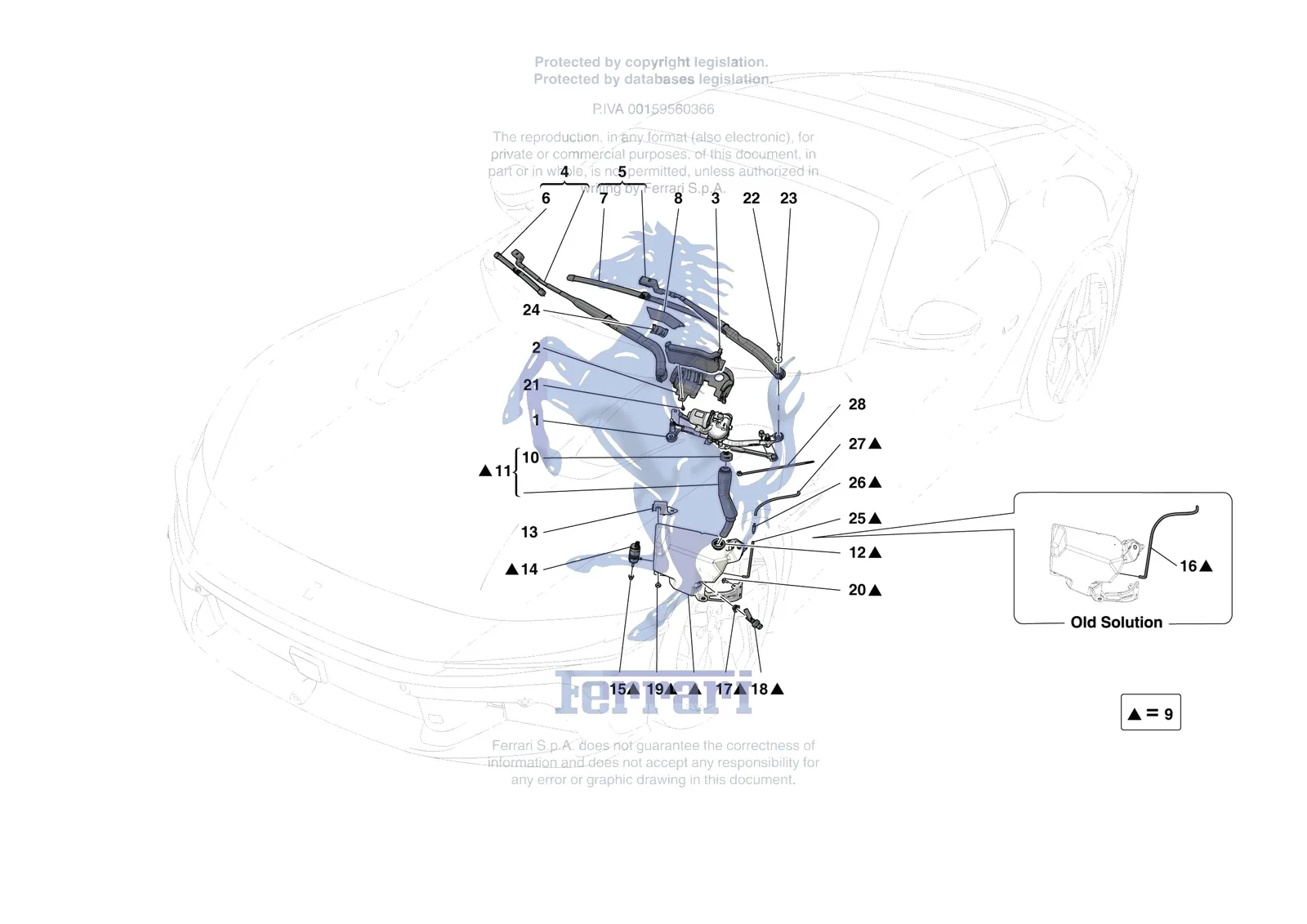

Exploded view of the [vehicle trim] - e.55 - wipers and headlamp washers on the Ferrari 12 Cilindri Spider, with 44 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri Spider [VEHICLE TRIM] - E.55 - WIPERS AND HEADLAMP WASHERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri-spider/0167.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 82199100 | Ferrari Screen Wash Liquid Reservoir - 82199100 | Superseded | Order 851829 instead | |
| 977650 | Ferrari Screen Wash Liquid Reservoir - 977650 | Superseded | Order 851829 instead | |
| 12640606 | Ferrari Washer - 12640606 | Superseded | Order 12640678 instead | |
| 12640608 | Ferrari Washer - 12640608 | Superseded | Order 12640678 instead | |
| 12640677 | Ferrari Washer - 12640677 | Superseded | Order 12640678 instead | |
| 1 | 787584 | Ferrari Windscreen Wiper Assembly - 787584 | $2,383.86 | Special order, ships in 7-14 days |
| 1 | 872857 | Ferrari Windscreen Wiper Assembly - 872857 | $1,598.19 | Special order, ships in 7-14 days |
| 2 | 787657 | Ferrari Compl. Rear Heat Shield For - 787657 | $149.96 | Special order, ships in 7-14 days |
| 2 | 862374 | Ferrari Compl. Rear Heat Shield For - 862374 | $181.93 | Special order, ships in 7-14 days |
| 3 | 787658 | Ferrari Compl. Front Heat Shield For - 787658 | $162.25 | Special order, ships in 7-14 days |
| 3 | 862340 | Ferrari Compl. Front Heat Shield For - 862340 | $186.84 | Special order, ships in 7-14 days |
| 4 | 787583 | Ferrari Compl. Passenger Side Windsc - 787583 | $1,450.67 | Special order, ships in 7-14 days |
| 4 | 861867 | Ferrari Compl. Passenger Side Windsc - 861867 | $713.04 | Special order, ships in 7-14 days |
| 5 | 787567 | Ferrari Compl. Driver Side Windscree - 787567 | $1,229.39 | Special order, ships in 7-14 days |
| 5 | 862369 | Ferrari Compl. Driver Side Windscree - 862369 | $713.04 | Special order, ships in 7-14 days |
| 6 | 787568 | Ferrari Passenger Side Wiper Blade - 787568 | $371.53 | Special order, ships in 7-14 days |
| 6 | 862378 | Ferrari Passenger Side Wiper Blade - 862378 | $371.53 | Special order, ships in 7-14 days |
| 7 | 787572 | Ferrari Driver Side Wiper Blade - 787572 | $371.53 | Special order, ships in 7-14 days |
| 7 | 861961 | Ferrari Driver Side Wiper Blade - 861961 | $371.53 | Special order, ships in 7-14 days |
| 8 | 996200 | Ferrari Upper Cover Of Driver Side W - 996200 | $34.40 | Special order, ships in 7-14 days |
| 8 | 957474 | Ferrari Wiper Cover - 957474 | $19.65 | Special order, ships in 7-14 days |
| 9 | 55055661 | Ferrari Compl. Windscreen Washer Reservoir - 55055661 | $737.61 | Special order, ships in 7-14 days |
| 9 | 55055670 | Ferrari Compl. Windscreen Washer Reservoir - 55055670 | $885.15 | Special order, ships in 7-14 days |
| 9 | 787571 | Ferrari Compl. Windscreen Washer Reservoir - 787571 | $713.04 | Special order, ships in 7-14 days |
| 10 | 851829 | Ferrari Screen Wash Liquid Reservoir - 851829 | $66.35 | Special order, ships in 7-14 days |
| 11 | 787573 | Ferrari COMPL. WINDSCREEN WASHER RESERVOIR FILLER PIPE - 787573 | $186.01 | Special order, ships in 7-14 days |
| 12 | 82198600 | Ferrari Filler Pipe Seal - 82198600 | $44.24 | Special order, ships in 7-14 days |
| 13 | 787678 | Ferrari Compl. Rear Lower Wiper Brac - 787678 | $98.32 | Special order, ships in 7-14 days |
| 14 | 81632900 | Ferrari Windscreen Washer Pump - 81632900 | $172.84 | Available, ships in 3-6 days |
| 15 | 65511700 | Ferrari Seal For Washer Pump - 65511700 | $9.81 | Available, ships in 3-6 days |
| 17 | 81633200 | Ferrari Gasket - 81633200 | $50.24 | Special order, ships in 7-14 days |
| 18 | 81633100 | Ferrari Fluid Level Sensor - 81633100 | $240.39 | Special order, ships in 7-14 days |
| 19 | 81290900 | Ferrari Screw With Double Washer - 81290900 | $1.42 | In stock |
| 20 | 792394 | Ferrari Screw TE M6 x 18 - 792394 | $0.84 | Available, ships in 3-6 days |
| 21 | 790361 | Ferrari Screw M5 x 16 - 790361 | $2.59 | Special order, ships in 7-14 days |
| 22 | 10903034 | Ferrari Screw 6x35 - 10903034 | $0.82 | Available, ships in 3-6 days |
| 23 | 12640678 | Ferrari Washer 6.15x25x2 - 12640678 | $3.47 | Available, ships in 3-6 days |
| 24 | 996033 | Ferrari Lower Cover Of Driver Side Windscreen Wiper - 996033 | $17.67 | Special order, ships in 7-14 days |
| 24 | 996198 | Ferrari Lower Cover Of Driver Side Windscreen Wiper - 996198 | $34.40 | Special order, ships in 7-14 days |
| 25 | 55042623 | Ferrari LOWER WINDSCREEN WASHER PIPE - 55042623 | Price on request | Contact us for price and availability |
| 26 | 55042626 | Ferrari CHECK VALVE - 55042626 | Price on request | Contact us for price and availability |
| 27 | 55042624 | Ferrari CENTRE WINDSCREEN WASHER PIPE - 55042624 | Price on request | Contact us for price and availability |
| 27 | 55042808 | Ferrari CENTRE WINDSCREEN WASHER PIPE - 55042808 | Price on request | Contact us for price and availability |
| 28 | 145854 | Ferrari Cable tie 200mm - 145854 | $0.57 | Available, ships in 3-6 days |
