Ferrari 12 Cilindri Spider — [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT (diagram 0168)

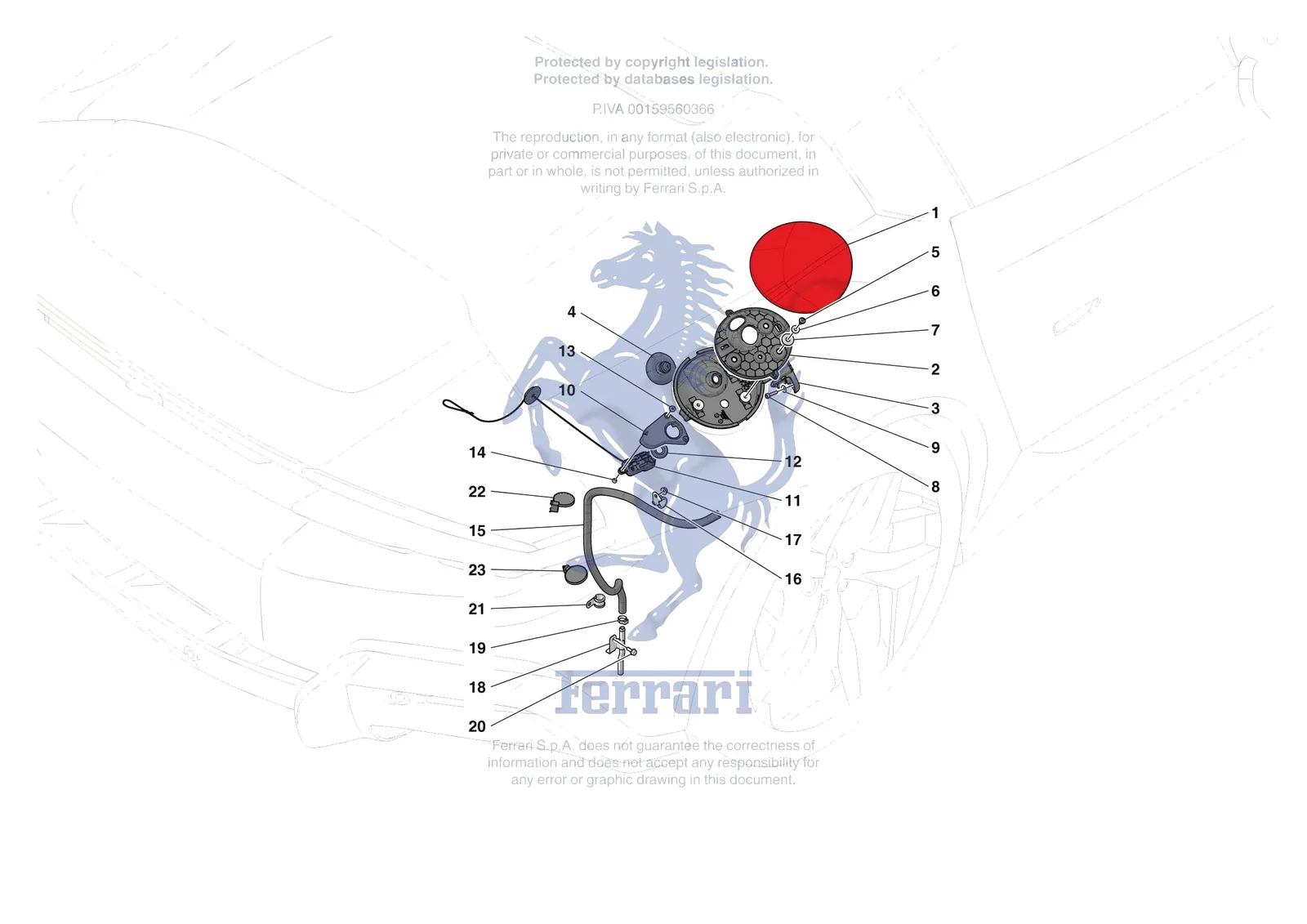

Exploded view of the [vehicle trim] - e.56 - fuel filler seat on the Ferrari 12 Cilindri Spider, with 24 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri Spider [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri-spider/0168.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 1 | 985821363 | Ferrari Compl. Fuel Filler Flap - 985821363 | $639.27 | Special order, ships in 7-14 days |
| 2 | 775993 | Ferrari Compl. Inner Carrier - 775993 | $76.19 | Special order, ships in 7-14 days |
| 3 | 821387 | Ferrari Compl. Fuel Filler Flap Hinge - 821387 | $663.86 | Special order, ships in 7-14 days |
| 4 | 89290600 | Ferrari FUEL FILLER FLAP RUBBER BLOCK - 89290600 | $29.48 | Special order, ships in 7-14 days |
| 5 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 6 | 911975 | Ferrari Flat Washer D 5.15-15X - 911975 | $0.79 | Special order, ships in 7-14 days |
| 7 | 55018643 | Ferrari Gasket - 55018643 | $17.23 | Special order, ships in 7-14 days |
| 8 | 14304321 | Ferrari Screw M5 x 20 - 14304321 | $0.34 | Special order, ships in 7-14 days |
| 9 | 12638124 | Ferrari Washer - 12638124 | $0.08 | Available, ships in 3-6 days |
| 10 | 973837 | Ferrari Fuel Filler Actuator Mount - 973837 | $270.44 | Special order, ships in 7-14 days |
| 11 | 88436500 | Ferrari Compl. Push-Push - 88436500 | $191.76 | Special order, ships in 7-14 days |
| 12 | 89180500 | Ferrari Gasket - 89180500 | $15.28 | Special order, ships in 7-14 days |
| 13 | 85692000 | Ferrari SCREW - 85692000 | $0.65 | Available, ships in 3-6 days |
| 14 | 15516204 | Ferrari Screw 4 x 12 - 15516204 | $0.59 | Available, ships in 3-6 days |
| 15 | 819492 | Ferrari FUEL DRAIN PIPE - 819492 | Price on request | Contact us for price and availability |
| 16 | 811419 | Ferrari Bracket With Sheath - 811419 | $31.93 | Special order, ships in 7-14 days |
| 17 | 14040614 | Ferrari Flanged Nut 6mm - 14040614 | $0.27 | Available, ships in 3-6 days |
| 18 | 819518 | Ferrari COMPL. RIGID FUEL DRAIN PIPE - 819518 | Price on request | Contact us for price and availability |
| 19 | 10716470 | Ferrari Collar - 10716470 | $2.59 | Available, ships in 3-6 days |
| 20 | 16286124 | Ferrari Screw M6x20 - 16286124 | $0.71 | Special order, ships in 7-14 days |
| 21 | 10450490 | Ferrari Bracket P Clip16mm - 10450490 | $1.04 | Available, ships in 3-6 days |
| 22 | 242384 | Ferrari Clip - 242384 | $0.59 | Available, ships in 3-6 days |
| 23 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
