Ferrari 12 Cilindri Spider — [VEHICLE TRIM] - E.57.01 - AC SYSTEM - EVAPORATOR (diagram 0169)

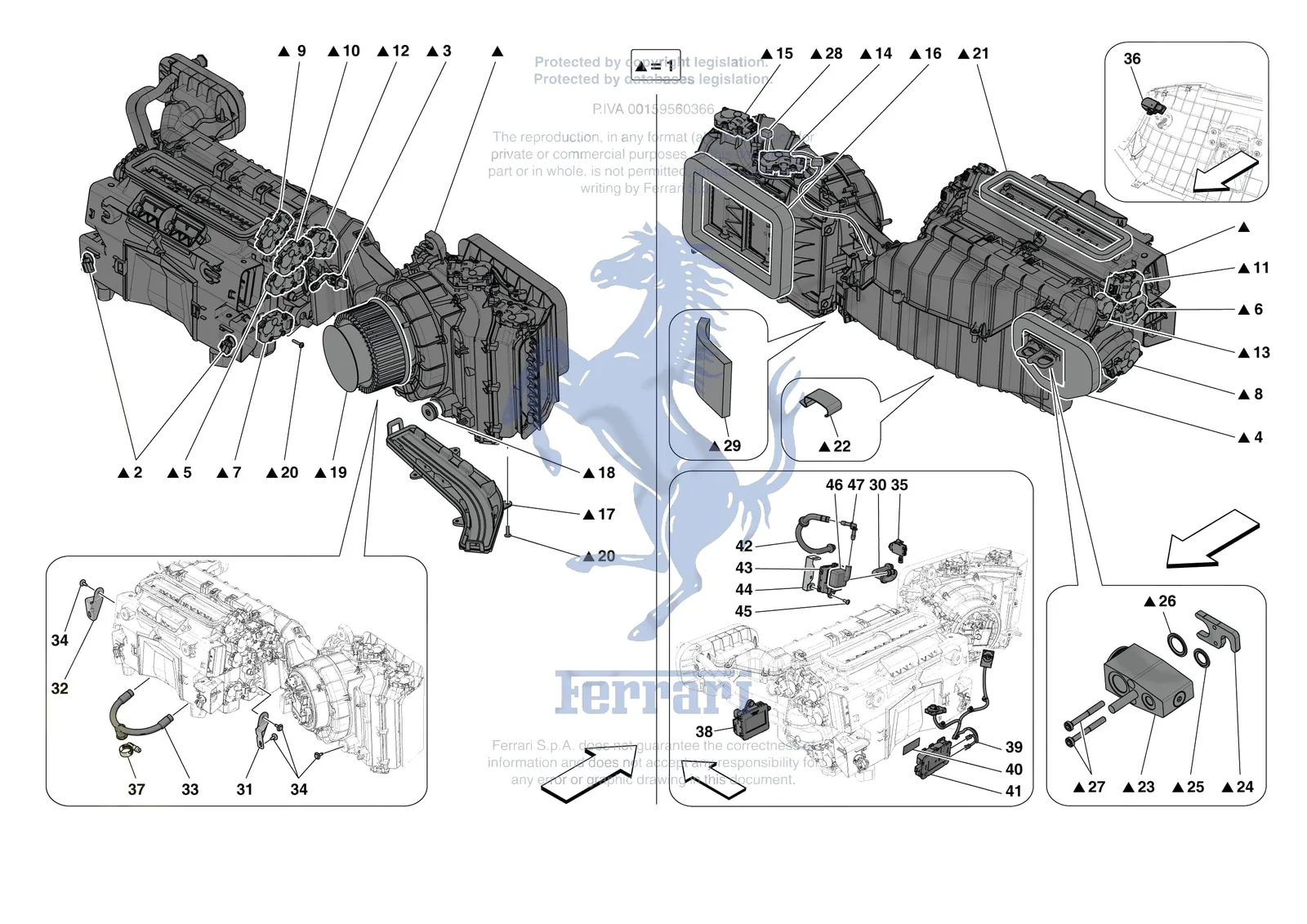

Exploded view of the [vehicle trim] - e.57.01 - ac system - evaporator on the Ferrari 12 Cilindri Spider, with 51 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 12 Cilindri Spider [VEHICLE TRIM] - E.57.01 - AC SYSTEM - EVAPORATOR exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
155014111Ferrari Compl. Ac Unit - 55014111$7,214.84Special order, ships in 7-14 days
1886128Ferrari Complete Evaporator - 886128$4,702.17Special order, ships in 7-14 days
288712600Ferrari Temperature Sensor - 88712600$34.94Special order, ships in 7-14 days
3819834Ferrari Evaporator Sensor - 819834$19.20Special order, ships in 7-14 days
4819838Ferrari Firewall Seal - 819838$86.04Special order, ships in 7-14 days
5819840Ferrari RH Lateral Vent Actuator - 819840$214.17Special order, ships in 7-14 days
6819839Ferrari LH Lateral Vent Actuator - 819839$203.24Special order, ships in 7-14 days
7819844Ferrari RH Heater Actuator - 819844$214.17Special order, ships in 7-14 days
8819843Ferrari LH Heater Actuator - 819843$214.17Special order, ships in 7-14 days
9819845Ferrari Defroster Actuator - 819845$214.17Special order, ships in 7-14 days
10819847Ferrari RH Central Vent Actuator - 819847$214.17Available, ships in 3-6 days
11819846Ferrari LH Central Vent Actuator - 819846$214.17Special order, ships in 7-14 days
12819849Ferrari RH Temperature Actuator - 819849$213.21Special order, ships in 7-14 days
13819848Ferrari LH Temperature Actuator - 819848$214.17Special order, ships in 7-14 days
14819850Ferrari LH Air Inlet - 819850$213.21Special order, ships in 7-14 days
15819852Ferrari LH Recirculation - 819852$214.17Special order, ships in 7-14 days
16819853Ferrari Air Inlet Seal - 819853$23.33Special order, ships in 7-14 days
17819854Ferrari Pollen Filter Cover Panel - 819854$135.20Special order, ships in 7-14 days
1868389800Ferrari Rubber Pad - 68389800$12.52Special order, ships in 7-14 days
19819855Ferrari Fan - 819855$1,671.97Special order, ships in 7-14 days
20819837Ferrari Screw - 819837$9.16Special order, ships in 7-14 days
21819859Ferrari Seal Tape - 819859$23.33Special order, ships in 7-14 days
22819860Ferrari Clip - 819860$8.05Special order, ships in 7-14 days
23819861Ferrari Expansion Valve - 819861$142.04Special order, ships in 7-14 days
24819881Ferrari Plate - 819881$37.13Special order, ships in 7-14 days
25819882Ferrari Washer - 819882$10.68Special order, ships in 7-14 days
26819883Ferrari Washer - 819883$45.87Special order, ships in 7-14 days
27819885Ferrari Screw - 819885$83.03Special order, ships in 7-14 days
28819888Ferrari Wiring Harness - 819888$516.33Special order, ships in 7-14 days
29819887Ferrari Portofino Cabin Filter - 819887$72.78In stock
3055022223Ferrari Delivery Pipe - 55022223$145.03Special order, ships in 7-14 days
30989846Ferrari Delivery Pipe - 989846$122.92Special order, ships in 7-14 days
31886147Ferrari RH Bracket Fastening Hvac To - 886147$58.98Special order, ships in 7-14 days
32886132Ferrari LH Bracket Fastening Hvac To - 886132$56.52Special order, ships in 7-14 days
33886195Ferrari Condensate Drain Pipe - 886195$115.54Special order, ships in 7-14 days
3481045300Ferrari Screw 6x16 - 81045300$1.36Special order, ships in 7-14 days
35839918Ferrari Ac Air Quality Sensor - 839918$163.89Special order, ships in 7-14 days
3689274100Ferrari Sensore Temperatura - 89274100$157.34Special order, ships in 7-14 days
37161490Ferrari Hose Clip 12 - 20 x 9 - 161490$3.91Available, ships in 3-6 days
38841432Ferrari Internal Particulate Sensor - 841432$677.50Special order, ships in 7-14 days
3955001707Ferrari Ionising Unit Wiring Harness - 55001707$393.38Special order, ships in 7-14 days
40888456Ferrari DOUBLE-SIDED ADHESIVE STRIP FOR IONISING UNIT - 888456$9.37Special order, ships in 7-14 days
41766562Ferrari Ionising Unit E-Box - 766562$319.62Special order, ships in 7-14 days
42886258Ferrari Return Pipe - 886258$100.78Special order, ships in 7-14 days
42989831Ferrari Return Pipe - 989831$132.75Special order, ships in 7-14 days
43766563Ferrari External Particulate Sensor - 766563$677.50Special order, ships in 7-14 days
44886297Ferrari Bracket - 886297$76.19Special order, ships in 7-14 days
44989837Ferrari Bracket - 989837$73.73Special order, ships in 7-14 days
4585833800Ferrari Screw M5 x 14 TBFTX - 85833800$0.90Available, ships in 3-6 days
46887227Ferrari External Particulate Sensor - 887227$56.52Special order, ships in 7-14 days
47887370Ferrari Union - 887370$49.14Special order, ships in 7-14 days
