Ferrari 12 Cilindri Spider — [ELECTRICAL SYSTEM] - F.07 - LOW VOLTAGE WIRING HARNESSES (diagram 0182)

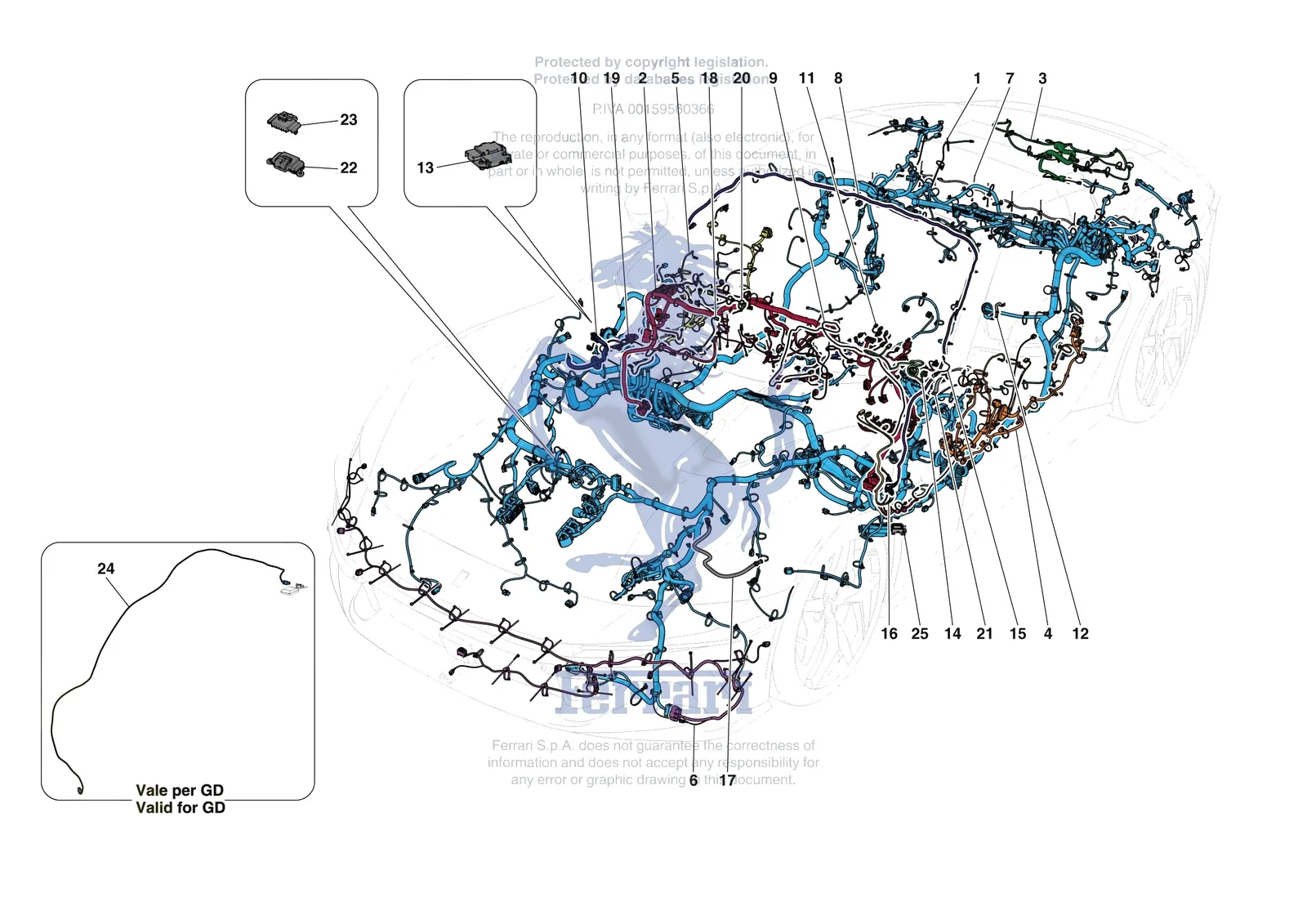

Exploded view of the [electrical system] - f.07 - low voltage wiring harnesses on the Ferrari 12 Cilindri Spider, with 109 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri Spider [ELECTRICAL SYSTEM] - F.07 - LOW VOLTAGE WIRING HARNESSES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri-spider/0182.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 251916 | Ferrari Ground Braid - 251916 | Superseded | Order 302142 instead | |
| 263190 | Ferrari Ground Braid - 263190 | Superseded | Order 302142 instead | |
| 239085 | Ferrari Ground Braid For Nit Bose - 239085 | Superseded | Order 302142 instead | |
| 309771 | Ferrari Ndm Usb Cable - 309771 | $489.54 | Special order, ships in 7-14 days | |
| 1 | 55034631 | Ferrari BODY CABLE - 55034631 | $21,836.42 | Contact us to order |
| 1 | 55034632 | Ferrari BODY CABLE - 55034632 | $22,027.34 | Contact us to order |
| 1 | 55034633 | Ferrari BODY CABLE - 55034633 | $22,213.92 | Contact us to order |
| 1 | 55034634 | Ferrari BODY CABLE - 55034634 | $22,545.87 | Contact us to order |
| 1 | 55034635 | Ferrari BODY CABLE - 55034635 | $22,717.25 | Contact us to order |
| 1 | 55034636 | Ferrari BODY CABLE - 55034636 | $22,634.81 | Contact us to order |
| 1 | 55034637 | Ferrari BODY CABLE - 55034637 | $22,819.23 | Contact us to order |
| 1 | 55034638 | Ferrari BODY CABLE - 55034638 | $23,129.48 | Contact us to order |
| 1 | 55034639 | Ferrari BODY CABLE - 55034639 | $23,368.12 | Contact us to order |
| 1 | 55034648 | Ferrari BODY CABLE - 55034648 | Price on request | Contact us for price and availability |
| 1 | 55034649 | Ferrari BODY CABLE - 55034649 | Price on request | Contact us for price and availability |
| 1 | 55034650 | Ferrari BODY CABLE - 55034650 | Price on request | Contact us for price and availability |
| 1 | 55034651 | Ferrari BODY CABLE - 55034651 | Price on request | Contact us for price and availability |
| 1 | 55034652 | Ferrari BODY CABLE - 55034652 | Price on request | Contact us for price and availability |
| 1 | 55034653 | Ferrari BODY CABLE - 55034653 | Price on request | Contact us for price and availability |
| 1 | 55034654 | Ferrari BODY CABLE - 55034654 | Price on request | Contact us for price and availability |
| 1 | 55034655 | Ferrari BODY CABLE - 55034655 | Price on request | Contact us for price and availability |
| 1 | 55034656 | Ferrari BODY CABLE - 55034656 | Price on request | Contact us for price and availability |
| 1 | 55049487 | Ferrari BODY CABLE - 55049487 | Price on request | Contact us for price and availability |
| 1 | 55049488 | Ferrari BODY CABLE - 55049488 | Price on request | Contact us for price and availability |
| 1 | 55049489 | Ferrari BODY CABLE - 55049489 | Price on request | Contact us for price and availability |
| 1 | 55049490 | Ferrari BODY CABLE - 55049490 | Price on request | Contact us for price and availability |
| 1 | 55049491 | Ferrari BODY CABLE - 55049491 | Price on request | Contact us for price and availability |
| 1 | 55049492 | Ferrari BODY CABLE - 55049492 | Price on request | Contact us for price and availability |
| 1 | 55049493 | Ferrari BODY CABLE - 55049493 | Price on request | Contact us for price and availability |
| 1 | 55049494 | Ferrari BODY CABLE - 55049494 | Price on request | Contact us for price and availability |
| 1 | 55049495 | Ferrari BODY CABLE - 55049495 | $27,635.62 | Contact us to order |
| 1 | 55049500 | Ferrari Body Cable - 55049500 | $21,678.04 | Contact us to order |
| 1 | 55049501 | Ferrari Body Cable - 55049501 | $21,912.35 | Contact us to order |
| 1 | 55049502 | Ferrari Body Cable - 55049502 | $22,843.09 | Contact us to order |
| 1 | 55049506 | Ferrari Body Cable - 55049506 | $22,331.07 | Contact us to order |
| 1 | 55049507 | Ferrari Body Cable - 55049507 | $23,255.30 | Contact us to order |
| 1 | 55049508 | Ferrari Body Cable - 55049508 | $22,333.25 | Contact us to order |
| 1 | 55049509 | Ferrari Body Cable - 55049509 | $23,250.97 | Contact us to order |
| 1 | 55049510 | Ferrari Body Cable - 55049510 | $22,741.11 | Contact us to order |
| 1 | 55049511 | Ferrari Body Cable - 55049511 | $23,682.71 | Contact us to order |
| 2 | 55005130 | Ferrari DASHBOARD CABLE - 55005130 | Price on request | Contact us for price and availability |
| 2 | 55005131 | Ferrari DASHBOARD CABLE - 55005131 | Price on request | Contact us for price and availability |
| 2 | 55005132 | Ferrari DASHBOARD CABLE - 55005132 | Price on request | Contact us for price and availability |
| 2 | 55005133 | Ferrari DASHBOARD CABLE - 55005133 | Price on request | Contact us for price and availability |
| 2 | 55005134 | Ferrari DASHBOARD CABLE - 55005134 | Price on request | Contact us for price and availability |
| 2 | 55005135 | Ferrari DASHBOARD CABLE - 55005135 | Price on request | Contact us for price and availability |
| 2 | 55005136 | Ferrari DASHBOARD CABLE - 55005136 | Price on request | Contact us for price and availability |
| 2 | 55005137 | Ferrari DASHBOARD CABLE - 55005137 | Price on request | Contact us for price and availability |
| 2 | 55005138 | Ferrari DASHBOARD CABLE - 55005138 | $5,617.79 | Special order, ships in 7-14 days |
| 2 | 55012786 | Ferrari DASHBOARD CABLE - 55012786 | Price on request | Contact us for price and availability |
| 2 | 55012787 | Ferrari DASHBOARD CABLE - 55012787 | Price on request | Contact us for price and availability |
| 2 | 55012788 | Ferrari DASHBOARD CABLE - 55012788 | Price on request | Contact us for price and availability |
| 2 | 55012789 | Ferrari DASHBOARD CABLE - 55012789 | Price on request | Contact us for price and availability |
| 2 | 55012790 | Ferrari DASHBOARD CABLE - 55012790 | Price on request | Contact us for price and availability |
| 2 | 55012791 | Ferrari DASHBOARD CABLE - 55012791 | Price on request | Contact us for price and availability |
| 2 | 55012792 | Ferrari DASHBOARD CABLE - 55012792 | Price on request | Contact us for price and availability |
| 2 | 55012793 | Ferrari DASHBOARD CABLE - 55012793 | Price on request | Contact us for price and availability |
| 2 | 55012794 | Ferrari DASHBOARD CABLE - 55012794 | Price on request | Contact us for price and availability |
| 3 | 55034641 | Ferrari TAILGATE CABLE - 55034641 | $688.45 | Special order, ships in 7-14 days |
| 3 | 55034642 | Ferrari TAILGATE CABLE - 55034642 | $2,013.87 | Special order, ships in 7-14 days |
| 4 | 55026143 | Ferrari DRIVER SIDE DOOR CABLE - 55026143 | Price on request | Contact us for price and availability |
| 4 | 55026145 | Ferrari DRIVER SIDE DOOR CABLE - 55026145 | Price on request | Contact us for price and availability |
| 4 | 55026148 | Ferrari DRIVER SIDE DOOR CABLE - 55026148 | Price on request | Contact us for price and availability |
| 4 | 55026154 | Ferrari Driver Side Door Cable - 55026154 | $811.38 | Special order, ships in 7-14 days |
| 4 | 55026156 | Ferrari Driver Side Door Cable - 55026156 | $835.97 | Special order, ships in 7-14 days |
| 4 | 55026157 | Ferrari Driver Side Door Cable - 55026157 | $835.97 | Special order, ships in 7-14 days |
| 5 | 55026149 | Ferrari PASSENGER SIDE DOOR CABLE - 55026149 | Price on request | Contact us for price and availability |
| 5 | 55026150 | Ferrari PASSENGER SIDE DOOR CABLE - 55026150 | Price on request | Contact us for price and availability |
| 5 | 55026151 | Ferrari PASSENGER SIDE DOOR CABLE - 55026151 | Price on request | Contact us for price and availability |
| 5 | 55026158 | Ferrari Passenger Side Door Cable - 55026158 | $737.61 | Special order, ships in 7-14 days |
| 5 | 55026159 | Ferrari Passenger Side Door Cable - 55026159 | $762.20 | Special order, ships in 7-14 days |
| 5 | 55026161 | Ferrari Passenger Side Door Cable - 55026161 | $762.20 | Special order, ships in 7-14 days |
| 6 | 55005139 | Ferrari FRONT BUMPER CABLE - 55005139 | Price on request | Contact us for price and availability |
| 6 | 55005141 | Ferrari FRONT BUMPER CABLE - 55005141 | $885.15 | Special order, ships in 7-14 days |
| 6 | 55005142 | Ferrari FRONT BUMPER CABLE - 55005142 | Price on request | Contact us for price and availability |
| 6 | 55005143 | Ferrari FRONT BUMPER CABLE - 55005143 | Price on request | Contact us for price and availability |
| 7 | 55005144 | Ferrari REAR BUMPER CABLE - 55005144 | $489.54 | Special order, ships in 7-14 days |
| 7 | 55005145 | Ferrari REAR BUMPER CABLE - 55005145 | $663.86 | Special order, ships in 7-14 days |
| 7 | 55005146 | Ferrari REAR BUMPER CABLE - 55005146 | $663.86 | Special order, ships in 7-14 days |
| 7 | 55005147 | Ferrari REAR BUMPER CABLE - 55005147 | Price on request | Contact us for price and availability |
| 8 | 55009912 | Ferrari Windscreen Antenna Cable - 55009912 | $393.38 | Special order, ships in 7-14 days |
| 8 | 55009913 | Ferrari Windscreen Antenna Cable - 55009913 | $393.38 | Special order, ships in 7-14 days |
| 8 | 786754 | Ferrari Windscreen Antenna Cable - 786754 | $811.38 | Special order, ships in 7-14 days |
| 8 | 788441 | Ferrari Windscreen Antenna Cable - 788441 | $371.53 | Special order, ships in 7-14 days |
| 8 | 975476 | Ferrari Windscreen Antenna Cable - 975476 | Price on request | Contact us for price and availability |
| 9 | 888197 | Ferrari FRONT USB NIT CABLE - 888197 | $639.27 | Special order, ships in 7-14 days |
| 10 | 844388 | Ferrari Negative Battery Cable - 844388 | $159.79 | Special order, ships in 7-14 days |
| 10 | 958511 | Ferrari Negative Battery Cable - 958511 | $208.97 | Special order, ships in 7-14 days |
| 11 | 55034643 | Ferrari CENTRE TUNNEL WIRING HARNESS - 55034643 | $762.20 | Special order, ships in 7-14 days |
| 11 | 55034644 | Ferrari CENTRE TUNNEL WIRING HARNESS - 55034644 | $762.20 | Special order, ships in 7-14 days |
| 11 | 55034645 | Ferrari CENTRE TUNNEL WIRING HARNESS - 55034645 | $786.79 | Special order, ships in 7-14 days |
| 11 | 55034646 | Ferrari CENTRE TUNNEL WIRING HARNESS - 55034646 | $786.79 | Special order, ships in 7-14 days |
| 12 | 963958 | Ferrari Gearbox Ground Braid - Earth Cable - 963958 | $76.19 | Special order, ships in 7-14 days |
| 13 | 993038 | Ferrari Compl. Battery Ecu - 993038 | $417.97 | Special order, ships in 7-14 days |
| 13 | 820595 | Ferrari Part Search Results - 820595 | $344.21 | Special order, ships in 7-14 days |
| 14 | 311948 | Ferrari Ndm Usb Cable - 311948 | $491.74 | Special order, ships in 7-14 days |
| 15 | 916349 | Ferrari Vent Actuator Wiring Harness - 916349 | $24.07 | Special order, ships in 7-14 days |
| 16 | 788528 | Ferrari Antenne Eu Plancia F167 Gsx - 788528 | $614.67 | Special order, ships in 7-14 days |
| 16 | 788445 | Ferrari Dashboard Antenna Cable - 788445 | $284.11 | Special order, ships in 7-14 days |
| 16 | 975475 | Ferrari Dashboard Antenna Cable - 975475 | Price on request | Contact us for price and availability |
| 17 | 276837 | Ferrari Engine Ground - Chassis Ground Connector Braid - 276837 | $172.10 | Special order, ships in 7-14 days |
| 18 | 844387 | Ferrari GLOVE COMPARTMENT WIRING HARNESS - 844387 | Price on request | Contact us for price and availability |
| 19 | 947850 | Ferrari Battery Wiring Harness - 947850 | $110.61 | Special order, ships in 7-14 days |
| 20 | 959277 | Ferrari Briglia Airbag Passeggero F1 - 959277 | $95.87 | Special order, ships in 7-14 days |
| 21 | 302142 | Ferrari Earth Braid - 302142 | $76.19 | Special order, ships in 7-14 days |
| 22 | 945072 | Ferrari Upper Node - 945072 | $122.92 | Special order, ships in 7-14 days |
| 23 | 817373 | Ferrari Upper Node Cover - 817373 | $34.40 | Special order, ships in 7-14 days |
| 24 | 335614 | Ferrari Gps Antenna Extension Cable - 335614 | $83.57 | Special order, ships in 7-14 days |
| 25 | 261704 | Ferrari Cap Connector For ECU - 261704 | $78.66 | Special order, ships in 7-14 days |
