Ferrari 12 Cilindri Spider — [ELECTRICAL SYSTEM] - F.11 - ANTI-THEFT SYSTEM (diagram 0186)

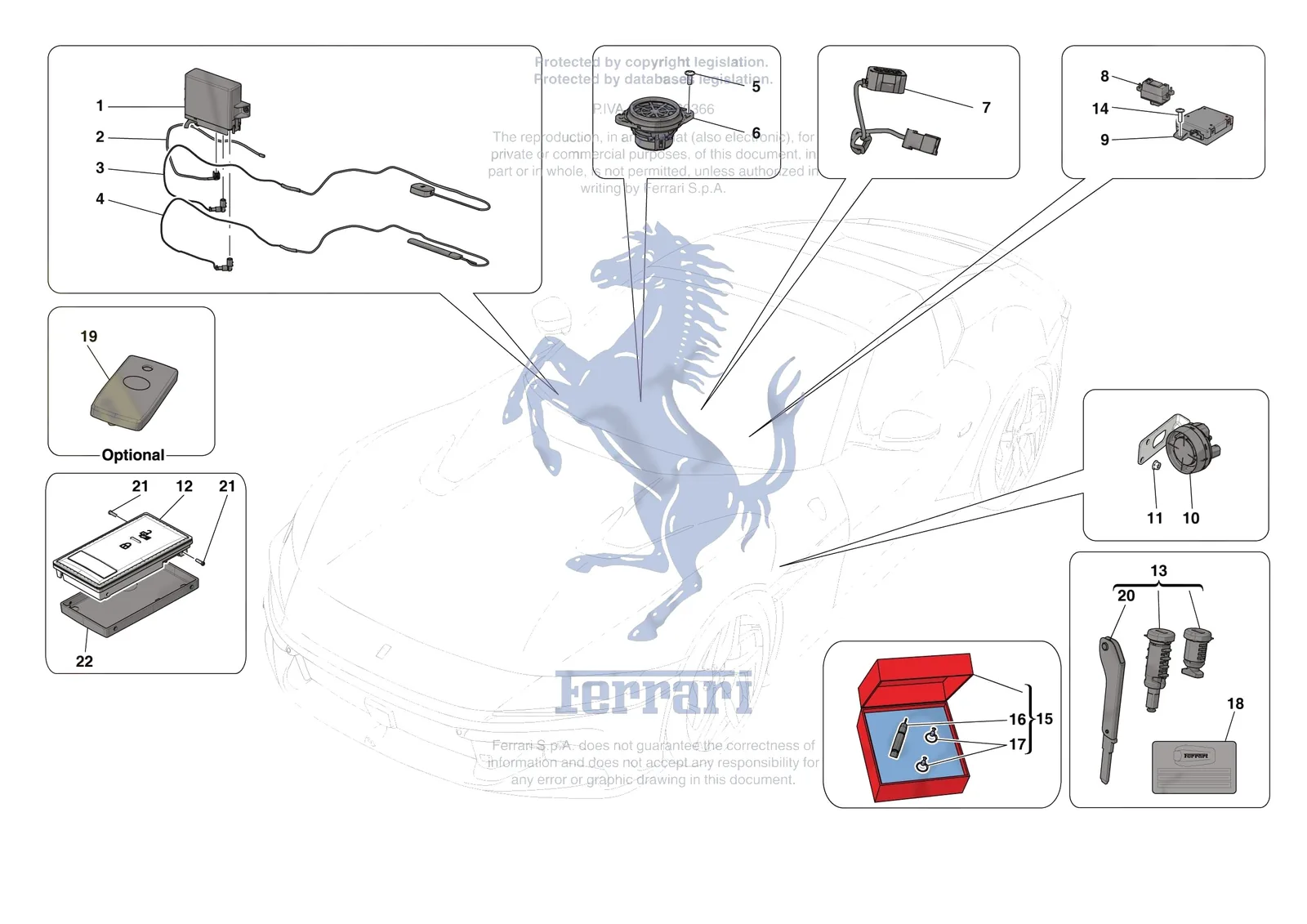

Exploded view of the [electrical system] - f.11 - anti-theft system on the Ferrari 12 Cilindri Spider, with 29 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri Spider [ELECTRICAL SYSTEM] - F.11 - ANTI-THEFT SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri-spider/0186.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 1 | 749014 | Ferrari Ecall F167 Europa - 749014 | $3,650.72 | Special order, ships in 7-14 days |
| 1 | 860473 | Ferrari ECALL TCU - 860473 | Price on request | Contact us for price and availability |
| 1 | 860390 | Ferrari TCU ECALL / SVR - 860390 | Price on request | Contact us for price and availability |
| 2 | 824398 | Ferrari RF Antenna For Svr - 824398 | $72.10 | Special order, ships in 7-14 days |
| 3 | 336506 | Ferrari Glonass Gps Antenna - 336506 | $102.69 | Special order, ships in 7-14 days |
| 4 | 336507 | Ferrari Glonass Gsm Antenna - 336507 | $102.69 | Special order, ships in 7-14 days |
| 5 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 6 | 332825 | Ferrari Glonass Speaker - 332825 | $78.66 | Special order, ships in 7-14 days |
| 7 | 333337 | Ferrari Gsm Microphone - 333337 | $319.62 | Special order, ships in 7-14 days |
| 9 | 293416 | Ferrari Master Dipole Anti-Lift Sensor - 293416 | $721.22 | Special order, ships in 7-14 days |
| 10 | 875982 | Ferrari Compl. Anti-Theft System Sir - 875982 | $284.11 | Special order, ships in 7-14 days |
| 11 | 14040611 | Ferrari Nut M6 - 14040611 | $0.57 | Available, ships in 3-6 days |
| 12 | 55075028 | Ferrari Wrench - 55075028 | $2,676.56 | Special order, ships in 7-14 days |
| 12 | 55075029 | Ferrari Wrench - 55075029 | $2,676.56 | Special order, ships in 7-14 days |
| 12 | 55075030 | Ferrari Wrench - 55075030 | Price on request | Contact us for price and availability |
| 12 | 55075031 | Ferrari Wrench - 55075031 | Price on request | Contact us for price and availability |
| 13 | 811665 | Ferrari Key And Block Kit - 811665 | $1,450.67 | Special order, ships in 7-14 days |
| 14 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 15 | 895549 | Ferrari Key Screwdriver-Ring Kit - 895549 | $368.79 | Special order, ships in 7-14 days |
| 16 | 925517 | Ferrari Screwdriver Adapter - 925517 | $179.46 | Special order, ships in 7-14 days |
| 17 | 865300 | Ferrari Key Ring - 865300 | $44.24 | Special order, ships in 7-14 days |
| 18 | 6326163 | Ferrari Secret Card Label For Keys - 6326163 | $4.39 | Special order, ships in 7-14 days |
| 19 | 824397 | Ferrari Driver Card For Svr - 824397 | $491.74 | Special order, ships in 7-14 days |
| 21 | 865301 | Ferrari Screw - Torx M 1.4 x 5 - 865301 | $1.44 | Available, ships in 3-6 days |
| 22 | 55080828 | Ferrari Key Fob - 55080828 | $565.49 | Available, ships in 3-6 days |
| 22 | 865295 | Ferrari Key Fob - 865295 | Superseded | Order 55080828 instead |
| 22 | 865703 | Ferrari Key Fob - 865703 | $1,475.26 | Special order, ships in 7-14 days |
| 22 | 923359 | Ferrari Key Fob - 923359 | $516.33 | Special order, ships in 7-14 days |
