Ferrari 12 Cilindri — [ENGINE] - B.06 - ENGINE FLYWHEEL (diagram 0009)

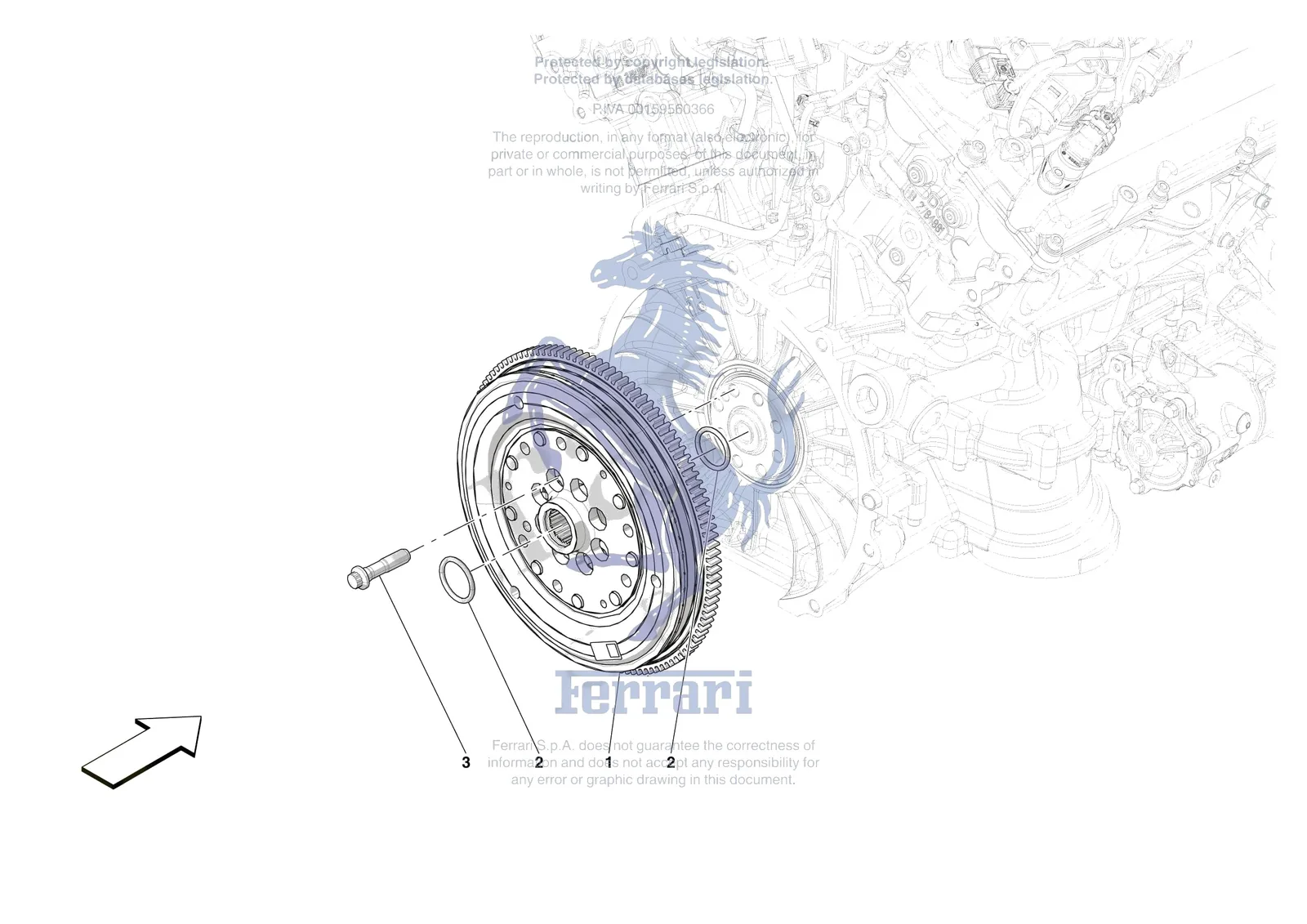

Exploded view of the [engine] - b.06 - engine flywheel on the Ferrari 12 Cilindri, with 3 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [ENGINE] - B.06 - ENGINE FLYWHEEL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0009.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 917179 | Ferrari Engine Flywheel - 917179 | $6,079.10 | Special order, ships in 7-14 days |
| 2 | 282966 | Ferrari O-Ring - 282966 | $8.72 | Available, ships in 3-6 days |
| 3 | 229907 | Ferrari Screw M10x1.25x41.5 - 229907 | $17.90 | Special order, ships in 7-14 days |
