Ferrari 12 Cilindri — [ENGINE] - B.14 - ENGINE INTAKE DUCT (diagram 0019)

Exploded view of the [engine] - b.14 - engine intake duct on the Ferrari 12 Cilindri, with 52 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

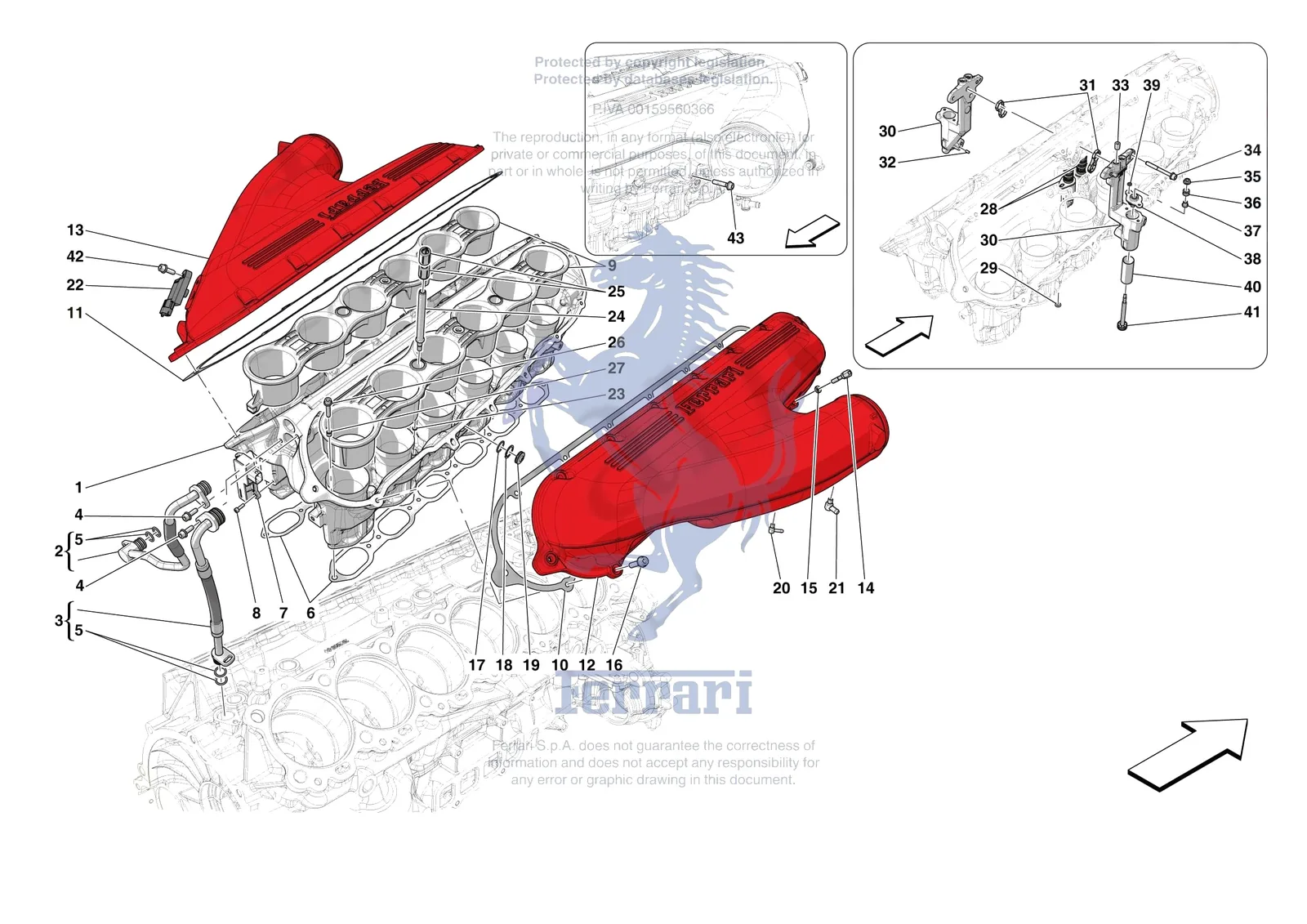

Ferrari 12 Cilindri [ENGINE] - B.14 - ENGINE INTAKE DUCT exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
314702Ferrari Bushing - 314702SupersededOrder 325432 instead
255442Ferrari Oil Pressure Regulator Valve - 255442SupersededOrder 801187 instead
269227Ferrari Oil Pressure Regulator Valve - 269227SupersededOrder 801187 instead
296017Ferrari Oil Pressure Regulator Valve - 296017SupersededOrder 801187 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
10519401Ferrari Washer - 10519401SupersededOrder 10519424 instead
13550201Ferrari Washer - 13550201SupersededOrder 10519424 instead
1918926Ferrari Intake Manifold - 918926$14,380.53Special order, ships in 7-14 days
2826323Ferrari Oil Return Pipe From Manifol - 826323$442.56Special order, ships in 7-14 days
3826344Ferrari Oil Delivery Pipe From Crank - 826344$442.56Special order, ships in 7-14 days
4231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
5287722Ferrari O-Ring 15.08 x 2.62 - 287722$9.81Available, ships in 3-6 days
6316503Ferrari Intake Manifold Gasket - 316503$34.99In stock
7313930Ferrari Position Sensor - 313930$458.95Available, ships in 3-6 days
814303024Ferrari Allen Screw M4 x 12 TCEI - 14303024$1.63Available, ships in 3-6 days
9878388Ferrari Intake Trumpets - 878388$786.79Special order, ships in 7-14 days
10898550Ferrari RH Gasket - 898550$238.47Special order, ships in 7-14 days
11898598Ferrari LH Gasket - 898598$238.47Special order, ships in 7-14 days
12887589Ferrari RH Plenum - 887589$7,470.09Special order, ships in 7-14 days
13887590Ferrari LH Plenum - 887590$7,423.25Special order, ships in 7-14 days
14214412Ferrari Stud Bolt - 214412$20.14Available, ships in 3-6 days
15125516Ferrari Washer - 125516SupersededOrder 10519424 instead
1510519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
16775072Ferrari Screw - 775072$2.13Special order, ships in 7-14 days
1714453481Ferrari O-Ring Gasket - 14453481SupersededOrder 254644 instead
17254644Ferrari O-Ring Gasket - 254644$0.77Available, ships in 3-6 days
1811058076Ferrari Ring - 11058076$0.44Available, ships in 3-6 days
19953682Ferrari Plug - 953682$68.83Special order, ships in 7-14 days
20268875Ferrari Connector - 268875$78.66Special order, ships in 7-14 days
21268877Ferrari Connector - 268877$110.61Special order, ships in 7-14 days
22283538Ferrari Intake Pressure Sensor - 283538$61.16Special order, ships in 7-14 days
2314452681Ferrari Gasket - 14452681$0.46Special order, ships in 7-14 days
24964990Ferrari Intake Trumpet Guide Rod - 964990$344.21Special order, ships in 7-14 days
25909484Ferrari Recirculating Bearing - 909484$69.92Special order, ships in 7-14 days
26231622Ferrari Screw M6 x 35 - 231622$0.65Available, ships in 3-6 days
27329629Ferrari Plastic Bush - 329629$0.33Special order, ships in 7-14 days
28801187Ferrari Oil Pressure Regulator Valve - 801187$368.79Available, ships in 3-6 days
2911181574Ferrari Washer - 11181574$0.06Available, ships in 3-6 days
30919851Ferrari Trumpet Actuator Mount - 919851$713.04Special order, ships in 7-14 days
31911648Ferrari Actuator Gasket - 911648$14.20Special order, ships in 7-14 days
32109657Ferrari Dowel - 109657$6.75Special order, ships in 7-14 days
3314326101Ferrari Threaded Connector - 14326101$2.38Special order, ships in 7-14 days
34255494Ferrari Screw - 255494$18.76Available, ships in 3-6 days
3514065921Ferrari Flanged Nut - 14065921$0.50Available, ships in 3-6 days
36325535Ferrari Rubber Cable Grommet - 325535$29.48Special order, ships in 7-14 days
37325432Ferrari Bushing - 325432$13.30Special order, ships in 7-14 days
38903893Ferrari Compl. Plug - 903893$442.56Special order, ships in 7-14 days
3914497704Ferrari Washer - 14497704$1.30Special order, ships in 7-14 days
40903872Ferrari Actuator Sleeve - 903872$204.05Special order, ships in 7-14 days
41919703Ferrari Complete Piston - 919703$368.79Special order, ships in 7-14 days
42231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
43323493Ferrari Screw - 323493$2.13Special order, ships in 7-14 days

All 12 Cilindri diagrams
