Ferrari 12 Cilindri — [ENGINE] - B.17 - INJECTOR PIPES (diagram 0022)

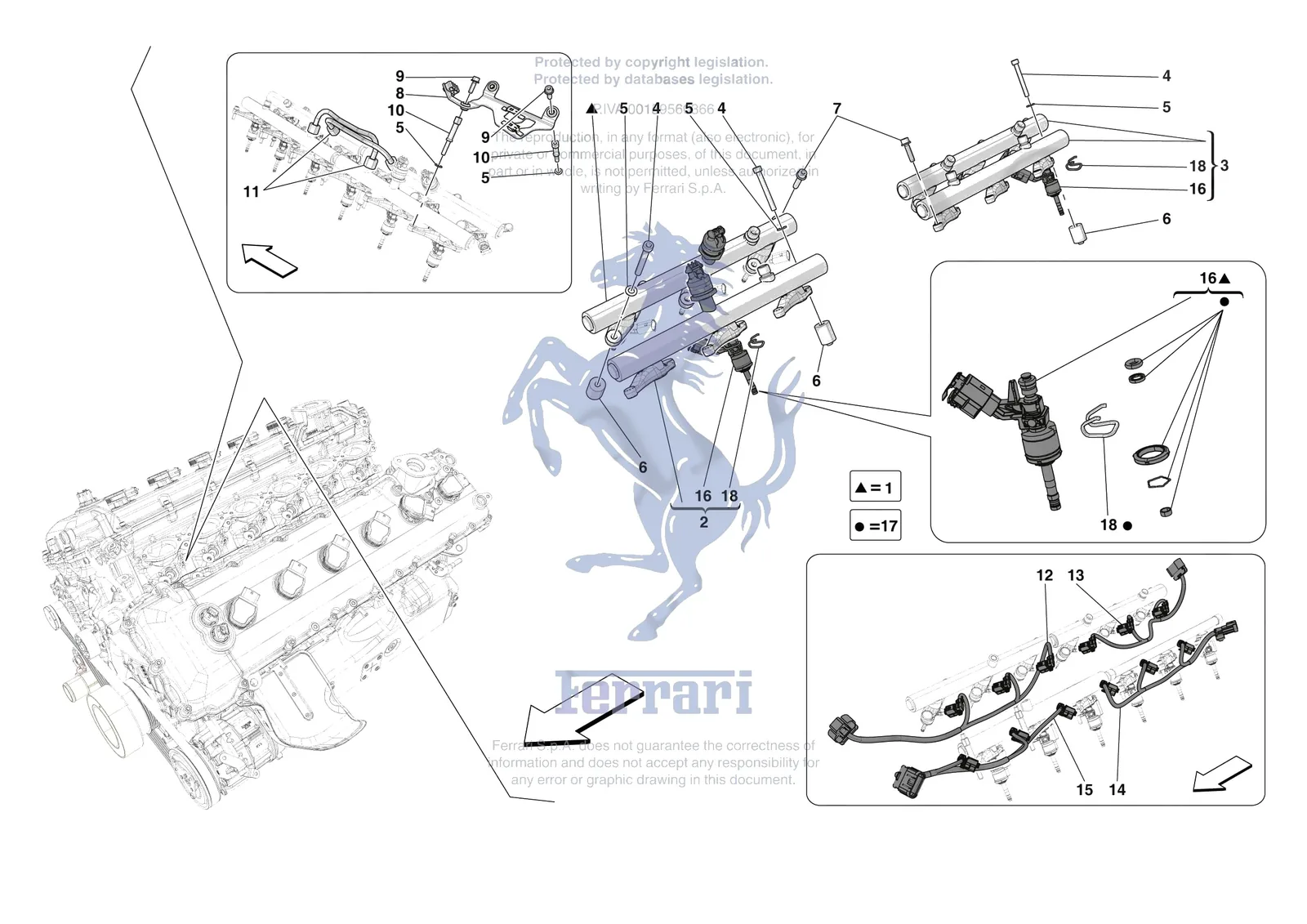

Exploded view of the [engine] - b.17 - injector pipes on the Ferrari 12 Cilindri, with 23 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [ENGINE] - B.17 - INJECTOR PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0022.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 11197779 | Ferrari Washer - 11197779 | Superseded | Order 11197774 instead | |
| 1 | 330107 | Ferrari Compl. Front RH Fuel Pipe - 330107 | Superseded | Order 794982 instead |
| 1 | 794982 | Ferrari Compl. Front RH Fuel Pipe - 794982 | $2,985.67 | Special order, ships in 7-14 days |
| 2 | 321300 | Ferrari Compl. Front LH Fuel Pipe - 321300 | Superseded | Order 794980 instead |
| 2 | 794980 | Ferrari Compl. Front LH Fuel Pipe - 794980 | $2,985.67 | Special order, ships in 7-14 days |
| 3 | 329777 | Ferrari Compl. Rear Fuel Pipe - 329777 | Superseded | Order 794983 instead |
| 3 | 794983 | Ferrari Compl. Rear Fuel Pipe - 794983 | $2,482.21 | Special order, ships in 7-14 days |
| 4 | 14306034 | Ferrari Allen Screw M6 x 50 TCEI - 14306034 | $1.04 | Available, ships in 3-6 days |
| 5 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
| 6 | 334268 | Ferrari Spacer - 334268 | $12.86 | Special order, ships in 7-14 days |
| 7 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 8 | 919365 | Ferrari Compl. Bracket - 919365 | $181.93 | Special order, ships in 7-14 days |
| 9 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 10 | 324524 | Ferrari Stud Bolt - 324524 | $14.97 | Special order, ships in 7-14 days |
| 11 | 334140 | Ferrari Fuel Pipe Connecting Front And - 334140 | $213.88 | Special order, ships in 7-14 days |
| 12 | 885857 | Ferrari Injector Wiring Harness - 885857 | $218.81 | Special order, ships in 7-14 days |
| 13 | 55013616 | Ferrari Injector Wiring Harness - 55013616 | $238.47 | Special order, ships in 7-14 days |
| 13 | 885858 | Ferrari Injector Wiring Harness - 885858 | $206.52 | Special order, ships in 7-14 days |
| 14 | 885859 | Ferrari Injector Wiring Harness - 885859 | $204.05 | Special order, ships in 7-14 days |
| 15 | 55008671 | Ferrari Injector Wiring Harness - 55008671 | $204.05 | Special order, ships in 7-14 days |
| 15 | 885860 | Ferrari Injector Wiring Harness - 885860 | $204.05 | Special order, ships in 7-14 days |
| 16 | 339179 | Ferrari Electroinjector - 339179 | $368.79 | Special order, ships in 7-14 days |
| 17 | 70007598 | Ferrari Seal Kit F152M - 70007598 | $140.13 | Special order, ships in 7-14 days |
