Ferrari 12 Cilindri — [ENGINE] - B.29 - AC COMPRESSOR (diagram 0034)

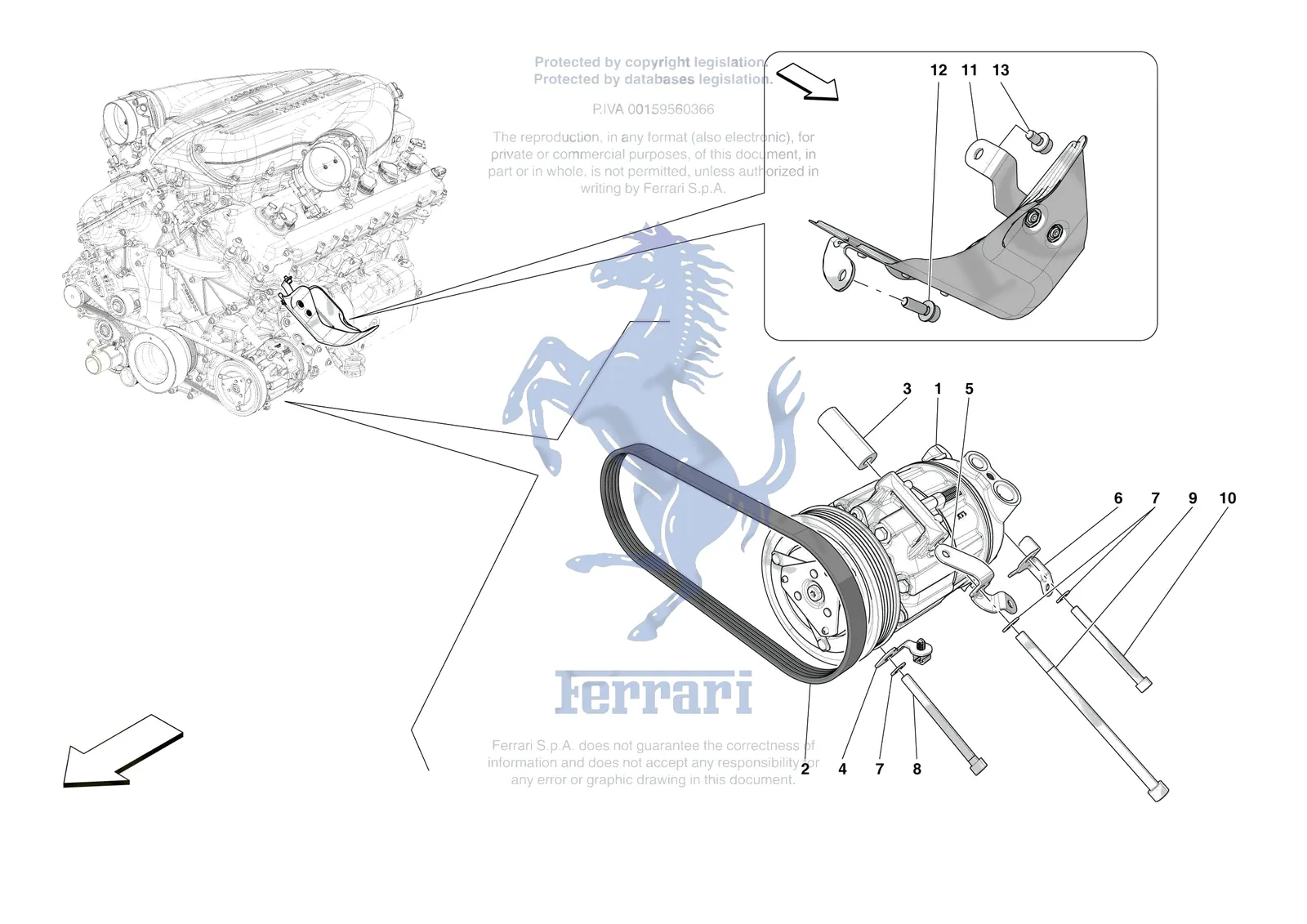

Exploded view of the [engine] - b.29 - ac compressor on the Ferrari 12 Cilindri, with 14 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [ENGINE] - B.29 - AC COMPRESSOR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0034.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 834367 | Ferrari Screw 8x25 - 834367 | Superseded | Order 231628 instead | |
| 1 | 802718 | Ferrari Compressor Mahle With Valve - 802718 | $2,039.88 | Special order, ships in 7-14 days |
| 2 | 905873 | Ferrari Belt - 905873 | $63.37 | Available, ships in 3-6 days |
| 3 | 268408 | Ferrari Spacer - 268408 | $24.02 | Special order, ships in 7-14 days |
| 4 | 938134 | Ferrari Bracket Compl. With Clip - 938134 | $83.57 | Special order, ships in 7-14 days |
| 5 | 868852 | Ferrari Ancillary Cable Fastener Bra - 868852 | $41.76 | Special order, ships in 7-14 days |
| 6 | 951368 | Ferrari Ancillaries Cable Fastener B - 951368 | $56.52 | Special order, ships in 7-14 days |
| 7 | 11193874 | Ferrari Washer D.8.4-16x1.4 - 11193874 | $0.12 | Available, ships in 3-6 days |
| 8 | 14302024 | Ferrari Screw 8x95 - 14302024 | $3.68 | Special order, ships in 7-14 days |
| 9 | 268409 | Ferrari Screw 8x145 - 268409 | $32.76 | Special order, ships in 7-14 days |
| 10 | 14307124 | Ferrari Screw M8 x 90 - 14307124 | $1.30 | Available, ships in 3-6 days |
| 11 | 339133 | Ferrari Paratia Anticalore Compress - 339133 | $368.79 | Special order, ships in 7-14 days |
| 12 | 231628 | Ferrari Screw 8x25 - 231628 | $1.15 | Special order, ships in 7-14 days |
| 13 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
