Ferrari 12 Cilindri — [GEARBOX] - C.05 - CLUTCH HOUSING (diagram 0046)

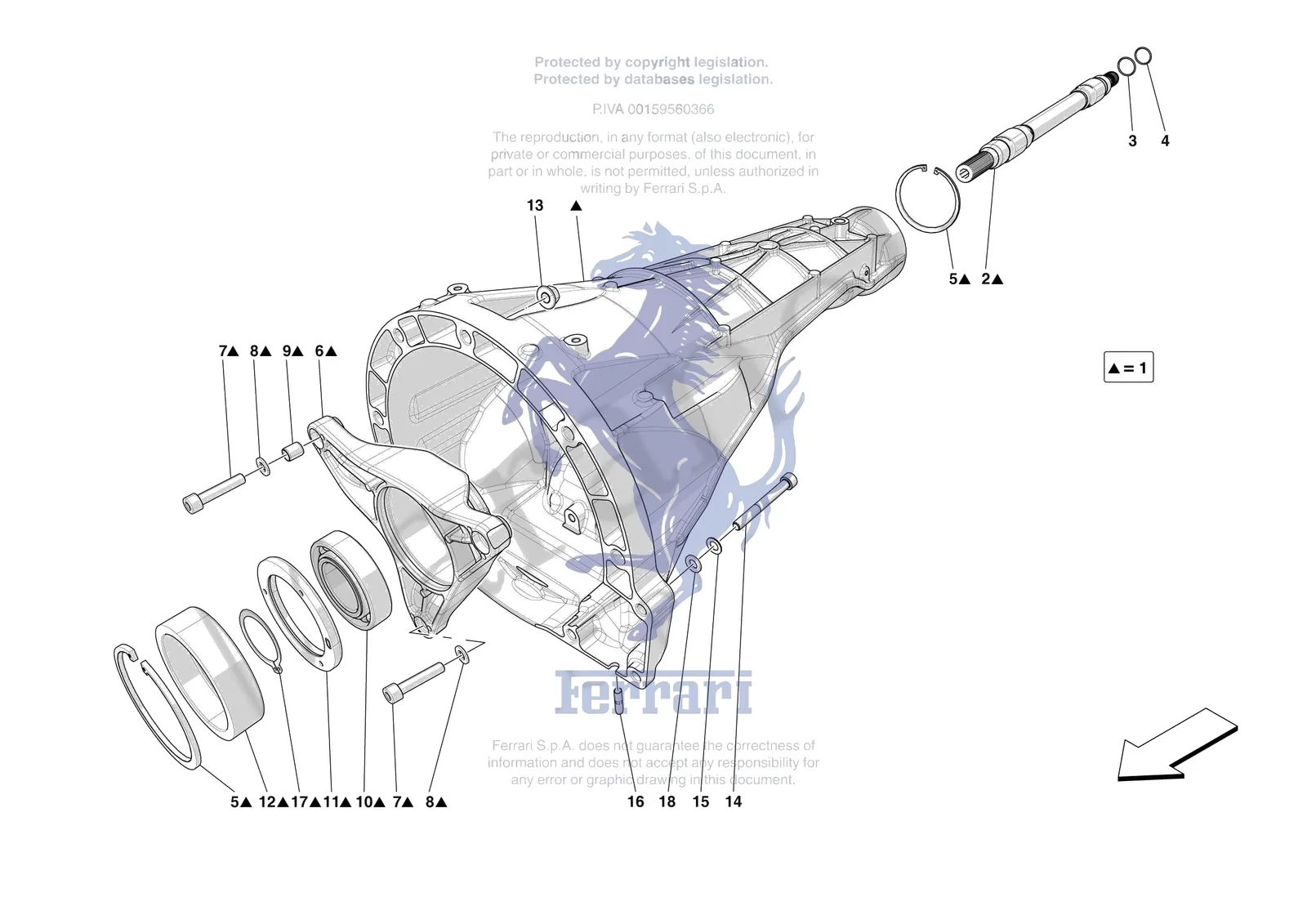

Exploded view of the [gearbox] - c.05 - clutch housing on the Ferrari 12 Cilindri, with 25 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [GEARBOX] - C.05 - CLUTCH HOUSING exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0046.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14306621 | Ferrari Screw 8X35 - 14306621 | Superseded | Order 14306624 instead | |
| 13543121 | Ferrari Stud - 13543121 | Superseded | Order 13543124 instead | |
| 10615670 | Ferrari Washer - 10615670 | Superseded | Order 12601374 instead | |
| 10615671 | Ferrari Washer - 10615671 | Superseded | Order 12601374 instead | |
| 10615674 | Ferrari Washer - 10615674 | Superseded | Order 12601374 instead | |
| 10615679 | Ferrari Washer - 10615679 | Superseded | Order 12601374 instead | |
| 12601370 | Ferrari Washer - 12601370 | Superseded | Order 12601374 instead | |
| 12601379 | Ferrari Washer - 12601379 | Superseded | Order 12601374 instead | |
| 1 | 788411 | Ferrari Compl. Transmission Housing - 788411 | $3,509.96 | Special order, ships in 7-14 days |
| 2 | 886193 | Ferrari GKN TRANSMISSION HOUSING SHAFT - 886193 | Price on request | Contact us for price and availability |
| 3 | 777627 | Ferrari O-Ring Black - 777627 | $3.91 | Special order, ships in 7-14 days |
| 4 | 777631 | Ferrari O-Ring Green - 777631 | $1.23 | Special order, ships in 7-14 days |
| 5 | 11062474 | Ferrari Snap Ring - 11062474 | $10.46 | Available, ships in 3-6 days |
| 6 | 788643 | Ferrari HOUSING BEARING MOUNTING FLANGE - 788643 | Price on request | Contact us for price and availability |
| 7 | 14306624 | Ferrari Screw 8x35mm - 14306624 | $0.52 | Special order, ships in 7-14 days |
| 8 | 12638524 | Ferrari Flat Washer 8.15x15x1.5 - 12638524 | $0.12 | Available, ships in 3-6 days |
| 9 | 102704 | Ferrari Dowel - 102704 | $6.10 | Available, ships in 3-6 days |
| 10 | 252524 | Ferrari Bearing Complete With Inner Race - 252524 | $1,349.58 | Special order, ships in 7-14 days |
| 11 | 253627 | Ferrari Containment Ring - 253627 | $393.38 | Special order, ships in 7-14 days |
| 12 | 318975 | Ferrari Snap Ring - 318975 | $524.51 | Special order, ships in 7-14 days |
| 13 | 14059421 | Ferrari Flanged Nut 10x1.25 - 14059421 | $0.92 | Available, ships in 3-6 days |
| 14 | 14309024 | Ferrari Allen Screw 8x70 - 14309024 | $2.82 | Available, ships in 3-6 days |
| 15 | 12601374 | Ferrari Wavy Washer 8mm - 12601374 | $3.12 | Available, ships in 3-6 days |
| 16 | 13543124 | Ferrari Stud Bolt M8x16 -Stem 16mm - 13543124 | $13.53 | Special order, ships in 7-14 days |
| 17 | 11068874 | Ferrari Seeger Ring D.40 - 11068874 | $32.76 | Special order, ships in 7-14 days |
