Ferrari 12 Cilindri — [MECHANICAL SYSTEM] - D.04.01 - AIR FILTER AIR INTAKE AND DUCTS (diagram 0051)

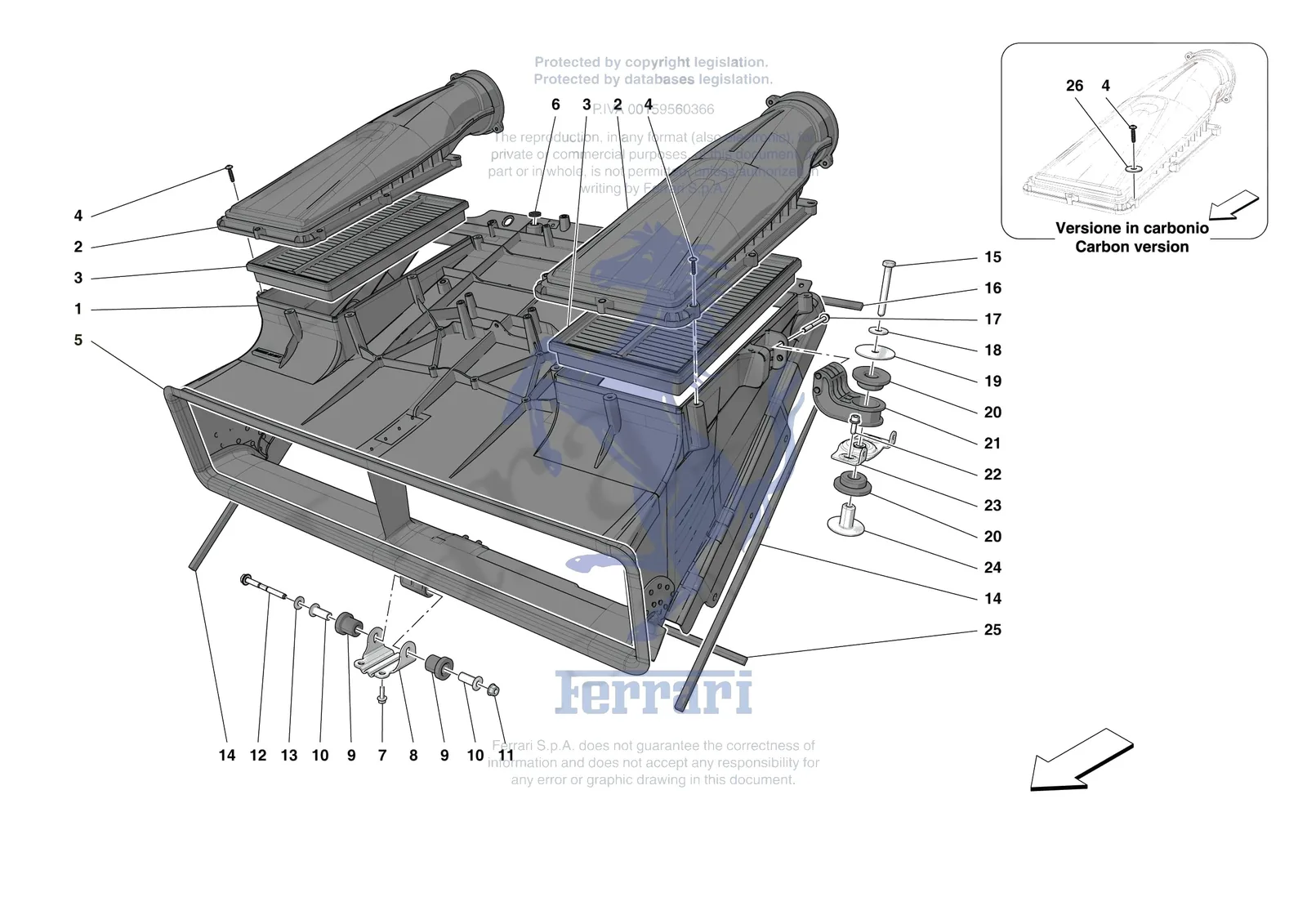

Exploded view of the [mechanical system] - d.04.01 - air filter air intake and ducts on the Ferrari 12 Cilindri, with 37 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [MECHANICAL SYSTEM] - D.04.01 - AIR FILTER AIR INTAKE AND DUCTS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0051.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 291689 | Ferrari Air Filter - 291689 | Superseded | Order 812789 instead | |
| 842754 | Ferrari Air Filter Element - 842754 | Superseded | Order 812789 instead | |
| 10413870 | Ferrari Belleville Washer - 10413870 | Superseded | Order 12646724 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 12601570 | Ferrari Washer - 12601570 | Superseded | Order 12646724 instead | |
| 12601571 | Ferrari Washer - 12601571 | Superseded | Order 12646724 instead | |
| 12646721 | Ferrari Washer - 12646721 | Superseded | Order 12646724 instead | |
| 1 | 802834 | Ferrari Engine Air Duct - 802834 | $1,475.26 | Special order, ships in 7-14 days |
| 2 | 55025431 | Ferrari Air Filter Cover - 55025431 | Superseded | Order 945321 instead |
| 2 | 55025804 | Ferrari Air Filter Cover - 55025804 | $7,247.63 | Special order, ships in 7-14 days |
| 2 | 55025805 | Ferrari Air Filter Cover - 55025805 | $8,018.06 | Special order, ships in 7-14 days |
| 2 | 945321 | Ferrari Air Filter Cover - 945321 | $240.94 | Special order, ships in 7-14 days |
| 3 | 802766 | Ferrari Air Filter - 802766 | $327.81 | Available, ships in 3-6 days |
| 3 | 812789 | Ferrari Air Filter - 812789 | $298.98 | In stock |
| 4 | 308398 | Ferrari Screw - 308398 | $0.92 | Special order, ships in 7-14 days |
| 5 | 999560 | Ferrari Guarnizione Accoppiamento Pa - 999560 | $98.32 | Special order, ships in 7-14 days |
| 6 | 85663600 | Ferrari Rubber Seal - 85663600 | $17.19 | Special order, ships in 7-14 days |
| 7 | 16286124 | Ferrari Screw M6x20 - 16286124 | $0.71 | Special order, ships in 7-14 days |
| 8 | 55014781 | Ferrari Front Engine Air Cowl Fasten - 55014781 | $90.95 | Special order, ships in 7-14 days |
| 9 | 197584 | Ferrari Rubber Bushing - 197584 | $5.44 | Available, ships in 3-6 days |
| 10 | 197585 | Ferrari Bushing - 197585 | $9.07 | Special order, ships in 7-14 days |
| 11 | 14058511 | Ferrari Nut M8 x 8 - 14058511 | $0.40 | Special order, ships in 7-14 days |
| 12 | 83743900 | Ferrari Screw M8 x 90 - 83743900 | $6.96 | Available, ships in 3-6 days |
| 13 | 12646724 | Ferrari Washer 8.45-20x2 - 12646724 | $0.19 | Available, ships in 3-6 days |
| 14 | 849686 | Ferrari Guarnizione Radiatore Latera - 849686 | $15.72 | Special order, ships in 7-14 days |
| 15 | 16044534 | Ferrari Screw M8 x 65 - 16044534 | $3.03 | Available, ships in 3-6 days |
| 16 | 849801 | Ferrari Guarnizione Radiatore Poster - 849801 | $17.23 | Special order, ships in 7-14 days |
| 17 | 231626 | Ferrari Screw M6 x 70 - 231626 | $1.61 | Available, ships in 3-6 days |
| 18 | 13578321 | Ferrari Washer D.8.15-24x2 - 13578321 | $1.04 | Available, ships in 3-6 days |
| 19 | 227430 | Ferrari Washer D.50-8.5 - 227430 | $4.12 | Available, ships in 3-6 days |
| 20 | 138926 | Ferrari Rubber Spacer - 138926 | $8.72 | Available, ships in 3-6 days |
| 21 | 849970 | Ferrari Cowl Mounting Bracket - 849970 | $61.45 | Special order, ships in 7-14 days |
| 22 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 23 | 340839 | Ferrari Duct Adjuster - 340839 | $36.86 | Special order, ships in 7-14 days |
| 24 | 343007 | Ferrari Bush for Upper Duct Brackets - 343007 | $36.86 | Special order, ships in 7-14 days |
| 25 | 849965 | Ferrari Guarnizione Radiatore Anteri - 849965 | $20.09 | Special order, ships in 7-14 days |
| 26 | 86321000 | Ferrari Washer - 86321000 | $12.00 | Special order, ships in 7-14 days |
