Ferrari 12 Cilindri — [MECHANICAL SYSTEM] - D.08.02 - EXHAUST SYSTEM - REAR (diagram 0057)
Exploded view of the [mechanical system] - d.08.02 - exhaust system - rear on the Ferrari 12 Cilindri, with 39 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

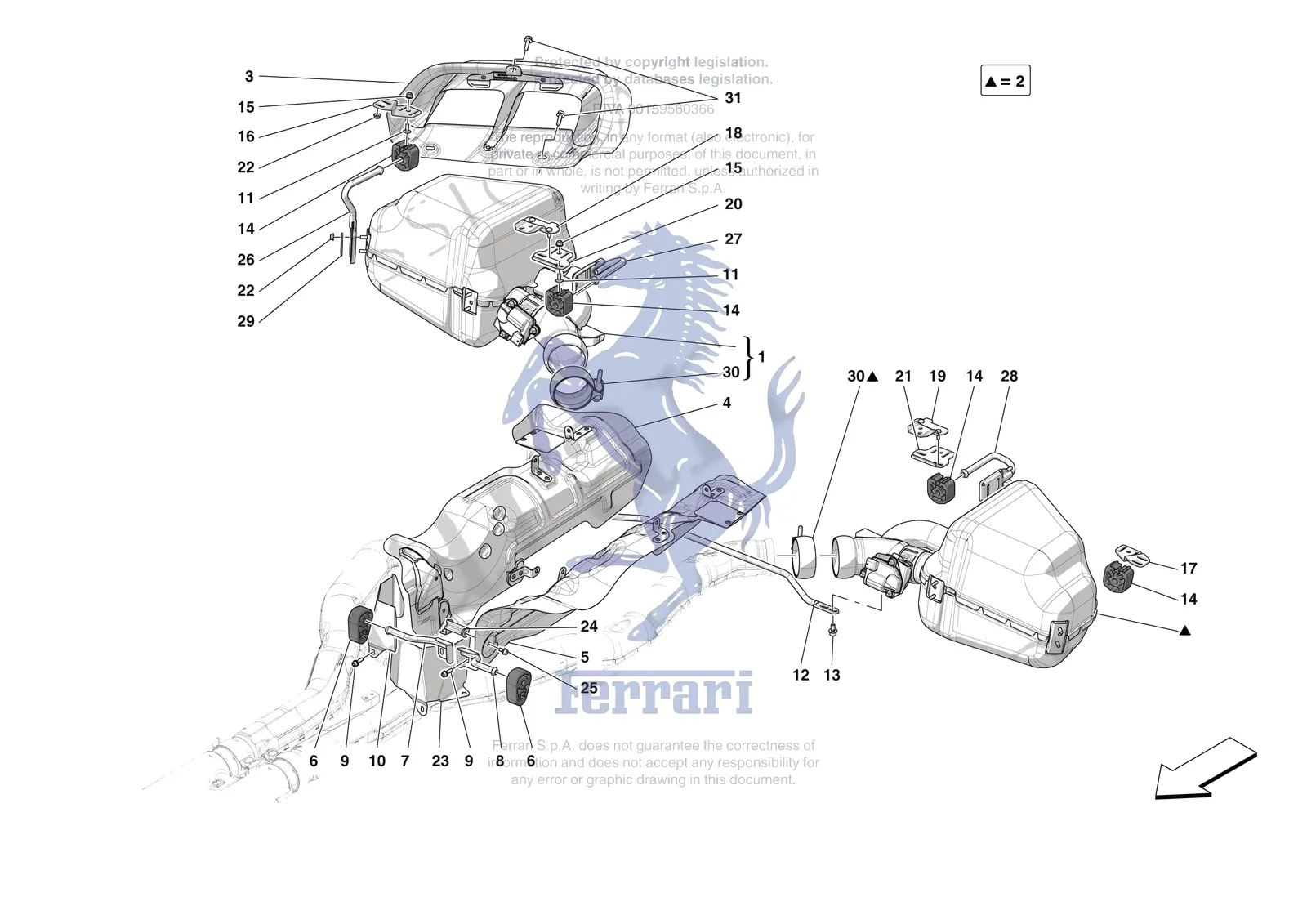

![Ferrari 12 Cilindri [MECHANICAL SYSTEM] - D.08.02 - EXHAUST SYSTEM - REAR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0057.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 1 | 904288 | Ferrari Compl. RH Otop Exhaust Silen - 904288 | $4,943.63 | Special order, ships in 7-14 days |
| 2 | 904217 | Ferrari Compl. LH Otop Exhaust Silen - 904217 | $4,939.47 | Special order, ships in 7-14 days |
| 3 | 55035114 | Ferrari LH Cosmetic Cover - 55035114 | $2,932.12 | Special order, ships in 7-14 days |
| 3 | 55035116 | Ferrari LH Cosmetic Cover - 55035116 | $3,494.87 | Special order, ships in 7-14 days |
| 3 | 55035118 | Ferrari LH Cosmetic Cover - 55035118 | $1,998.24 | Special order, ships in 7-14 days |
| 3 | 55035115 | Ferrari RH Cosmetic Trim - 55035115 | $2,932.12 | Special order, ships in 7-14 days |
| 3 | 55035117 | Ferrari RH Cosmetic Trim - 55035117 | $3,494.87 | Special order, ships in 7-14 days |
| 3 | 55035119 | Ferrari RH Cosmetic Trim - 55035119 | $1,998.24 | Special order, ships in 7-14 days |
| 4 | 918722 | Ferrari Riparo Calore Cambiodx Cpl - 918722 | $344.21 | Special order, ships in 7-14 days |
| 5 | 918724 | Ferrari Riparo Calore Cambiosx Cpl - 918724 | $344.21 | Special order, ships in 7-14 days |
| 6 | 307258 | Ferrari Plug - 307258 | $41.76 | Special order, ships in 7-14 days |
| 7 | 868449 | Ferrari RH Rear Extension Bracket - 868449 | $127.82 | Special order, ships in 7-14 days |
| 8 | 868454 | Ferrari LH Rear Extension Bracket - 868454 | $127.82 | Special order, ships in 7-14 days |
| 9 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 10 | 958368 | Ferrari Riparo Su Supporto Ant. Dx C - 958368 | $68.83 | Special order, ships in 7-14 days |
| 11 | 774175 | Ferrari M6X16 SCREW - 774175 | Price on request | Contact us for price and availability |
| 12 | 868460 | Ferrari Rear Silencer Crosspiece - 868460 | $226.19 | Special order, ships in 7-14 days |
| 13 | 231627 | Ferrari Screw M8 x 16 - 231627 | $1.25 | Available, ships in 3-6 days |
| 14 | 289529 | Ferrari Rubber Exhaust Mount - 289529 | $74.30 | Available, ships in 3-6 days |
| 15 | 14058421 | Ferrari Nut M6 x 6 - 14058421 | $2.38 | Available, ships in 3-6 days |
| 16 | 55005326 | Ferrari RH Bracket - 55005326 | $49.14 | Special order, ships in 7-14 days |
| 17 | 55005327 | Ferrari LH Bracket - 55005327 | $49.14 | Special order, ships in 7-14 days |
| 18 | 868488 | Ferrari RH Silencer Fastener Bracket - 868488 | $66.35 | Special order, ships in 7-14 days |
| 19 | 868491 | Ferrari LH Silencer Fastener Bracket - 868491 | $66.35 | Special order, ships in 7-14 days |
| 20 | 989514 | Ferrari RH Rear Bracket - 989514 | $44.24 | Special order, ships in 7-14 days |
| 21 | 989513 | Ferrari LH Rear Bracket - 989513 | $44.24 | Special order, ships in 7-14 days |
| 22 | 14059211 | Ferrari Flanged Nut - 14059211 | $0.13 | Available, ships in 3-6 days |
| 23 | 828871 | Ferrari Riparo Calore Supp. Ant. Cam - 828871 | $63.90 | Special order, ships in 7-14 days |
| 24 | 918728 | Ferrari Front Bracket - 918728 | $31.93 | Special order, ships in 7-14 days |
| 25 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 26 | 55006175 | Ferrari LH OUTER SILENCER FASTENER BRACKET - 55006175 | $144.38 | Special order, ships in 7-14 days |
| 26 | 55006176 | Ferrari RH OUTER SILENCER FASTENER BRACKET - 55006176 | Price on request | Contact us for price and availability |
| 27 | 55006171 | Ferrari RH INNER SILENCER FASTENER BRACKET - 55006171 | Price on request | Contact us for price and availability |
| 28 | 55006002 | Ferrari LH INNER SILENCER FASTENER BRACKET - 55006002 | $183.56 | Special order, ships in 7-14 days |
| 29 | 321116 | Ferrari Plate - 321116 | $9.07 | Special order, ships in 7-14 days |
| 30 | 270454 | Ferrari Clamp D.70mm - 270454 | $28.39 | Available, ships in 3-6 days |
| 31 | 55034130 | Ferrari Vite Tef M6X8 - 55034130 | $1.67 | Special order, ships in 7-14 days |
