Ferrari 12 Cilindri — [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM (diagram 0062)

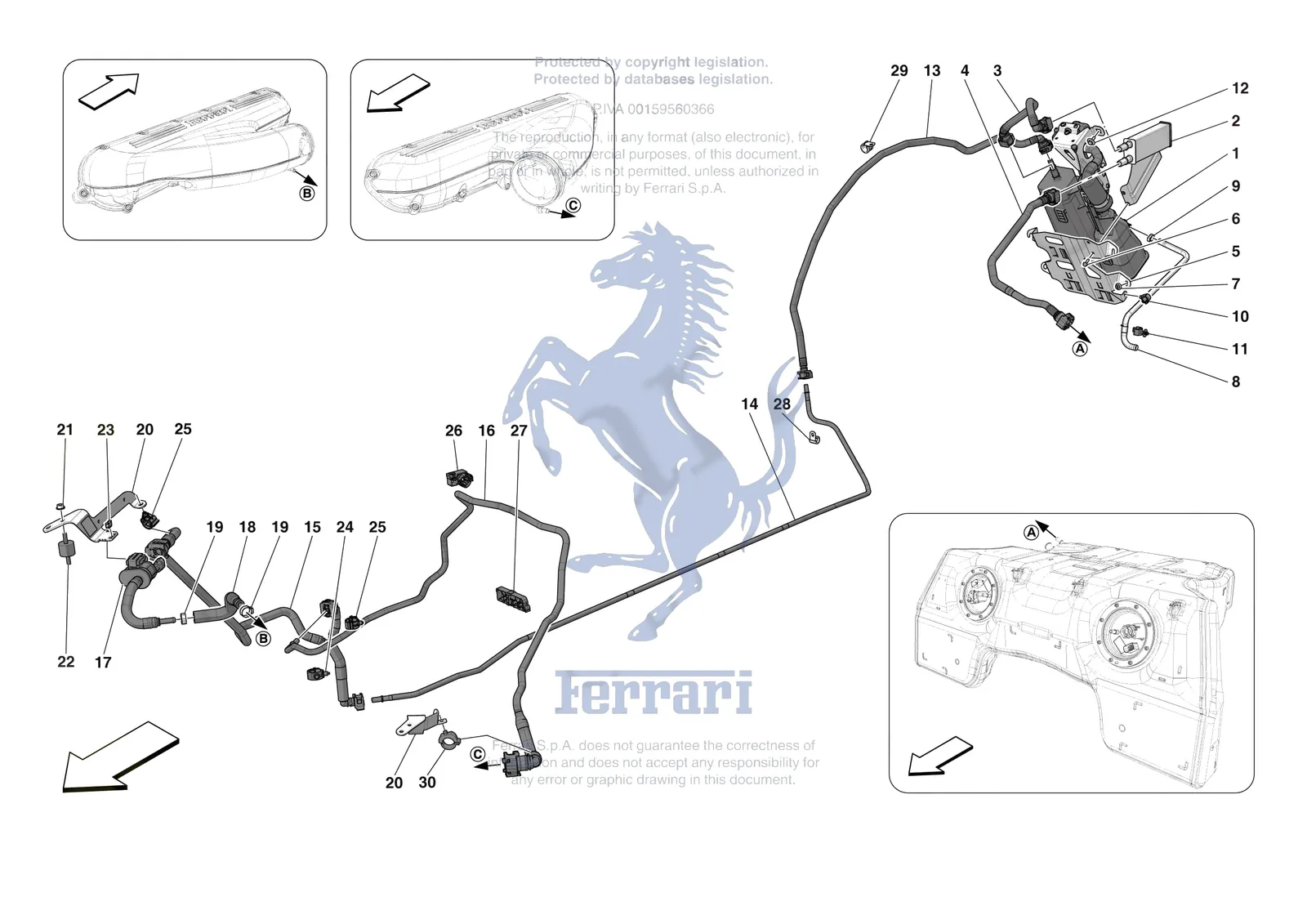

Exploded view of the [mechanical system] - d.13 - evaporative emissions control system on the Ferrari 12 Cilindri, with 37 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0062.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 198253 | Ferrari Clip - 198253 | $7.40 | Special order, ships in 7-14 days | |
| 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead | |
| 1 | 957724 | Ferrari Compl. Vapour Filter - 957724 | $1,956.62 | Special order, ships in 7-14 days |
| 2 | 899326 | Ferrari Compl. Vapour Separator - 899326 | $660.87 | Special order, ships in 7-14 days |
| 3 | 835655 | Ferrari PIPE FROM SEPARATOR TO CANISTER - 835655 | Price on request | Contact us for price and availability |
| 4 | 943873 | Ferrari EVAPORATIVE EMISSIONS CONTROL SYSTEM PIPE FROM TANK TO SEPARATOR - 943873 | Price on request | Contact us for price and availability |
| 5 | 945116 | Ferrari Canister Mounting Bracket - 945116 | $194.22 | Special order, ships in 7-14 days |
| 6 | 16285127 | Ferrari Screw M5 x 16 - 16285127 | $1.05 | Special order, ships in 7-14 days |
| 7 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 8 | 943891 | Ferrari OBD AIR PUMP INLET PIPE - 943891 | $156.63 | Special order, ships in 7-14 days |
| 9 | 10716470 | Ferrari Collar - 10716470 | $2.59 | Available, ships in 3-6 days |
| 10 | 206536 | Ferrari Clip D.14 - 206536 | $0.92 | Special order, ships in 7-14 days |
| 11 | 331518 | Ferrari Clip - 331518 | $3.26 | Special order, ships in 7-14 days |
| 12 | 81290900 | Ferrari Screw With Double Washer - 81290900 | $1.42 | In stock |
| 13 | 55046684 | Ferrari Evaporative Emissions Contro - 55046684 | $860.56 | Special order, ships in 7-14 days |
| 13 | 777754 | Ferrari EVAPORATIVE EMISSIONS CONTROL SYSTEM PIPE FROM CANISTER TO UNDERBODY PIPE - - 777754 | Price on request | Contact us for price and availability |
| 14 | 777755 | Ferrari UNDERBODY EVAPORATIVE EMISSIONS CONTROL SYSTEM PIPE - 777755 | Price on request | Contact us for price and availability |
| 15 | 787090 | Ferrari EVAPORATIVE EMISSIONS CONTROL SYSTEM PIPE FROM UNDERBODY PIPE TO RH VALVE - 787090 | Price on request | Contact us for price and availability |
| 16 | 55000021 | Ferrari EVAPORATIVE EMISSIONS CONTROL SYSTEM PIPE FROM UNDERBODY PIPE TO LH VALVE - 55000021 | Price on request | Contact us for price and availability |
| 17 | 750221 | Ferrari Compl. LH Evaporative Emissi - 750221 | $319.62 | Special order, ships in 7-14 days |
| 17 | 835656 | Ferrari Compl. RH Evaporative Emissi - 835656 | $319.62 | Special order, ships in 7-14 days |
| 18 | 750196 | Ferrari LH EVAPORATIVE EMISSIONS CONTROL SYSTEM HOSE - 750196 | $69.59 | Special order, ships in 7-14 days |
| 18 | 799445 | Ferrari RH EVAPORATIVE EMISSIONS CONTROL SYSTEM HOSE - 799445 | Price on request | Contact us for price and availability |
| 19 | 13434670 | Ferrari Screw Collar D16.2mm - 13434670 | $1.44 | Available, ships in 3-6 days |
| 20 | 55059498 | Ferrari LH Flush Valve Bracket - 55059498 | $81.11 | Special order, ships in 7-14 days |
| 20 | 889527 | Ferrari LH Flush Valve Bracket - 889527 | Superseded | Order 55059498 instead |
| 20 | 55059772 | Ferrari RH Flush Valve Bracket - 55059772 | $73.73 | Special order, ships in 7-14 days |
| 20 | 889521 | Ferrari RH Flush Valve Bracket - 889521 | Superseded | Order 55059772 instead |
| 21 | 14040614 | Ferrari Flanged Nut 6mm - 14040614 | $0.27 | Available, ships in 3-6 days |
| 22 | 897379 | Ferrari Rubber Bushing - 897379 | $18.42 | Special order, ships in 7-14 days |
| 23 | 967402 | Ferrari Metal Clip 46 X 18 - 967402 | $6.96 | Special order, ships in 7-14 days |
| 24 | 322519 | Ferrari CLIP - 322519 | Price on request | Contact us for price and availability |
| 25 | 259508 | Ferrari Clip 15.8mm-18.5mm - 259508 | $1.25 | Special order, ships in 7-14 days |
| 26 | 298580 | Ferrari Clip - 298580 | $7.19 | Special order, ships in 7-14 days |
| 27 | 299493 | Ferrari Clip - 299493 | $2.13 | Special order, ships in 7-14 days |
| 29 | 10441690 | Ferrari P Clip D18mm - 10441690 | $3.91 | Special order, ships in 7-14 days |
| 30 | 199592 | Ferrari Clip - 199592 | $7.19 | Special order, ships in 7-14 days |
