Ferrari 12 Cilindri — [MECHANICAL SYSTEM] - D.14 - ENGINE COOLING SYSTEM RADIATORS (diagram 0063)

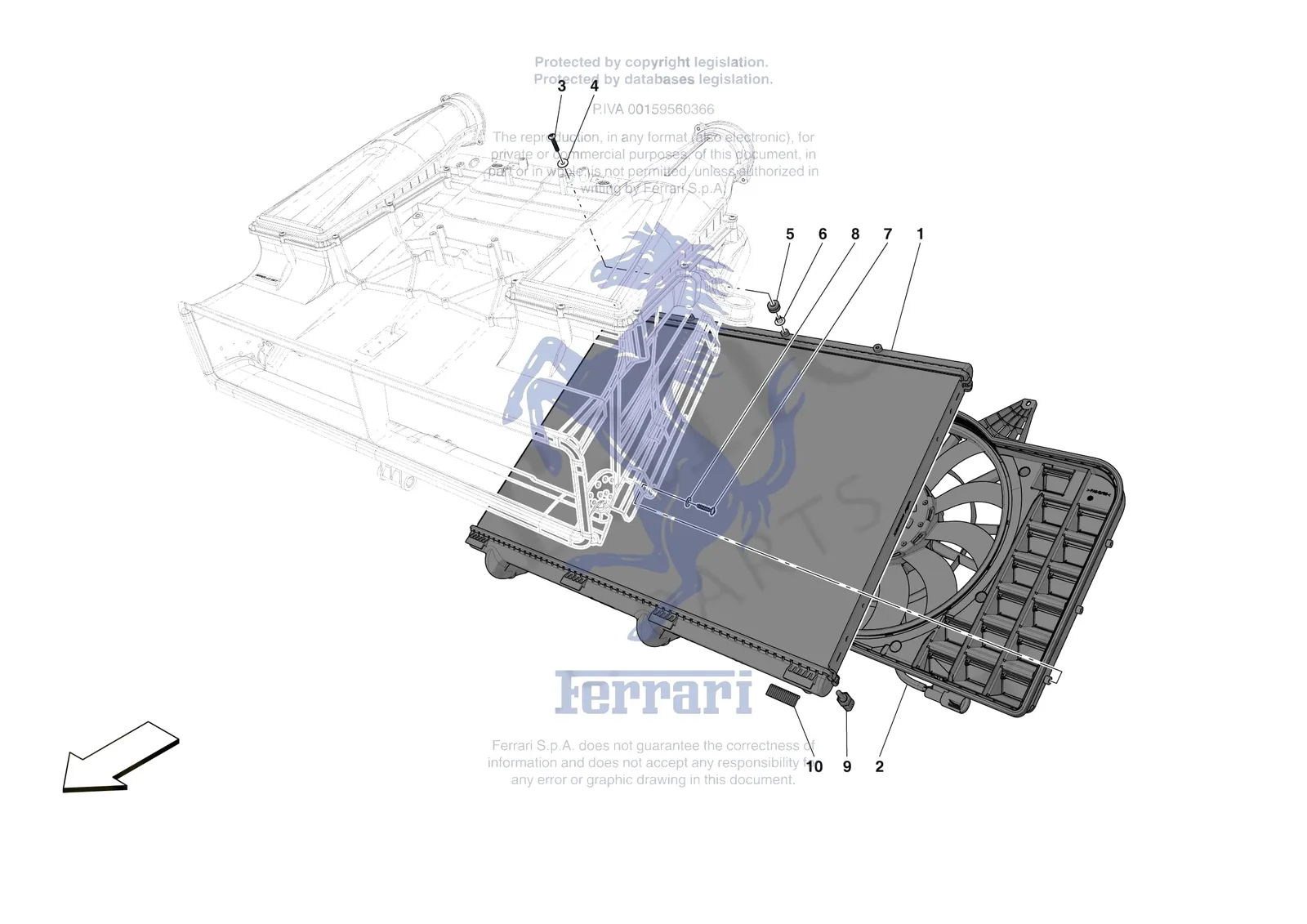

Exploded view of the [mechanical system] - d.14 - engine cooling system radiators on the Ferrari 12 Cilindri, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [MECHANICAL SYSTEM] - D.14 - ENGINE COOLING SYSTEM RADIATORS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0063.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 788816 | Ferrari Engine Water Radiator - 788816 | $2,866.26 | Special order, ships in 7-14 days |
| 2 | 770903 | Ferrari Electric Fan Cowl - 770903 | $2,248.03 | Special order, ships in 7-14 days |
| 3 | 750767 | Ferrari Screw - 750767 | $5.86 | Special order, ships in 7-14 days |
| 4 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 5 | 103549 | Ferrari Grommet - 103549 | $2.80 | In stock |
| 6 | 149707 | Ferrari Spacer - 149707 | $2.13 | Available, ships in 3-6 days |
| 7 | 308398 | Ferrari Screw - 308398 | $0.92 | Special order, ships in 7-14 days |
| 8 | 12644401 | Ferrari Washer - 12644401 | $0.08 | Available, ships in 3-6 days |
| 9 | 180137 | Ferrari/Maserati Water Temperature Sender / Sensor - 180137 | $25.19 | In stock |
| 10 | 750523 | Ferrari Lower Damper On Duct - 750523 | $16.94 | Special order, ships in 7-14 days |
