Ferrari 12 Cilindri — [MECHANICAL SYSTEM] - D.15 - EXPANSION TANK (diagram 0064)

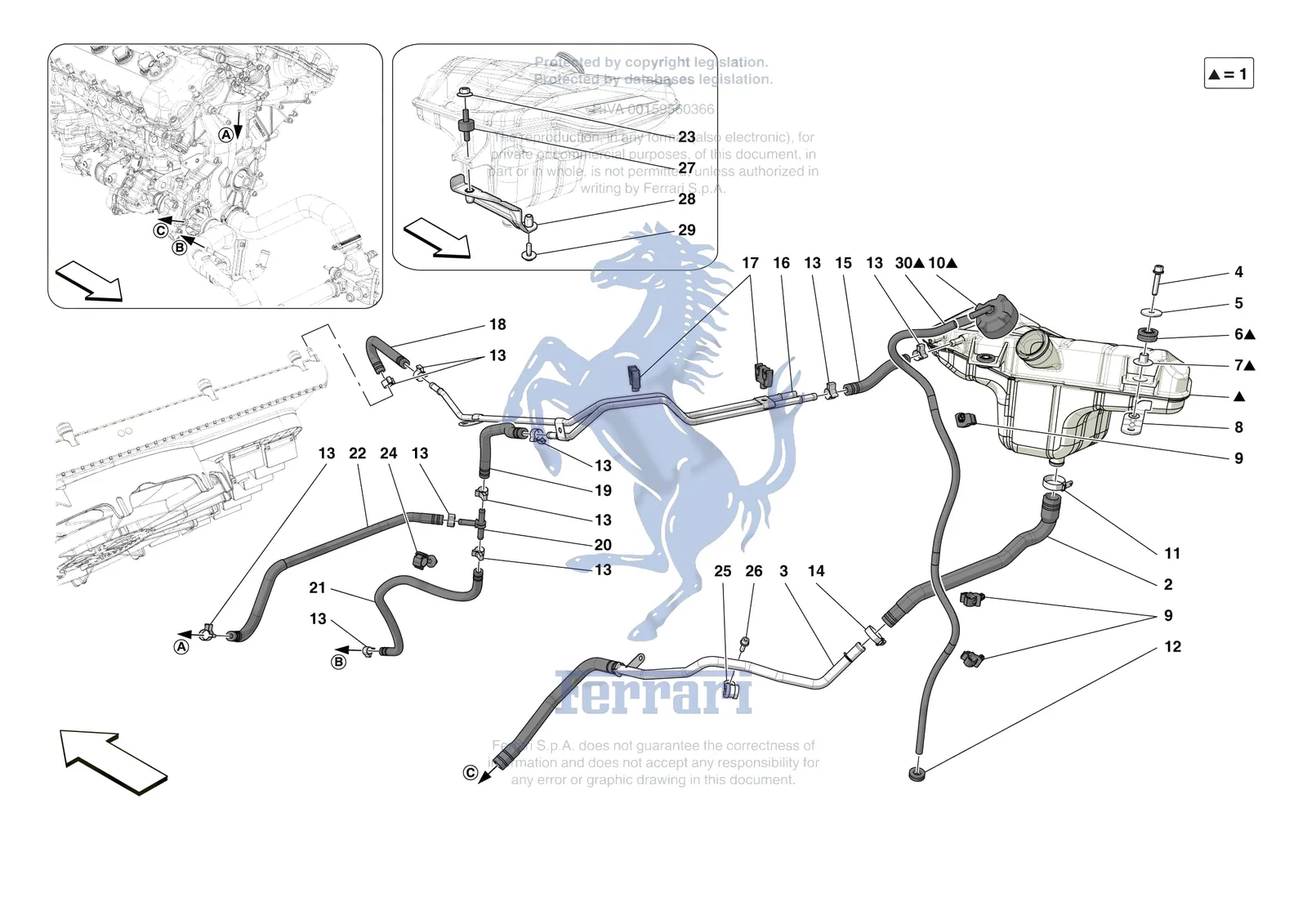

Exploded view of the [mechanical system] - d.15 - expansion tank on the Ferrari 12 Cilindri, with 40 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [MECHANICAL SYSTEM] - D.15 - EXPANSION TANK exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0064.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 262112 | Ferrari Collar - 262112 | Superseded | Order 262111 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead | |
| 10860270 | Ferrari Screw Collar - 10860270 | $1.94 | Available, ships in 3-6 days | |
| 10860370 | Ferrari Screw Collar - 10860370 | $3.26 | Special order, ships in 7-14 days | |
| 13127770 | Ferrari Screw Collar - 13127770 | $2.82 | Special order, ships in 7-14 days | |
| 268210 | Ferrari Screw Collar - 268210 | $6.32 | Special order, ships in 7-14 days | |
| 14498804 | Ferrari Washer - 14498804 | Superseded | Order 14498824 instead | |
| 1 | 833660 | Ferrari Compl. Expansion Tank - 833660 | $295.03 | Special order, ships in 7-14 days |
| 2 | 856343 | Ferrari HEADER TANK FILLER PIPE - 856343 | Price on request | Contact us for price and availability |
| 3 | 55051748 | Ferrari Compl. Tank Outlet Pipe - 55051748 | Superseded | Order 851138 instead |
| 3 | 851138 | Ferrari Compl. Tank Outlet Pipe - 851138 | $417.97 | Special order, ships in 7-14 days |
| 4 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
| 5 | 12640624 | Ferrari Plain Washer 6mm - 12640624 | $0.31 | Available, ships in 3-6 days |
| 6 | 286492 | Ferrari Cable Grommet - 286492 | $66.35 | Special order, ships in 7-14 days |
| 7 | 286491 | Ferrari Spacer - 286491 | $66.35 | Special order, ships in 7-14 days |
| 8 | 851219 | Ferrari Bracket - 851219 | $63.90 | Special order, ships in 7-14 days |
| 9 | 262559 | Ferrari Clip - 262559 | $1.78 | Available, ships in 3-6 days |
| 10 | 145030 | Ferrari Radiator Cap - 145030 | $89.98 | In stock |
| 11 | 262111 | Ferrari Screw Collar - 262111 | $3.03 | Special order, ships in 7-14 days |
| 12 | 10397380 | Ferrari Ring - 10397380 | $2.82 | Available, ships in 3-6 days |
| 13 | 13125470 | Ferrari Collar - 13125470 | Superseded | Order 13126970 instead |
| 14 | 262109 | Ferrari Screw Collar - 262109 | $2.01 | Available, ships in 3-6 days |
| 15 | 288386 | Ferrari Rubber Pipe 7-14X107 - 288386 | $29.48 | Available, ships in 3-6 days |
| 16 | 851107 | Ferrari Pipes - 851107 | $417.97 | Special order, ships in 7-14 days |
| 17 | 198259 | Ferrari Clip - 198259 | $13.74 | Special order, ships in 7-14 days |
| 18 | 288387 | Ferrari Rubber Pipe D.7-14 - 288387 | $78.66 | Available, ships in 3-6 days |
| 19 | 762612 | Ferrari Tubo Gomma D. 7-14X200 - 762612 | $39.31 | Special order, ships in 7-14 days |
| 20 | 281899 | Ferrari 3 Way Union With Bracket Complete - 281899 | $6.31 | Special order, ships in 7-14 days |
| 21 | 812904 | Ferrari RUBBER PIPE - 812904 | Price on request | Contact us for price and availability |
| 22 | 851148 | Ferrari VENT PIPE - 851148 | $88.49 | Special order, ships in 7-14 days |
| 23 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 23 | 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead |
| 24 | 339343 | Ferrari Clip - 339343 | $5.65 | Special order, ships in 7-14 days |
| 25 | 10450390 | Ferrari Bracket with Sheath D.14mm - 10450390 | $4.35 | Special order, ships in 7-14 days |
| 26 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 27 | 267798 | Ferrari Plug - 267798 | $15.47 | Special order, ships in 7-14 days |
| 28 | 975262 | Ferrari Bracket - 975262 | $90.95 | Special order, ships in 7-14 days |
| 29 | 792394 | Ferrari Screw TE M6 x 18 - 792394 | $0.84 | Available, ships in 3-6 days |
| 30 | 953144 | Ferrari HEADER TANK DRAIN PIPE - 953144 | Price on request | Contact us for price and availability |
