Ferrari 12 Cilindri — [MECHANICAL SYSTEM] - D.16 - COOLING SYSTEM PIPES (diagram 0065)

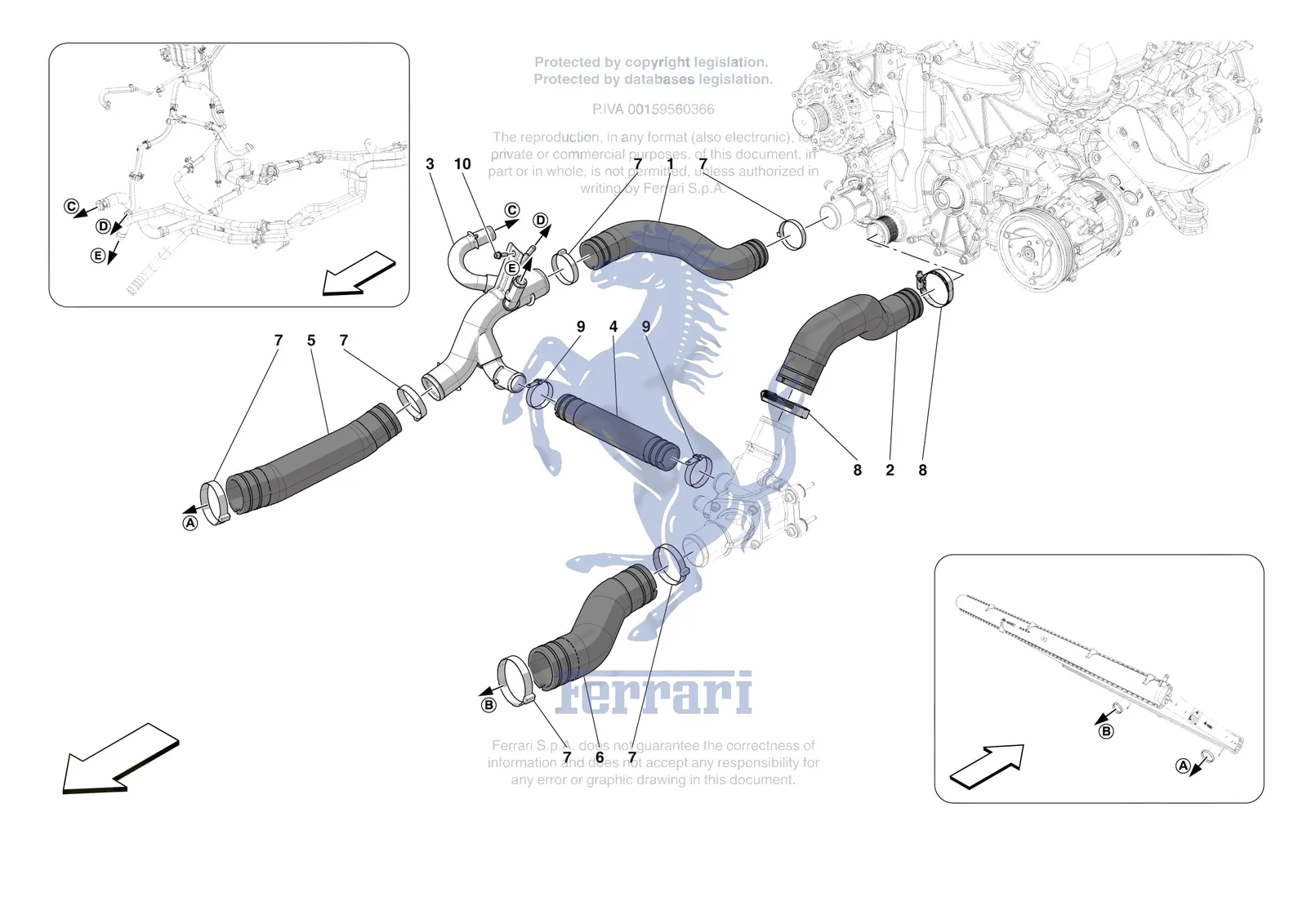

Exploded view of the [mechanical system] - d.16 - cooling system pipes on the Ferrari 12 Cilindri, with 10 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [MECHANICAL SYSTEM] - D.16 - COOLING SYSTEM PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0065.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 986856 | Ferrari Return Hose From Multi-Way P - 986856 | $319.62 | Special order, ships in 7-14 days |
| 2 | 979429 | Ferrari Delivery Hose From Engine To - 979429 | $368.79 | Special order, ships in 7-14 days |
| 3 | 875318 | Ferrari Multi-Way Pipe - 875318 | $1,155.62 | Special order, ships in 7-14 days |
| 4 | 986855 | Ferrari Bypass Hose To Multi-Way Con - 986855 | $159.79 | Special order, ships in 7-14 days |
| 5 | 982960 | Ferrari Return Hose From Radiator To - 982960 | $218.81 | Special order, ships in 7-14 days |
| 6 | 979430 | Ferrari Delivery Hose From Thermosta - 979430 | $228.64 | Special order, ships in 7-14 days |
| 7 | 296345 | Ferrari Collar - 296345 | $5.00 | Special order, ships in 7-14 days |
| 8 | 272913 | Ferrari Collar - 272913 | $7.63 | Special order, ships in 7-14 days |
| 9 | 262113 | Ferrari Collar - 262113 | $3.68 | Special order, ships in 7-14 days |
| 10 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
