Ferrari 12 Cilindri — [MECHANICAL SYSTEM] - D.22 - BRAKE MASTER CYLINDER RESERVOIR (diagram 0071)

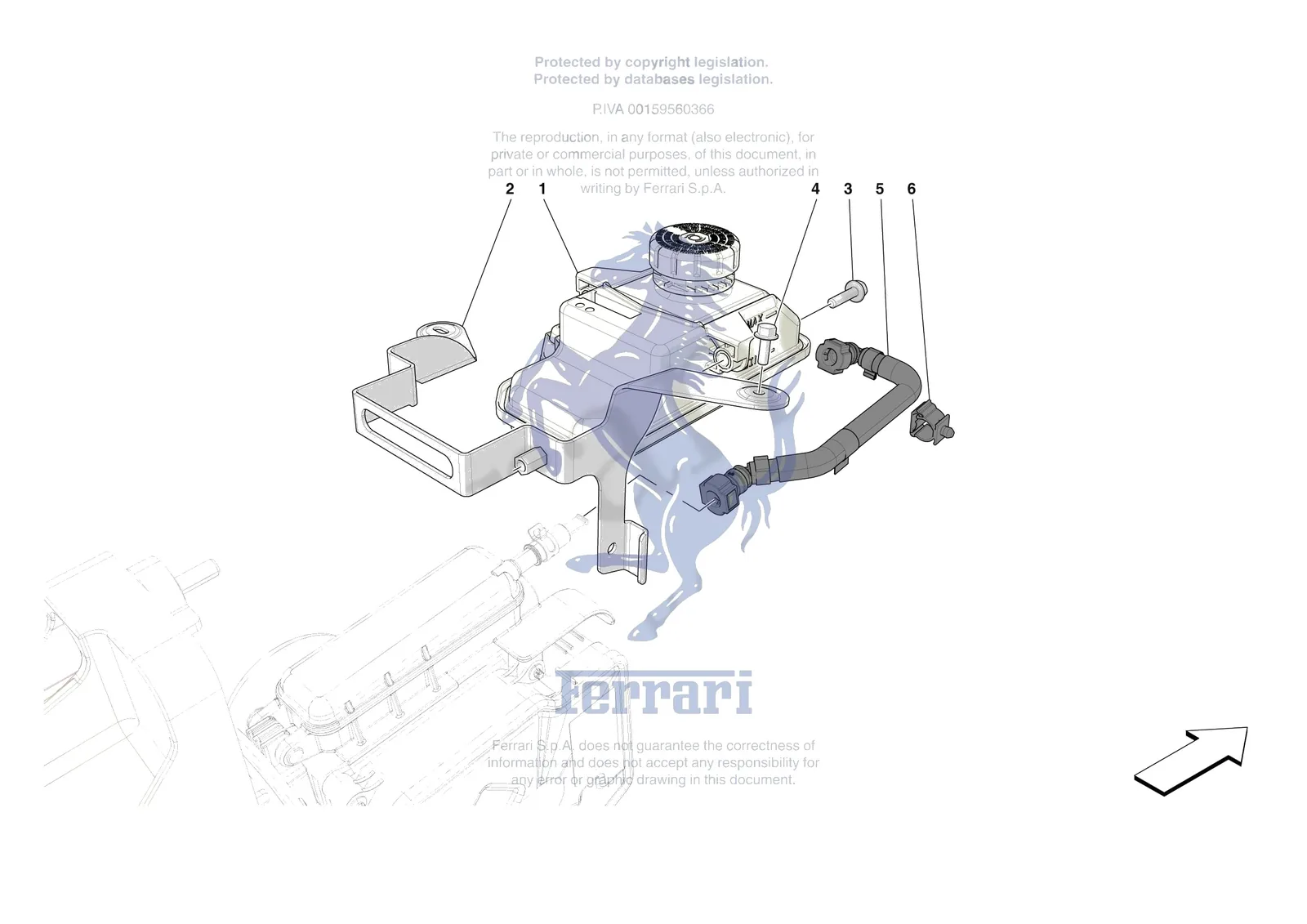

Exploded view of the [mechanical system] - d.22 - brake master cylinder reservoir on the Ferrari 12 Cilindri, with 9 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [MECHANICAL SYSTEM] - D.22 - BRAKE MASTER CYLINDER RESERVOIR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0071.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 293146 | Ferrari Clip - 293146 | $2.09 | Special order, ships in 7-14 days | |
| 1 | 819954 | Ferrari Vaschetta Liquido Freni Re - 819954 | $319.62 | Special order, ships in 7-14 days |
| 2 | 845318 | Ferrari Brake Fluid Reservoir Bracket - 845318 | $199.14 | Special order, ships in 7-14 days |
| 2 | 983480 | Ferrari Brake Fluid Reservoir Bracket - 983480 | $177.00 | Special order, ships in 7-14 days |
| 3 | 16286224 | Ferrari Screw M6x25 - 16286224 | $4.77 | Special order, ships in 7-14 days |
| 4 | 16281827 | Ferrari Screw 5x14 - 16281827 | $0.46 | Special order, ships in 7-14 days |
| 5 | 784883 | Ferrari Hose From Brake Oil Tank To IPB - 784883 | $417.97 | Special order, ships in 7-14 days |
| 5 | 985807 | Ferrari Hose From Brake Oil Tank To IPB - 985807 | $211.43 | Special order, ships in 7-14 days |
| 6 | 257273 | Ferrari Clip D. 14-16 - 257273 | $2.59 | Special order, ships in 7-14 days |
