Ferrari 12 Cilindri — [MECHANICAL SYSTEM] - D.23.02 - HYDRAULIC BRAKE CONTROL PIPES -Applicable for RHD- (diagram 0073)

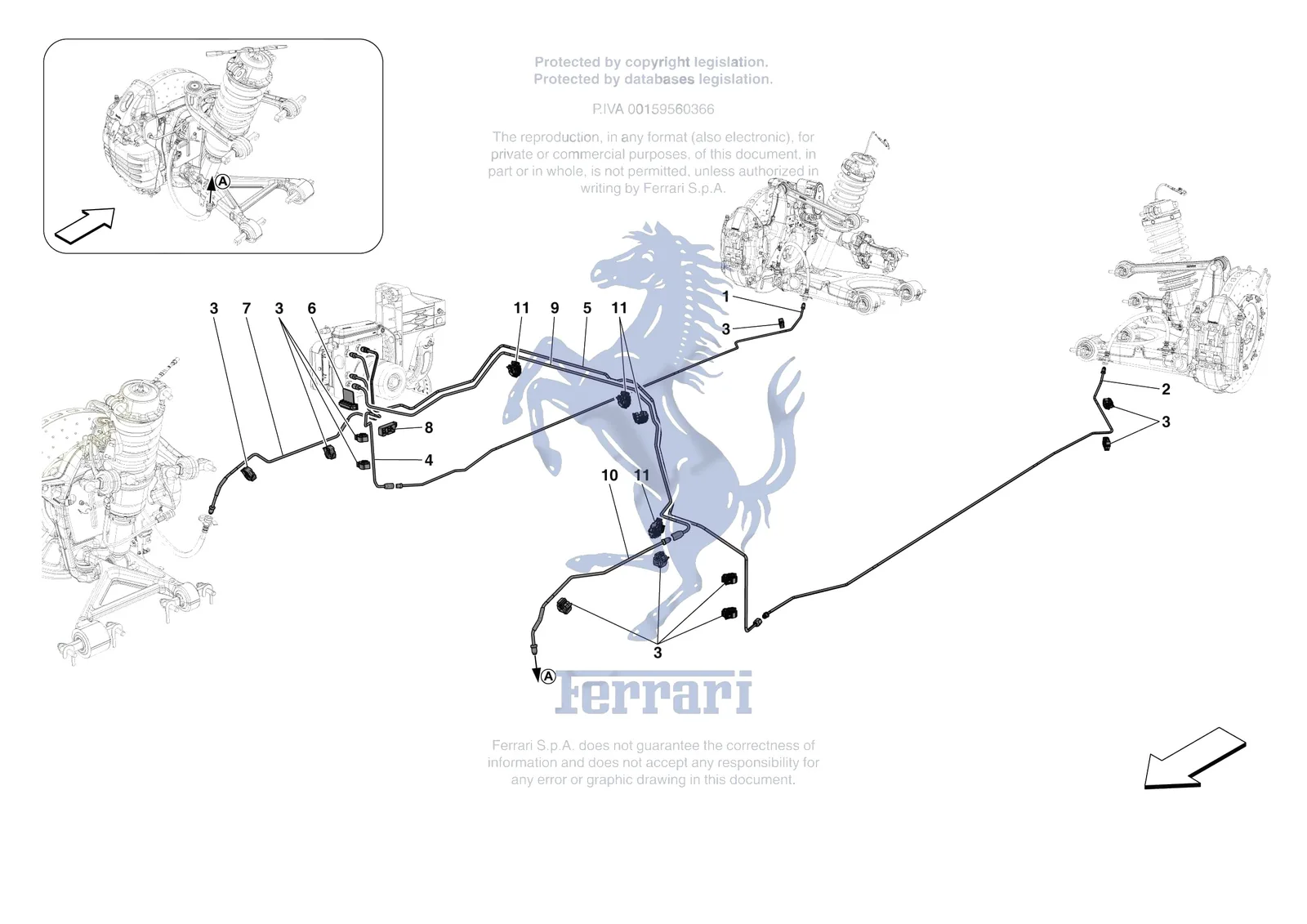

Exploded view of the [mechanical system] - d.23.02 - hydraulic brake control pipes -applicable for rhd- on the Ferrari 12 Cilindri, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [MECHANICAL SYSTEM] - D.23.02 - HYDRAULIC BRAKE CONTROL PIPES -Applicable for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0073.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 914241 | Ferrari UNDERBODY REAR RH BRAKE PIPE - 914241 | $120.46 | Special order, ships in 7-14 days |
| 2 | 914242 | Ferrari UNDERBODY REAR LH BRAKE PIPE - 914242 | $117.99 | Special order, ships in 7-14 days |
| 3 | 234284 | Ferrari Clip - 234284 | $1.23 | Available, ships in 3-6 days |
| 4 | 797059 | Ferrari RH Rear Brake Pipe From Ipb - 797059 | $83.57 | Special order, ships in 7-14 days |
| 5 | 797060 | Ferrari LH Rear Brake Pipe From Ipb - 797060 | $167.17 | Special order, ships in 7-14 days |
| 6 | 254195 | Ferrari Clip - 254195 | $3.03 | Special order, ships in 7-14 days |
| 7 | 797057 | Ferrari Front RH Brake Pipe - 797057 | $108.16 | Special order, ships in 7-14 days |
| 8 | 294207 | Ferrari Clip - 294207 | $11.12 | Special order, ships in 7-14 days |
| 9 | 797058 | Ferrari LH Front Brake Pipe From Ipb - 797058 | $137.67 | Special order, ships in 7-14 days |
| 10 | 797056 | Ferrari LH Front Brake Pipe From Dis - 797056 | $88.49 | Special order, ships in 7-14 days |
| 11 | 234285 | Ferrari Clip - 234285 | $1.40 | Available, ships in 3-6 days |
