Ferrari 12 Cilindri — [VEHICLE TRIM] - E.01.03 - STRUCTURES AND ELEMENTS REAR OF VEHICLE (diagram 0097)
Exploded view of the [vehicle trim] - e.01.03 - structures and elements rear of vehicle on the Ferrari 12 Cilindri, with 9 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

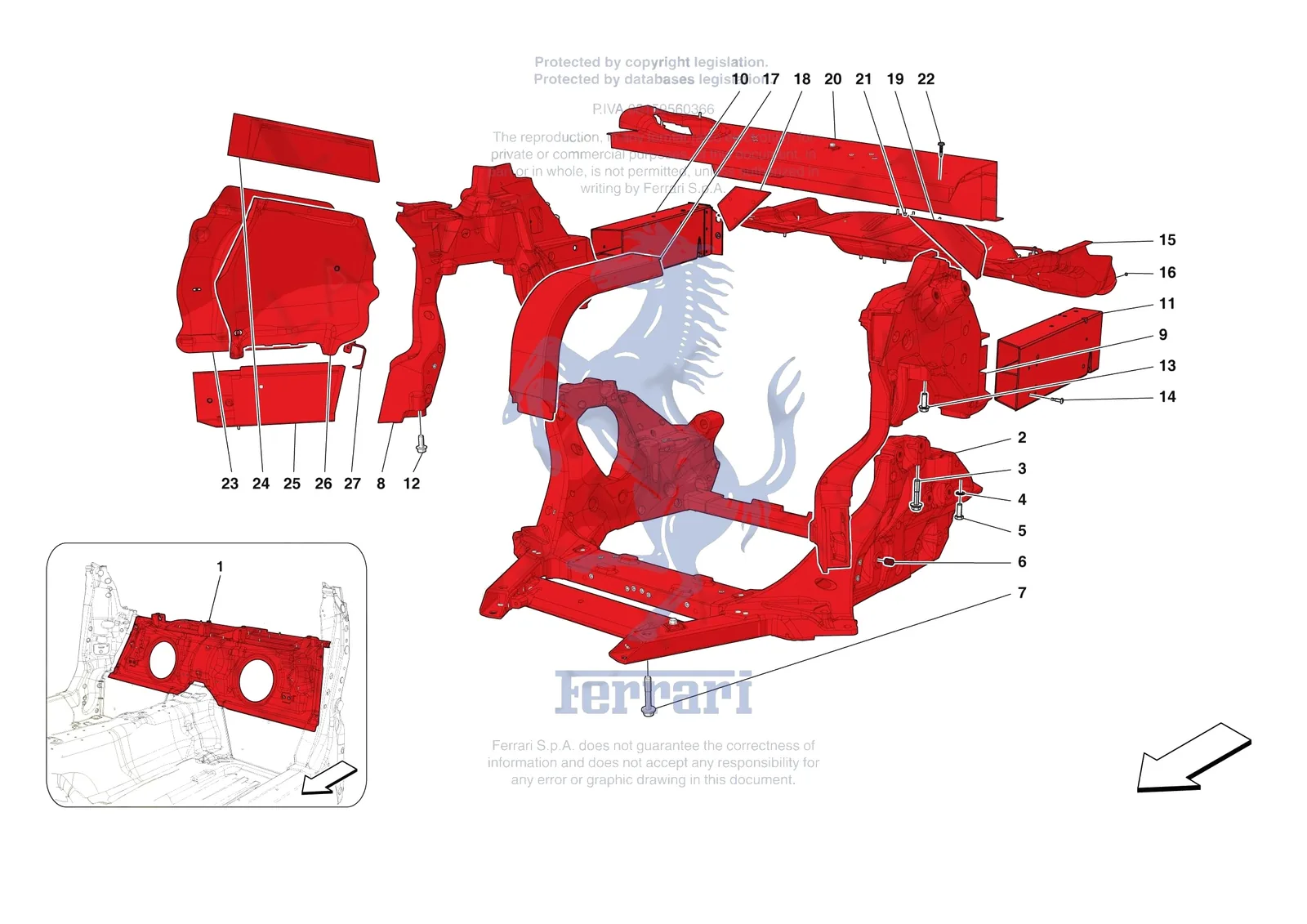

![Ferrari 12 Cilindri [VEHICLE TRIM] - E.01.03 - STRUCTURES AND ELEMENTS REAR OF VEHICLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0097.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 985832489 | Ferrari Rear LH Strut - 985832489 | $2,204.29 | Special order, ships in 7-14 days | |
| 985861869 | Ferrari Rear LH Strut - 985861869 | Superseded | Order 985832489 instead | |
| 985832490 | Ferrari Rear RH Strut - 985832490 | $2,157.38 | Special order, ships in 7-14 days | |
| 13550424 | Ferrari Washer - 13550424 | $0.31 | Available, ships in 3-6 days | |
| 128944 | Ferrari Washer D10.2-20 - 128944 | $3.68 | Available, ships in 3-6 days | |
| 10 | 985861872 | Ferrari Rear RH Strut - 985861872 | $1,696.56 | Special order, ships in 7-14 days |
| 11 | 985978759 | Ferrari Rear LH Strut - 985978759 | Superseded | Order 985832489 instead |
| 27 | 873816 | Ferrari REAR LH BRAKE BRACKET - 873816 | Price on request | Contact us for price and availability |
| 27 | 874062 | Ferrari REAR RH BRAKE BRACKET - 874062 | Price on request | Contact us for price and availability |
