Ferrari 12 Cilindri — [VEHICLE TRIM] - E.02 - LATERAL OUTER BODYSHELL (diagram 0098)
Exploded view of the [vehicle trim] - e.02 - lateral outer bodyshell on the Ferrari 12 Cilindri, with 25 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

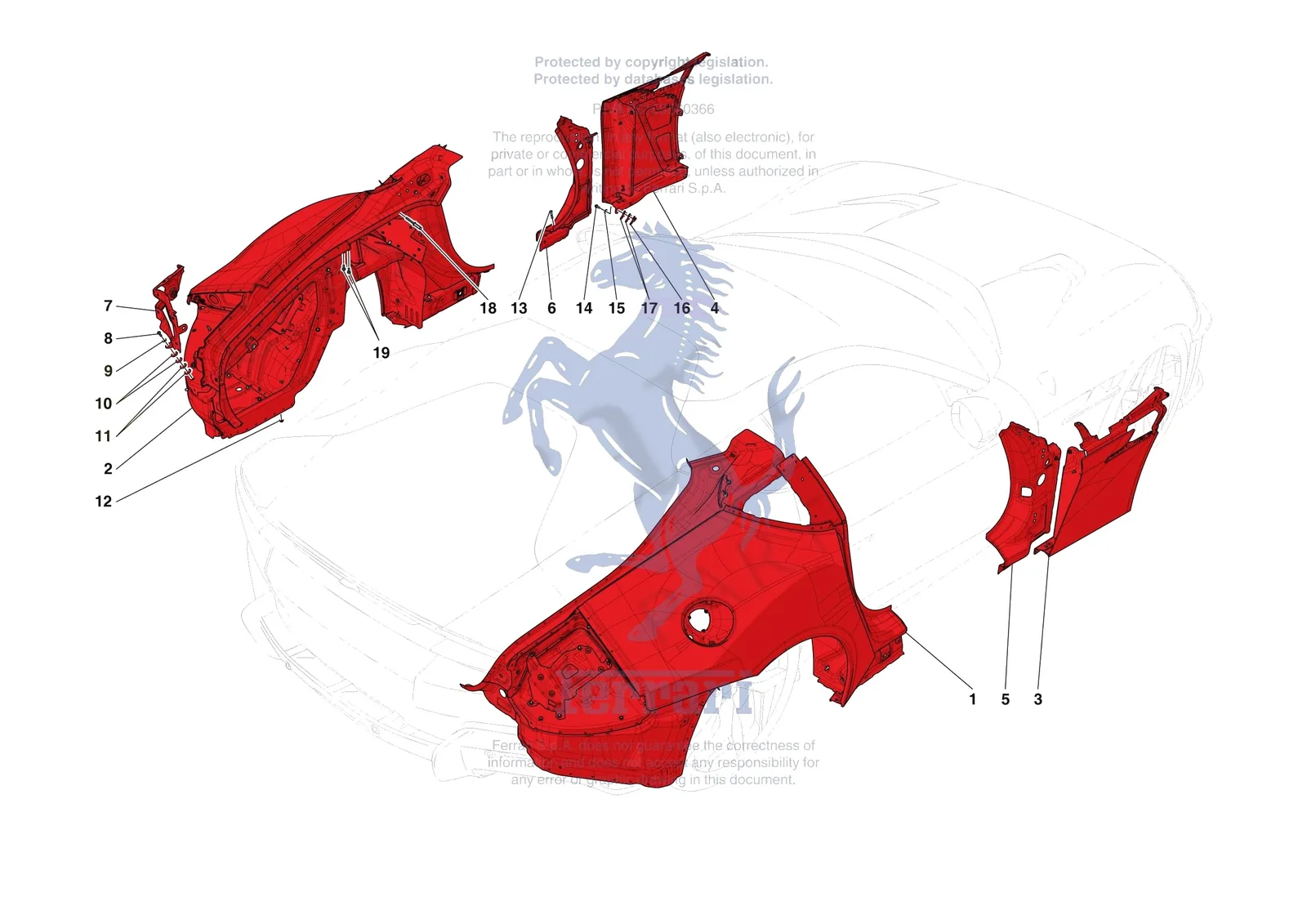

![Ferrari 12 Cilindri [VEHICLE TRIM] - E.02 - LATERAL OUTER BODYSHELL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0098.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 900885 | Ferrari Adjustment Shim - 900885 | Superseded | Order 87583800 instead | |
| 921747 | Ferrari Spess.Curvo Di Regolaz.A For - 921747 | Superseded | Order 87583800 instead | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 985773675 | Ferrari Compl. RH Rear Flank - 985773675 | $35,055.45 | Contact us to order |
| 2 | 985773788 | Ferrari Compl. LH Rear Flank - 985773788 | $35,055.45 | Contact us to order |
| 3 | 985773908 | Ferrari Compl. Outer Skin Of RH Fron - 985773908 | $7,360.29 | Special order, ships in 7-14 days |
| 4 | 985773923 | Ferrari Compl. Outer Skin Of LH Fron - 985773923 | $7,360.29 | Special order, ships in 7-14 days |
| 5 | 985774227 | Ferrari RH A-PILLAR COVER - 985774227 | Price on request | Contact us for price and availability |
| 6 | 985774233 | Ferrari LH A-PILLAR COVER - 985774233 | Price on request | Contact us for price and availability |
| 7 | 985778372 | Ferrari Compl. LH Light Unit Carrier - 985778372 | $835.97 | Special order, ships in 7-14 days |
| 7 | 985773736 | Ferrari Compl. RH Light Unit Carrier - 985773736 | $835.97 | Special order, ships in 7-14 days |
| 8 | 13833614 | Ferrari Screw M5 x 16 TEBD - 13833614 | $2.59 | Available, ships in 3-6 days |
| 9 | 12644424 | Ferrari Washer 6.15-15 x 1 - 12644424 | $0.12 | Available, ships in 3-6 days |
| 10 | 977040 | Ferrari Washer - 977040 | $3.91 | Special order, ships in 7-14 days |
| 11 | 990737 | Ferrari WASHER - 990737 | Price on request | Contact us for price and availability |
| 12 | 14059211 | Ferrari Flanged Nut - 14059211 | $0.13 | Available, ships in 3-6 days |
| 13 | 204430 | Ferrari Rivet Tt Fi D. 6 4X19 2 - 204430 | $2.82 | Available, ships in 3-6 days |
| 14 | 16286121 | Ferrari Screw M6 x 20 - 16286121 | $1.23 | Available, ships in 3-6 days |
| 15 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 16 | 856009 | Ferrari Adjustment Shim 0.6mm - 856009 | $13.49 | Special order, ships in 7-14 days |
| 17 | 87583800 | Ferrari Adjuster Shim 1.0mm - 87583800 | $3.68 | Special order, ships in 7-14 days |
| 18 | 825234 | Ferrari Rivet - 825234 | $2.07 | Special order, ships in 7-14 days |
| 19 | 16281827 | Ferrari Screw 5x14 - 16281827 | $0.46 | Special order, ships in 7-14 days |
