Ferrari 12 Cilindri — [VEHICLE TRIM] - E.06 - LATERAL SUBSTRUCTURE (diagram 0102)

Exploded view of the [vehicle trim] - e.06 - lateral substructure on the Ferrari 12 Cilindri, with 35 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

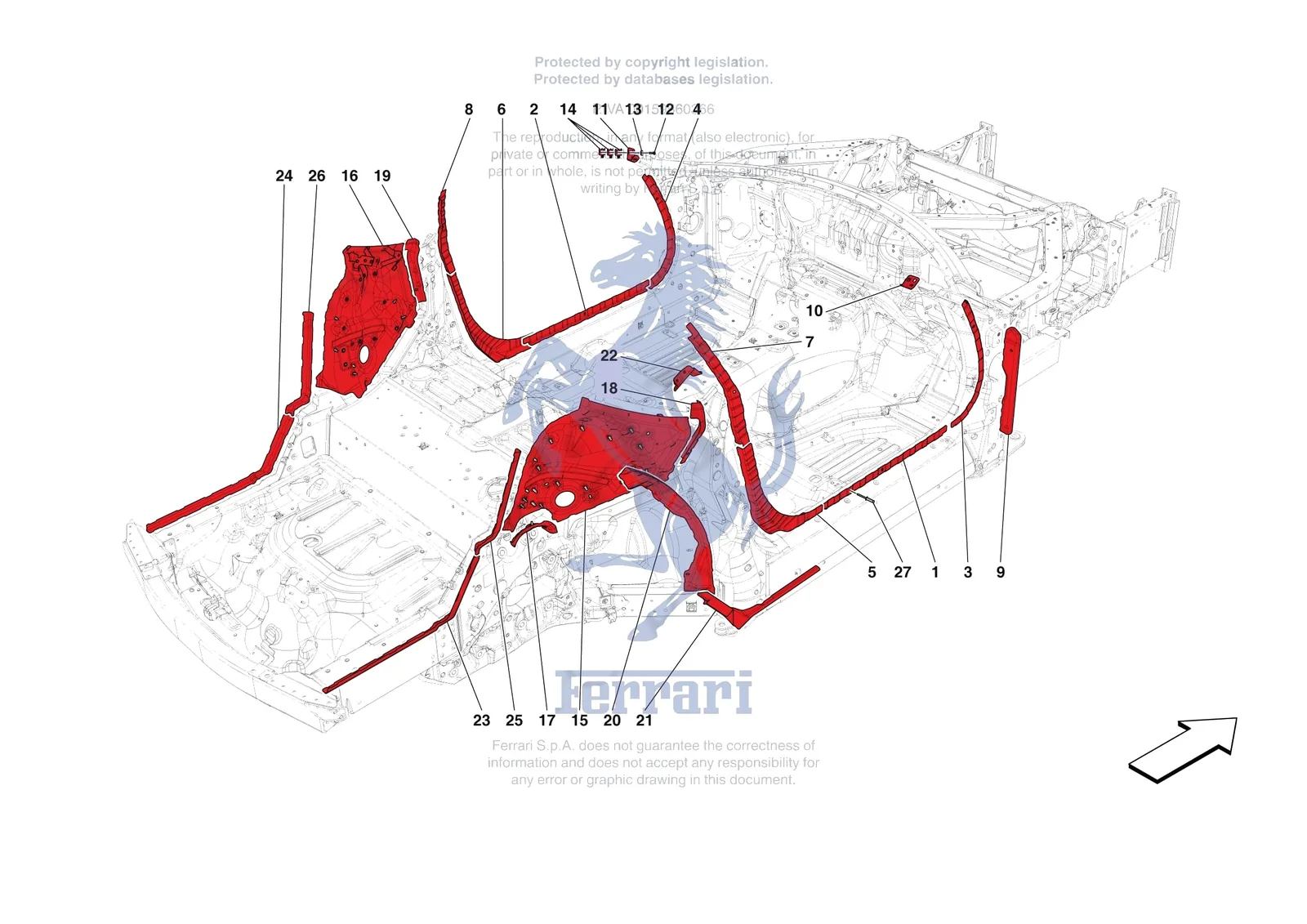

Ferrari 12 Cilindri [VEHICLE TRIM] - E.06 - LATERAL SUBSTRUCTURE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
1985774451Ferrari LOWER RH DOOR SEAL PROFILE - 985774451Price on requestContact us for price and availability
2985774454Ferrari LOWER LH DOOR SEAL PROFILE - 985774454Price on requestContact us for price and availability
3985774423Ferrari PROFILE LINKING RH A-PILLAR WITH FLANK - 985774423Price on requestContact us for price and availability
4985774426Ferrari PROFILE LINKING LH A-PILLAR WITH FLANK - 985774426Price on requestContact us for price and availability
5985774443Ferrari PROFILE LINKING RH B-PILLAR WITH FLANK - 985774443Price on requestContact us for price and availability
6985774447Ferrari PROFILE LINKING LH B-PILLAR WITH FLANK - 985774447$758.79Special order, ships in 7-14 days
7985774459Ferrari RH CENTRE PILLAR CLADDING - 985774459Price on requestContact us for price and availability
8985774463Ferrari LH CENTRE PILLAR CLADDING - 985774463Price on requestContact us for price and availability
9985774410Ferrari LH FRONT A-PILLAR FLANGE - 985774410Price on requestContact us for price and availability
9985774406Ferrari RH FRONT A-PILLAR FLANGE - 985774406Price on requestContact us for price and availability
10950100Ferrari RH Bracket - 950100$44.24Special order, ships in 7-14 days
11950099Ferrari LH Bracket - 950099$44.24Special order, ships in 7-14 days
1268176500Ferrari Screw 5x20 - 68176500$1.02Available, ships in 3-6 days
1312643724Ferrari/Maserati Washer - 12643724$0.20In stock
14242255Ferrari Shim 1.0mm - 242255$6.94Special order, ships in 7-14 days
1489143000Ferrari Shim 1.0mm Interasse 25Mm - 89143000$12.44Special order, ships in 7-14 days
15985774295Ferrari RH LATERAL SUBSTRUCTURE - 985774295Price on requestContact us for price and availability
16985774278Ferrari LH LATERAL SUBSTRUCTURE - 985774278Price on requestContact us for price and availability
17774276Ferrari Compl. RH Lateral Rear Mount - 774276$236.02Special order, ships in 7-14 days
18985774464Ferrari RH B-PILLAR LOWER REAR LINER - 985774464Price on requestContact us for price and availability
19985774465Ferrari LH B-PILLAR LOWER REAR LINER - 985774465Price on requestContact us for price and availability
20985774419Ferrari Front Part Of LH Rear Inner - 985774419$565.49Special order, ships in 7-14 days
20985774415Ferrari Front Part Of RH Rear Inner - 985774415$565.49Special order, ships in 7-14 days
21856363Ferrari LH Rear WheeLHouse Connector - 856363$130.29Special order, ships in 7-14 days
21856379Ferrari RH Rear WheeLHouse Connector - 856379$130.29Special order, ships in 7-14 days
22951610Ferrari LH Bracket - 951610$211.43Special order, ships in 7-14 days
22951614Ferrari RH Bracket - 951614$211.43Special order, ships in 7-14 days
23985774455Ferrari Lower Rear Element Of RH Lat - 985774455$442.56Special order, ships in 7-14 days
24985774456Ferrari Lower Rear Element Of LH Lat - 985774456$442.56Special order, ships in 7-14 days
25985774466Ferrari Rear Element Of RH Lateral S - 985774466$491.74Special order, ships in 7-14 days
26985774467Ferrari Rear Element Of LH Lateral S - 985774467$491.74Special order, ships in 7-14 days
27825234Ferrari Rivet - 825234$2.07Special order, ships in 7-14 days

All 12 Cilindri diagrams
