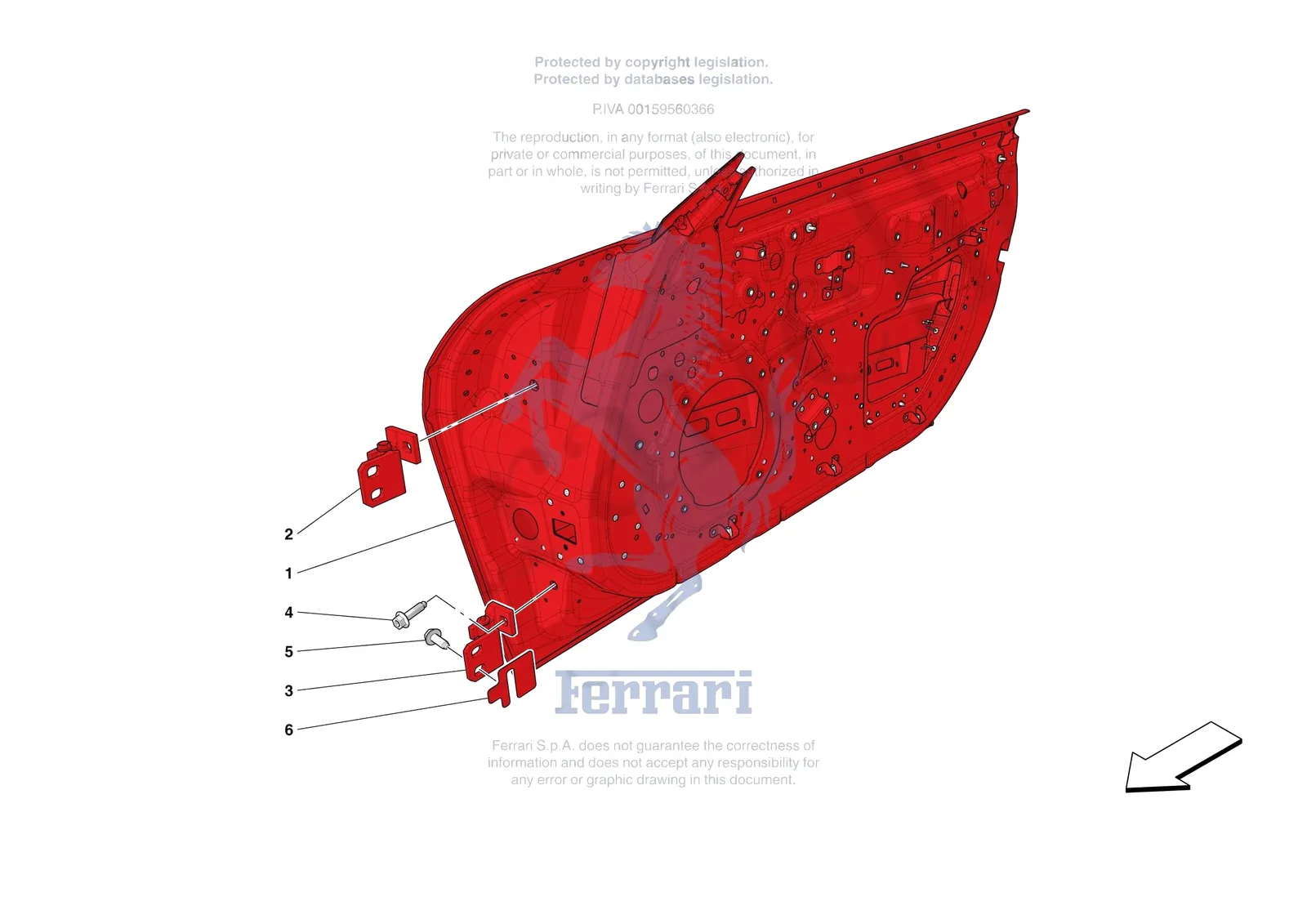

Ferrari 12 Cilindri — [VEHICLE TRIM] - E.08 - FRONT DOOR SUBSTRUCTURE (diagram 0104)
Exploded view of the [vehicle trim] - e.08 - front door substructure on the Ferrari 12 Cilindri, with 10 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [VEHICLE TRIM] - E.08 - FRONT DOOR SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0104.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 82505100 | Ferrari Screw - 82505100 | Superseded | Order 81267100 instead | |
| 1 | 985779204 | Ferrari LH Front Door - 985779204 | $22,358.81 | Contact us to order |
| 1 | 985778966 | Ferrari RH Front Door - 985778966 | $22,358.81 | Contact us to order |
| 2 | 83864900 | Ferrari LH Lower Door Hinge - 83864900 | $78.66 | Available, ships in 3-6 days |
| 2 | 83856000 | Ferrari RH Lower Door Hinge - 83856000 | $78.66 | Special order, ships in 7-14 days |
| 3 | 83865100 | Ferrari LH Upper Hinge - 83865100 | $78.66 | Available, ships in 3-6 days |
| 3 | 83856100 | Ferrari RH Upper Hinge - 83856100 | $78.66 | Special order, ships in 7-14 days |
| 4 | 81267100 | Ferrari Screw M10 x 30 - 81267100 | $10.02 | Special order, ships in 7-14 days |
| 5 | 18754324 | Ferrari Screw M10 x 1.25 x 32 - 18754324 | $3.03 | Available, ships in 3-6 days |
| 6 | 88927700 | Ferrari Shim 1.0mm - 88927700 | $4.56 | Special order, ships in 7-14 days |
