Ferrari 12 Cilindri — [VEHICLE TRIM] - E.18 - REAR WHEELHOUSE (diagram 0117)
Exploded view of the [vehicle trim] - e.18 - rear wheelhouse on the Ferrari 12 Cilindri, with 9 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

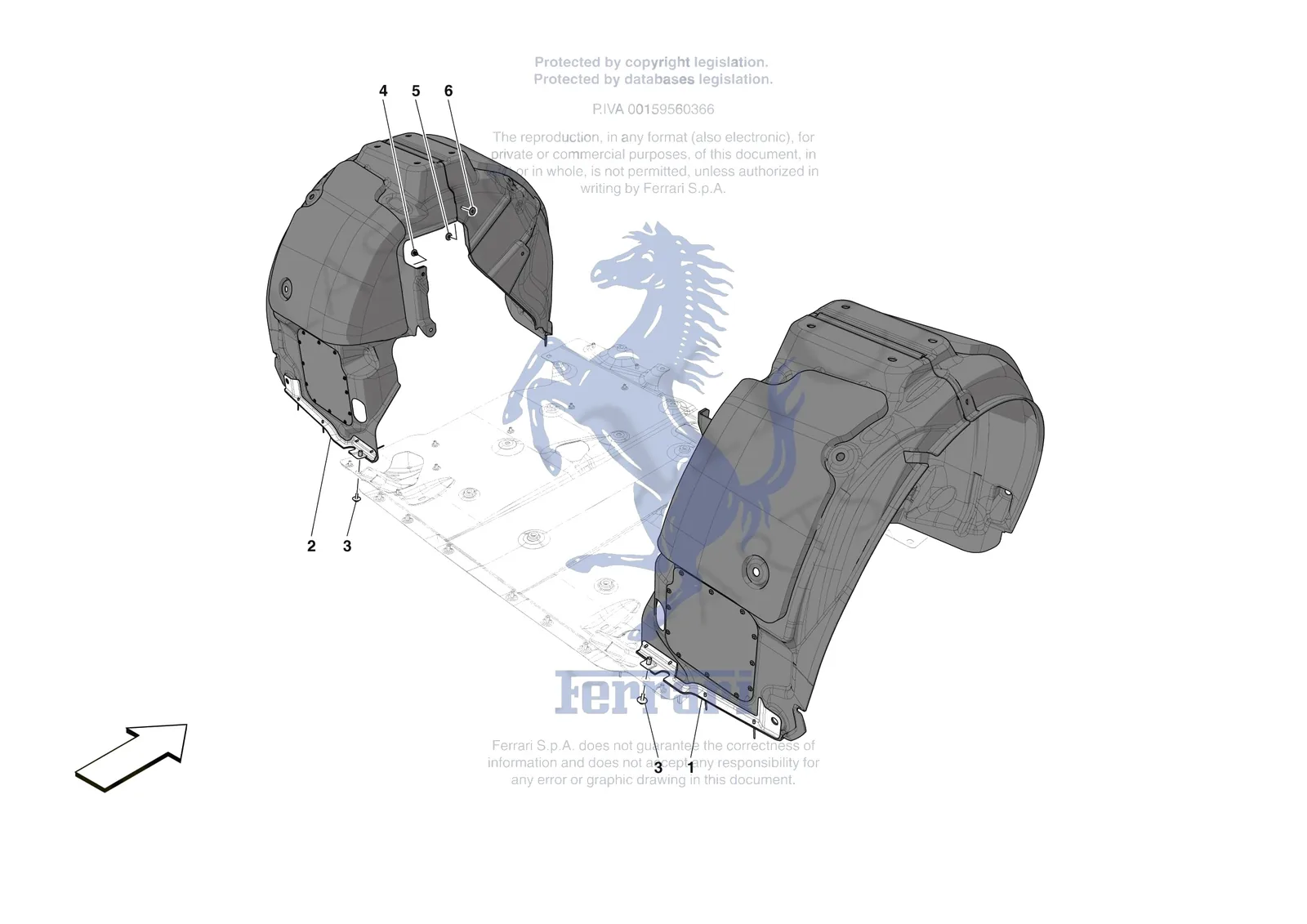

![Ferrari 12 Cilindri [VEHICLE TRIM] - E.18 - REAR WHEELHOUSE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0117.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 55046791 | Ferrari Compl. RH Rear WheeLHouse - 55046791 | $721.22 | Special order, ships in 7-14 days |
| 1 | 55046826 | Ferrari Compl. RH Rear WheeLHouse - 55046826 | $721.22 | Special order, ships in 7-14 days |
| 1 | 782392 | Ferrari Passaruota Post. Dx Cpl - 782392 | Superseded | Order 55046791 instead |
| 2 | 782408 | Ferrari Compl. LH Rear WheeLHouse - 782408 | $721.22 | Special order, ships in 7-14 days |
| 2 | 957806 | Ferrari Compl. LH Rear WheeLHouse - 957806 | $721.22 | Special order, ships in 7-14 days |
| 3 | 81290900 | Ferrari Screw With Double Washer - 81290900 | $1.42 | In stock |
| 4 | 83222200 | Ferrari Fastener Button - 83222200 | $1.42 | Available, ships in 3-6 days |
| 5 | 84247300 | Ferrari Male Clip - 84247300 | $2.82 | Available, ships in 3-6 days |
| 6 | 84247400 | Ferrari Female Clip - 84247400 | $2.59 | Available, ships in 3-6 days |
