Ferrari 12 Cilindri — [VEHICLE TRIM] - E.20 - ENGINE COMPARTMENT INSULATION (diagram 0119)

Exploded view of the [vehicle trim] - e.20 - engine compartment insulation on the Ferrari 12 Cilindri, with 46 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

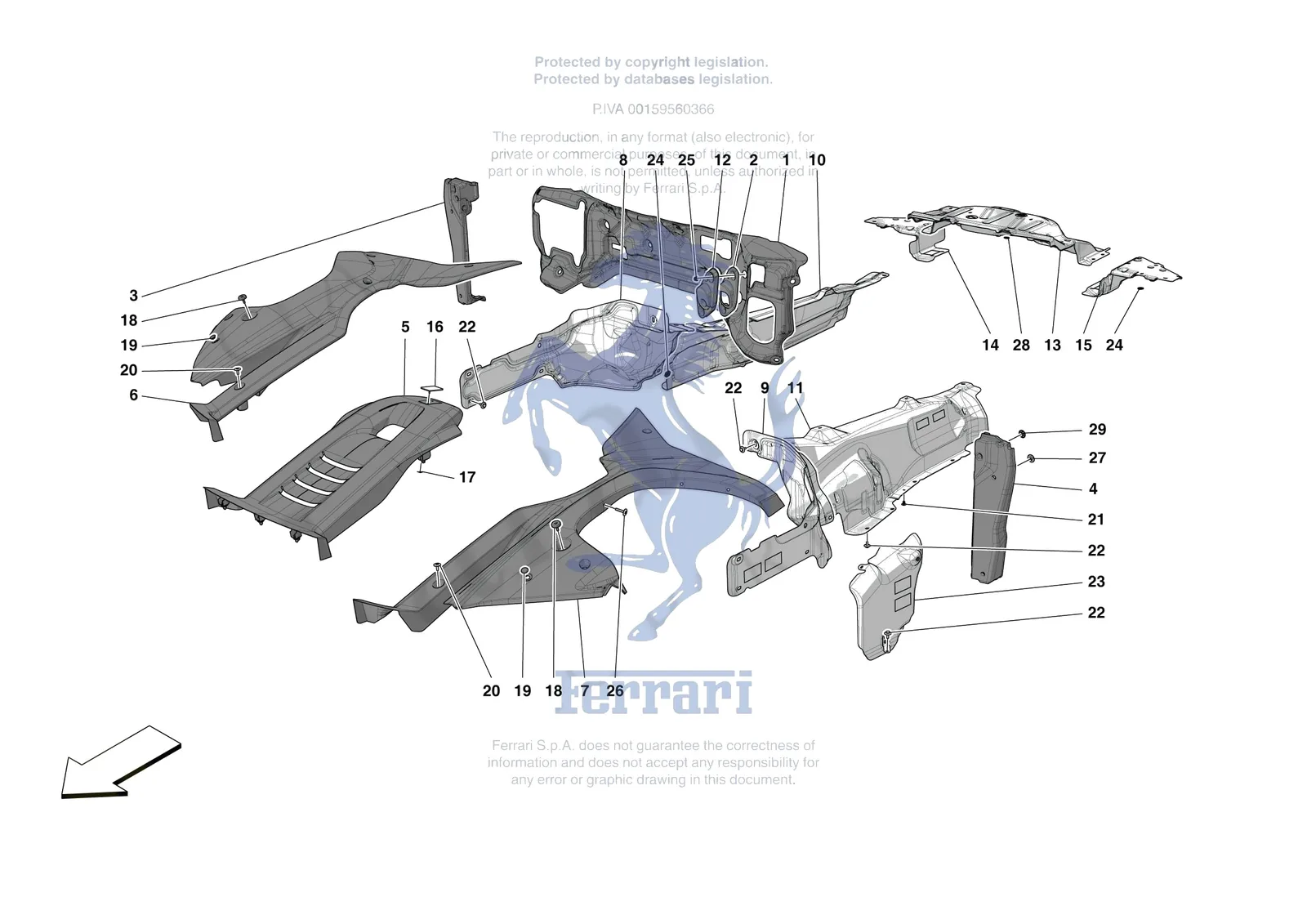

Ferrari 12 Cilindri [VEHICLE TRIM] - E.20 - ENGINE COMPARTMENT INSULATION exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
768369Ferrari Central Heat Shield for Spare Wheel Tray - 768369$367.14Special order, ships in 7-14 days
155000023Ferrari Insulation - 55000023$467.15Special order, ships in 7-14 days
1986041Ferrari Insulation - 986041$417.97Special order, ships in 7-14 days
2768521Ferrari Steering Column Compartment Cover - 768521$22.60Special order, ships in 7-14 days
289052200Ferrari Steering Column Compartment Cover - 89052200$16.45Special order, ships in 7-14 days
3898252Ferrari RH Front Bush - 898252$76.19Special order, ships in 7-14 days
4898253Ferrari LH Front Bush - 898253$76.19Special order, ships in 7-14 days
5788430Ferrari Compl. Front Cosmetic Cover - 788430$10,364.46Special order, ships in 7-14 days
5799312Ferrari Compl. Front Cosmetic Cover - 799312$442.56Special order, ships in 7-14 days
5998302Ferrari Compl. Front Cosmetic Cover - 998302Price on requestContact us for price and availability
655038759Ferrari H Cosmetic Cover - 55038759$10,394.90Special order, ships in 7-14 days
655038763Ferrari H Cosmetic Cover - 55038763$10,774.26Special order, ships in 7-14 days
6998304Ferrari Paratia Est. Vano Motore Dx - 998304SupersededOrder 55038763 instead
6788426Ferrari Paratia Estetica Vano Motore - 788426SupersededOrder 55038759 instead
6799304Ferrari RH Cosmetic Cover - 799304$240.94Special order, ships in 7-14 days
6989457Ferrari RH Cosmetic Cover - 989457SupersededOrder 799304 instead
755038760Ferrari LH Cosmetic Cover - 55038760$10,394.90Special order, ships in 7-14 days
755038761Ferrari LH Cosmetic Cover - 55038761$10,774.26Special order, ships in 7-14 days
7799302Ferrari LH Cosmetic Cover - 799302$442.56Special order, ships in 7-14 days
7989456Ferrari LH Cosmetic Cover - 989456SupersededOrder 799302 instead
7998305Ferrari Paratia Est. Vano Motore Sx - 998305SupersededOrder 55038761 instead
7788427Ferrari Paratia Estetica Vano Motore - 788427SupersededOrder 55038760 instead
855000022Ferrari RH Catalytic Converter Heat - 55000022$417.97Special order, ships in 7-14 days
9786872Ferrari LH Catalytic Converter Heat - 786872$417.97Special order, ships in 7-14 days
10820362Ferrari RH Tunnel Heat Shield - 820362$491.74Special order, ships in 7-14 days
11820361Ferrari LH Tunnel Heat Shield - 820361$491.74Special order, ships in 7-14 days
12768522Ferrari Plug - 768522$95.87Special order, ships in 7-14 days
1289052100Ferrari Plug - 89052100$76.19Special order, ships in 7-14 days
13836326Ferrari Central Heat Shield For Spare Wheel Tray - 836326$368.79Special order, ships in 7-14 days
14844625Ferrari RH Luggage Compartment Floor - 844625$228.64Special order, ships in 7-14 days
15844624Ferrari LH Luggage Compartment Floor - 844624$228.64Special order, ships in 7-14 days
1714183376Ferrari Screw Clip - 14183376$0.19Available, ships in 3-6 days
18872926Ferrari Striker Fastener Screw M5 - 872926$30.57Special order, ships in 7-14 days
1914506587Ferrari Rubber Grommet - 14506587$0.38Available, ships in 3-6 days
1955042334Ferrari Tappo X Fori Tipo A -12 Vern - 55042334$15.05Special order, ships in 7-14 days
20256490Ferrari Screw TBEI M5 x 16 - 256490$3.91Available, ships in 3-6 days
2183222200Ferrari Fastener Button - 83222200$1.42Available, ships in 3-6 days
2281290900Ferrari Screw With Double Washer - 81290900$1.42In stock
23777906Ferrari Onebox Heat Shield - 777906$295.03Special order, ships in 7-14 days
23794320Ferrari Onebox Heat Shield - 794320$442.56Special order, ships in 7-14 days
2467315400Ferrari Washer - 67315400$0.82Special order, ships in 7-14 days
2514058419Ferrari Flanged Nut - 14058419$1.61Special order, ships in 7-14 days
2655042899Ferrari Vite M6X25 Con Rosetta Imp. - 55042899$1.63Special order, ships in 7-14 days
2767640300Ferrari Fixing Button - 67640300$1.04Available, ships in 3-6 days
28250645Ferrari Ring Nut - 250645$1.44Special order, ships in 7-14 days
2955021651Ferrari Ring Nut - 55021651$1.61Special order, ships in 7-14 days

All 12 Cilindri diagrams
