Ferrari 12 Cilindri — [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES (diagram 0129)

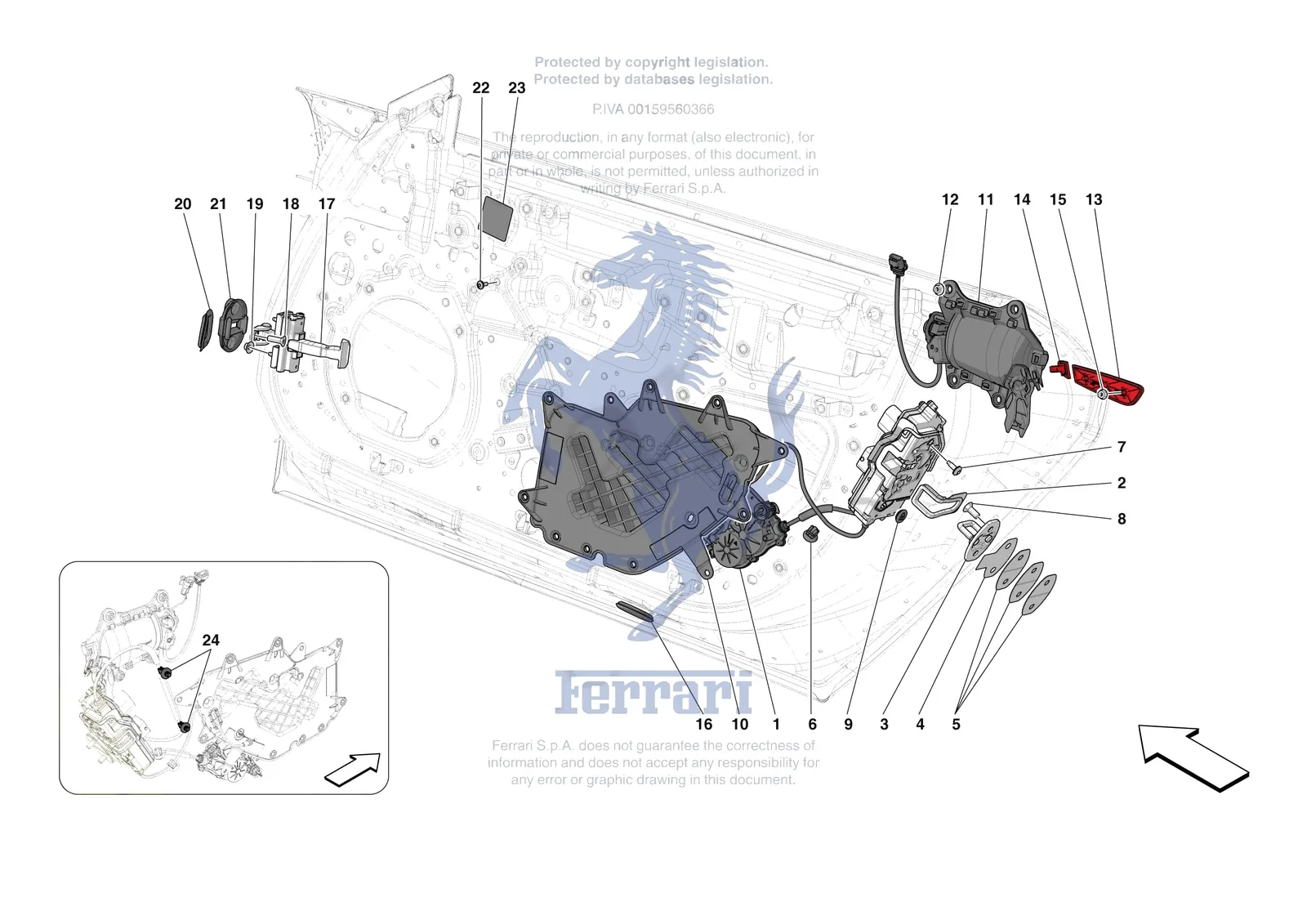

Exploded view of the [vehicle trim] - e.29.02 - doors - opening mechanisms and hinges on the Ferrari 12 Cilindri, with 42 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0129.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 848279 | Ferrari Door Striker Plate Shim - 848279 | Superseded | Order 802693 instead | |
| 878004 | Ferrari LH Outer Door Handle Module - 878004 | Superseded | Order 868769 instead | |
| 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead | |
| 878020 | Ferrari Plate - 878020 | $26.24 | Special order, ships in 7-14 days | |
| 878164 | Ferrari RH Outer Door Handle Module - 878164 | Superseded | Order 868970 instead | |
| 913069 | Ferrari Seal On LH Flank - 913069 | Superseded | Order 995399 instead | |
| 913074 | Ferrari Seal On RH Flank - 913074 | $37.18 | Special order, ships in 7-14 days | |
| 1 | 784061 | Ferrari Compl. LH Door Lock Unit - 784061 | $1,819.49 | Special order, ships in 7-14 days |
| 1 | 860618 | Ferrari Compl. LH Door Lock Unit - 860618 | $2,271.45 | Special order, ships in 7-14 days |
| 1 | 784064 | Ferrari Compl. RH Door Lock Unit - 784064 | $1,819.49 | Special order, ships in 7-14 days |
| 1 | 860625 | Ferrari Compl. RH Door Lock Unit - 860625 | $2,224.61 | Special order, ships in 7-14 days |
| 2 | 995397 | Ferrari Plate - 995397 | $26.20 | Special order, ships in 7-14 days |
| 3 | 808736 | Ferrari Door Lock Striker Plate - 808736 | $29.48 | Special order, ships in 7-14 days |
| 4 | 924578 | Ferrari Pellicola Per Scontrino Port - 924578 | $14.39 | Special order, ships in 7-14 days |
| 5 | 802693 | Ferrari Door Striker Plate Shim - 802693 | $15.05 | Special order, ships in 7-14 days |
| 6 | 822994 | Ferrari Clip - 822994 | $6.75 | Special order, ships in 7-14 days |
| 7 | 889675 | Ferrari Screw - 889675 | $9.37 | Special order, ships in 7-14 days |
| 8 | 85133400 | Ferrari Screw TSEI M8 x 20 - 85133400 | $1.30 | Available, ships in 3-6 days |
| 9 | 896003 | Ferrari Cap - 896003 | $46.69 | Special order, ships in 7-14 days |
| 10 | 961655 | Ferrari LH Door Waterproof Membrane - 961655 | $270.44 | Special order, ships in 7-14 days |
| 10 | 961658 | Ferrari RH Door Waterproof Membrane - 961658 | $270.44 | Special order, ships in 7-14 days |
| 11 | 868769 | Ferrari LH Outer Door Handle Module - 868769 | $713.04 | Special order, ships in 7-14 days |
| 11 | 868977 | Ferrari LH Outer Door Handle Module - 868977 | $516.33 | Available, ships in 3-6 days |
| 11 | 868970 | Ferrari RH Outer Door Handle Module - 868970 | $516.33 | Special order, ships in 7-14 days |
| 11 | 868974 | Ferrari RH Outer Door Handle Module - 868974 | $713.04 | Special order, ships in 7-14 days |
| 12 | 13046111 | Ferrari Nut 6x6 - 13046111 | $0.73 | Special order, ships in 7-14 days |
| 13 | 878178 | Ferrari LH Handle Two/Component Paddle - 878178 | $110.61 | Special order, ships in 7-14 days |
| 13 | 878117 | Ferrari RH Handle Two/Component Padd - 878117 | $110.61 | Special order, ships in 7-14 days |
| 14 | 878116 | Ferrari LH Handle Button - 878116 | $21.85 | Special order, ships in 7-14 days |
| 14 | 878120 | Ferrari RH Handle Button - 878120 | $21.85 | Special order, ships in 7-14 days |
| 15 | 12578011 | Ferrari Flanged Nyloc Nut - 12578011 | $0.31 | Available, ships in 3-6 days |
| 16 | 276467 | Ferrari Cover - 276467 | $6.31 | Special order, ships in 7-14 days |
| 17 | 840140 | Ferrari Door Check Strap - 840140 | $393.38 | Special order, ships in 7-14 days |
| 18 | 84872900 | Ferrari Screw - 84872900 | $0.82 | Available, ships in 3-6 days |
| 19 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 20 | 995399 | Ferrari Seal On LH Flank - 995399 | $37.13 | Special order, ships in 7-14 days |
| 20 | 55009600 | Ferrari Seal On RH Flank - 55009600 | $37.13 | Special order, ships in 7-14 days |
| 21 | 83897000 | Ferrari Door Arrester Tie-Rod Seal - 83897000 | $24.32 | Special order, ships in 7-14 days |
| 22 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 22 | 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days |
| 23 | 942274 | Ferrari Adhesive Cap - 942274 | $5.44 | Special order, ships in 7-14 days |
| 24 | 746595 | Ferrari Clip - 746595 | $3.47 | Special order, ships in 7-14 days |
