Ferrari 12 Cilindri — [VEHICLE TRIM] - E.42 - REAR BUMPER (diagram 0143)

Exploded view of the [vehicle trim] - e.42 - rear bumper on the Ferrari 12 Cilindri, with 62 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

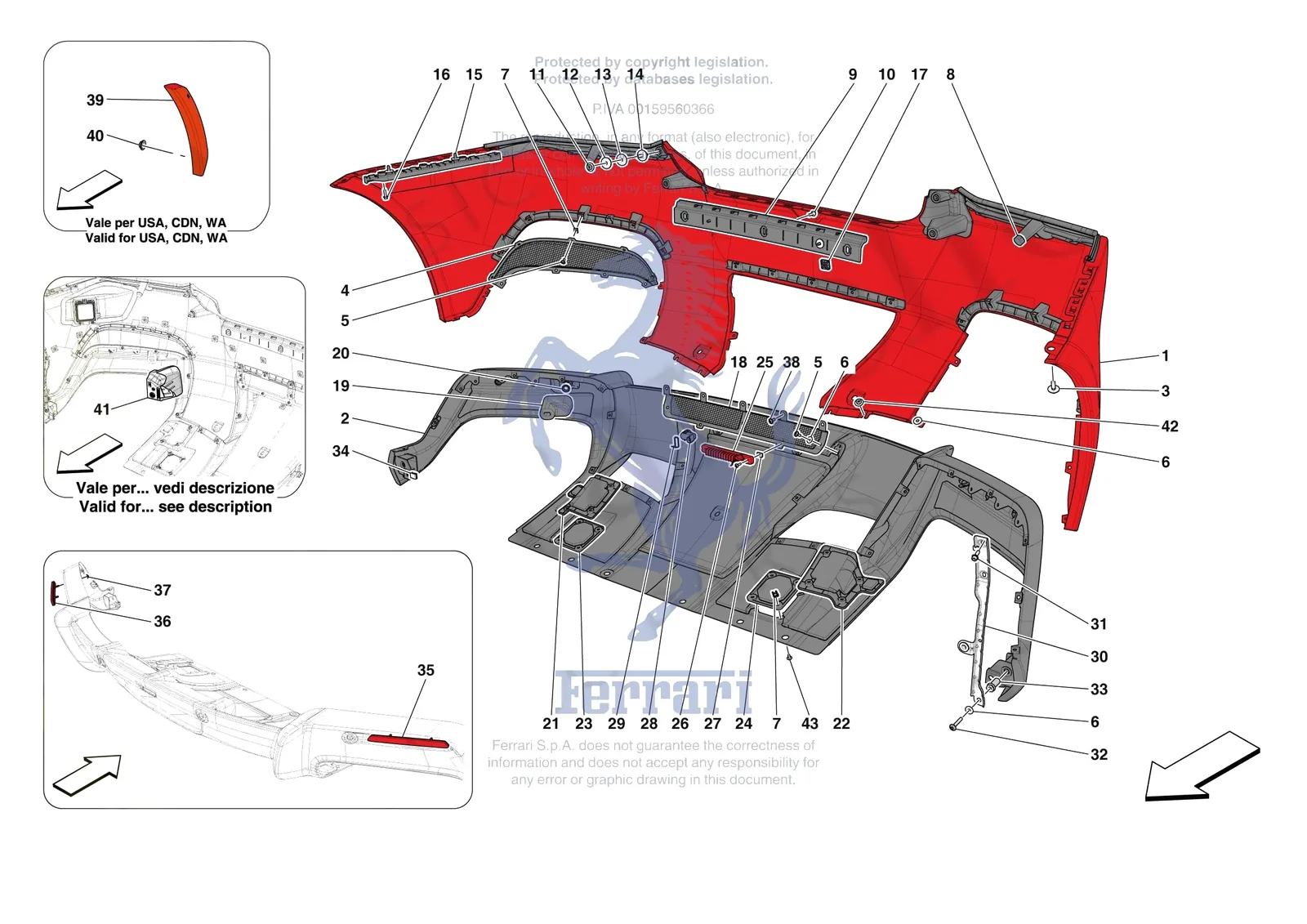

Ferrari 12 Cilindri [VEHICLE TRIM] - E.42 - REAR BUMPER exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
85309700Ferrari Centre Heat Shield - 85309700$215.38Special order, ships in 7-14 days
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
14498804Ferrari Washer - 14498804SupersededOrder 14498824 instead
1985809391Ferrari Compl. Rear Bumper - 985809391$10,282.50Contact us to order
1985957444Ferrari Compl. Rear Bumper - 985957444$55,515.51Contact us to order
1985958962Ferrari Compl. Rear Bumper - 985958962Price on requestContact us to order
1985958974Ferrari Compl. Rear Bumper - 985958974Price on requestContact us to order
1985990125Ferrari Compl. Rear Bumper - 985990125Price on requestContact us to order
1985990131Ferrari Compl. Rear Bumper - 985990131Price on requestContact us to order
255017843Ferrari Compl. Diffuser - 55017843$16,249.23Contact us to order
255017889Ferrari Compl. Diffuser - 55017889$10,725.08Contact us to order
255017896Ferrari Compl. Diffuser - 55017896$21,981.81Contact us to order
255017900Ferrari Compl. Diffuser - 55017900Price on requestContact us to order
255021316Ferrari Compl. Diffuser - 55021316$21,981.81Contact us to order
255021333Ferrari Compl. Diffuser - 55021333$21,981.81Contact us to order
381591700Ferrari Screw TE M6 x 18 with washer - 81591700$4.12Available, ships in 3-6 days
4971229Ferrari LH Lower Mesh - 971229$305.96Special order, ships in 7-14 days
4971231Ferrari RH Lower Mesh - 971231$305.96Special order, ships in 7-14 days
5766266Ferrari Screw M5 x 14 - 766266$1.17Special order, ships in 7-14 days
613577778Ferrari Washer - 13577778$0.57Special order, ships in 7-14 days
7943114Ferrari Clip - 943114$8.05Special order, ships in 7-14 days
8770173Ferrari Plug - 770173$3.41Special order, ships in 7-14 days
9977290Ferrari Complete Centre Mounting Bracket - 977290$41.76Special order, ships in 7-14 days
1011620724Ferrari Screw - 11620724$1.69Available, ships in 3-6 days
1114039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
12774877Ferrari Washer - 774877$1.82Special order, ships in 7-14 days
1312640624Ferrari Plain Washer 6mm - 12640624$0.31Available, ships in 3-6 days
14807298Ferrari Screw - 807298$30.57Special order, ships in 7-14 days
15809458Ferrari Compl. LH Side Mounting Brac - 809458$31.93Special order, ships in 7-14 days
15809475Ferrari Compl. RH Side Mounting Brac - 809475$31.93Special order, ships in 7-14 days
1616285224Ferrari Screw 5x20 - 16285224$0.52Available, ships in 3-6 days
1782889700Ferrari Clip - 82889700$1.63Available, ships in 3-6 days
18820416Ferrari Central Mesh - 820416$961.65Special order, ships in 7-14 days
18971239Ferrari Central Mesh - 971239$284.11Special order, ships in 7-14 days
1988135100Ferrari Centre Heat Shield - 88135100$174.55Special order, ships in 7-14 days
2081544800Ferrari/Maserati Parking Sensor Ring - 81544800$11.59In stock
21994364Ferrari Sportello Esterno Dx Cpl - 994364$1,770.31Special order, ships in 7-14 days
22994363Ferrari Sportello Esterno Sx Cpl - 994363$1,770.31Special order, ships in 7-14 days
23994368Ferrari Sportello Centrale Dx Cpl - 994368$1,426.08Special order, ships in 7-14 days
24994365Ferrari Sportello Centrale Sx Cpl - 994365$1,426.08Special order, ships in 7-14 days
25910850Ferrari Rear Fog Light - 910850$568.23Special order, ships in 7-14 days
2669396000Ferrari Screw M4 X 16 - 69396000$1.55Special order, ships in 7-14 days
2714370171Ferrari Screw Clip - 14370171$4.35Available, ships in 3-6 days
28295361Ferrari Parking Sensor - 295361$80.91In stock
29336484Ferrari Ring Clamp - 336484$15.72Special order, ships in 7-14 days
30809478Ferrari Staffa Inferiore Paraurti Po - 809478$95.87Special order, ships in 7-14 days
30809484Ferrari Staffa Inferiore Paraurti Po - 809484$95.87Special order, ships in 7-14 days
31256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
32925745Ferrari Screw M5 x 35 TBFTX - 925745$3.03Special order, ships in 7-14 days
33858172Ferrari Flexitol M5X30 - 858172$117.99Special order, ships in 7-14 days
3480874300Ferrari Clip - 80874300$1.97Available, ships in 3-6 days
35901262Ferrari RH Reflector - 901262$85.22Special order, ships in 7-14 days
36901263Ferrari LH Reflector - 901263$85.22Special order, ships in 7-14 days
3789241300Ferrari Nut - 89241300$32.76Special order, ships in 7-14 days
3886705000Ferrari Screw M5x10 TBFTX - 86705000$1.36Special order, ships in 7-14 days
3987329700Ferrari LH Rear Side Marker - 87329700$122.36Special order, ships in 7-14 days
3987329800Ferrari RH Rear Side Marker - 87329800$122.36Special order, ships in 7-14 days
41975569Ferrari COMPL. LH IMPACT ABSORBER BRACKET - 975569Price on requestContact us for price and availability
41975568Ferrari COMPL. RH IMPACT ABSORBER BRACKET - 975568Price on requestContact us for price and availability
4213046014Ferrari Nut - 13046014$0.63Special order, ships in 7-14 days
4385833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
4311566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days

All 12 Cilindri diagrams
