Ferrari 12 Cilindri — [VEHICLE TRIM] - E.46 - INTERNAL BULKHEAD WALL TRIM (diagram 0148)

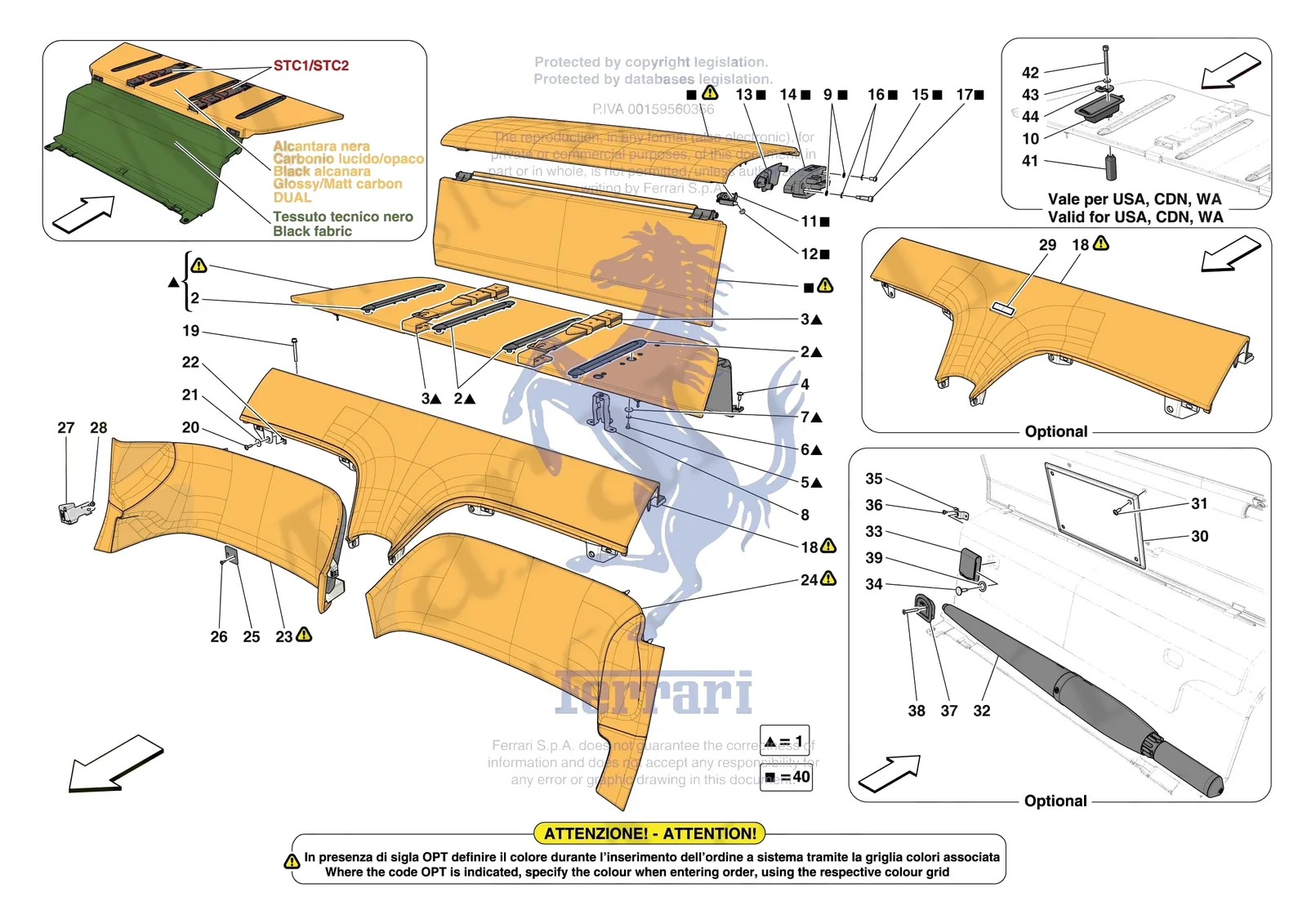

Exploded view of the [vehicle trim] - e.46 - internal bulkhead wall trim on the Ferrari 12 Cilindri, with 88 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [VEHICLE TRIM] - E.46 - INTERNAL BULKHEAD WALL TRIM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0148.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 798834 | Ferrari Compl. Umbrella - 798834 | Superseded | Order 902308 instead | |
| 12643707 | Ferrari Washer - 12643707 | Superseded | Order 12643778 instead | |
| 12643777 | Ferrari Washer - 12643777 | Superseded | Order 12643778 instead | |
| 1 | 55001678 | Ferrari LUGGAGE SHELF - 55001678 | Price on request | Contact us for price and availability |
| 1 | 55001681 | Ferrari LUGGAGE SHELF - 55001681 | Price on request | Contact us for price and availability |
| 1 | 55001684 | Ferrari LUGGAGE SHELF - 55001684 | Price on request | Contact us for price and availability |
| 1 | 55001686 | Ferrari LUGGAGE SHELF - 55001686 | Price on request | Contact us for price and availability |
| 1 | 55003141 | Ferrari LUGGAGE SHELF - 55003141 | Price on request | Contact us for price and availability |
| 1 | 55003143 | Ferrari LUGGAGE SHELF - 55003143 | Price on request | Contact us for price and availability |
| 1 | 55003148 | Ferrari LUGGAGE SHELF - 55003148 | Price on request | Contact us for price and availability |
| 1 | 55003152 | Ferrari LUGGAGE SHELF - 55003152 | Price on request | Contact us for price and availability |
| 1 | 835437 | Ferrari LUGGAGE SHELF - 835437 | Price on request | Contact us for price and availability |
| 1 | 835584 | Ferrari LUGGAGE SHELF - 835584 | Price on request | Contact us for price and availability |
| 1 | 835685 | Ferrari LUGGAGE SHELF - 835685 | Price on request | Contact us for price and availability |
| 1 | 835773 | Ferrari LUGGAGE SHELF - 835773 | Price on request | Contact us for price and availability |
| 1 | 956933 | Ferrari LUGGAGE SHELF - 956933 | Price on request | Contact us for price and availability |
| 1 | 957022 | Ferrari LUGGAGE SHELF - 957022 | Price on request | Contact us for price and availability |
| 1 | 960690 | Ferrari LUGGAGE SHELF - 960690 | Price on request | Contact us for price and availability |
| 1 | 960691 | Ferrari LUGGAGE SHELF - 960691 | Price on request | Contact us for price and availability |
| 1 | 988615 | Ferrari LUGGAGE SHELF - 988615 | Price on request | Contact us for price and availability |
| 1 | 988670 | Ferrari LUGGAGE SHELF - 988670 | Price on request | Contact us for price and availability |
| 1 | 988683 | Ferrari LUGGAGE SHELF - 988683 | Price on request | Contact us for price and availability |
| 1 | 988711 | Ferrari LUGGAGE SHELF - 988711 | Price on request | Contact us for price and availability |
| 1 | 995712 | Ferrari LUGGAGE SHELF - 995712 | Price on request | Contact us for price and availability |
| 1 | 995715 | Ferrari LUGGAGE SHELF - 995715 | Price on request | Contact us for price and availability |
| 1 | 995717 | Ferrari LUGGAGE SHELF - 995717 | Price on request | Contact us for price and availability |
| 1 | 995719 | Ferrari LUGGAGE SHELF - 995719 | Price on request | Contact us for price and availability |
| 1 | 995743 | Ferrari LUGGAGE SHELF - 995743 | Price on request | Contact us for price and availability |
| 1 | 995749 | Ferrari LUGGAGE SHELF - 995749 | Price on request | Contact us for price and availability |
| 1 | 995754 | Ferrari LUGGAGE SHELF - 995754 | Price on request | Contact us for price and availability |
| 1 | 995762 | Ferrari LUGGAGE SHELF - 995762 | Price on request | Contact us for price and availability |
| 1 | 995782 | Ferrari LUGGAGE SHELF - 995782 | Price on request | Contact us for price and availability |
| 1 | 995789 | Ferrari LUGGAGE SHELF - 995789 | Price on request | Contact us for price and availability |
| 1 | 995795 | Ferrari LUGGAGE SHELF - 995795 | Price on request | Contact us for price and availability |
| 1 | 995798 | Ferrari LUGGAGE SHELF - 995798 | Price on request | Contact us for price and availability |
| 2 | 85512000 | Ferrari COMPL. LUGGAGE COMPARTMENT MAT INSERT - 85512000 | Price on request | Contact us for price and availability |
| 3 | 55038208 | Ferrari COMPL. LUGGAGE SHELF STRAP - 55038208 | Price on request | Contact us for price and availability |
| 4 | 81911600 | Ferrari Screw M6 x 22 - 81911600 | $0.98 | Special order, ships in 7-14 days |
| 5 | 65752800 | Ferrari Screw M4 x 10 TBEI - 65752800 | $4.12 | Available, ships in 3-6 days |
| 8 | 835800 | Ferrari Fastener Bracket - 835800 | $147.51 | Special order, ships in 7-14 days |
| 9 | 84863200 | Ferrari Washer - 84863200 | $15.05 | Special order, ships in 7-14 days |
| 10 | 81153400 | Ferrari Isofix Surround - 81153400 | $368.79 | Special order, ships in 7-14 days |
| 11 | 85268200 | Ferrari LH Parcel Shelf Retainer Pin - 85268200 | $100.78 | Special order, ships in 7-14 days |
| 11 | 85267800 | Ferrari RH Parcel Shelf Retainer Pin - 85267800 | $100.78 | Special order, ships in 7-14 days |
| 12 | 85691900 | Ferrari Screw M5 x 8 TBFTX - 85691900 | $0.65 | Available, ships in 3-6 days |
| 13 | 84863100 | Ferrari LH Parcel Shelf Fastener Block - 84863100 | $90.95 | Special order, ships in 7-14 days |
| 13 | 84863000 | Ferrari RH Parcel Shelf Fastener Block - 84863000 | $90.95 | Special order, ships in 7-14 days |
| 14 | 55004977 | Ferrari LH Removable Fastener Block - 55004977 | $565.49 | Special order, ships in 7-14 days |
| 14 | 55004974 | Ferrari RH Removable Fastener Block - 55004974 | $565.49 | Special order, ships in 7-14 days |
| 15 | 85013000 | Ferrari Screw - 85013000 | $270.44 | Special order, ships in 7-14 days |
| 16 | 85013600 | Ferrari Washer - 85013600 | $9.16 | Special order, ships in 7-14 days |
| 17 | 13025787 | Ferrari Screw - 13025787 | $0.84 | Special order, ships in 7-14 days |
| 18 | 835787 | Ferrari COMPL. LUGGAGE RETAINER LIP - 835787 | Price on request | Contact us to order |
| 18 | 972758 | Ferrari COMPL. LUGGAGE RETAINER LIP - 972758 | Price on request | Contact us to order |
| 18 | 982639 | Ferrari Compl. Luggage Retainer Lip - 982639 | $4,903.55 | Contact us to order |
| 18 | 982650 | Ferrari COMPL. LUGGAGE RETAINER LIP - 982650 | Price on request | Contact us to order |
| 19 | 231625 | Ferrari Screw 6x50 - 231625 | $1.25 | Available, ships in 3-6 days |
| 20 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 21 | 12643778 | Ferrari Washer 6-18 x 1.5 - 12643778 | $0.54 | Available, ships in 3-6 days |
| 22 | 67278400 | Ferrari BRACKET - 67278400 | $21.60 | Special order, ships in 7-14 days |
| 23 | 835217 | Ferrari Compl. RH Rear Bulkhead - 835217 | $3,201.13 | Contact us to order |
| 23 | 835393 | Ferrari COMPL. RH REAR BULKHEAD - 835393 | Price on request | Contact us for price and availability |
| 24 | 835244 | Ferrari COMPL. LH REAR BULKHEAD - 835244 | $3,311.18 | Contact us to order |
| 24 | 835402 | Ferrari COMPL. LH REAR BULKHEAD - 835402 | Price on request | Contact us for price and availability |
| 25 | 87131300 | Ferrari Dual Lock - 87131300 | $8.72 | Special order, ships in 7-14 days |
| 26 | 88822200 | Ferrari Screw 4 x 10 - 88822200 | $1.30 | Special order, ships in 7-14 days |
| 27 | 55033889 | Ferrari Compl. LH Rear Bulkhead Fastener Bracket - 55033889 | $110.61 | Special order, ships in 7-14 days |
| 27 | 55033891 | Ferrari Compl. RH Rear Bulkhead Fastener Bracket - 55033891 | $110.61 | Special order, ships in 7-14 days |
| 28 | 85692300 | Ferrari Screw M5 x 20 TBFTX - 85692300 | $0.65 | Available, ships in 3-6 days |
| 29 | 953760 | Ferrari LABEL - 953760 | $1,426.08 | Special order, ships in 7-14 days |
| 29 | 953761 | Ferrari Label - 953761 | $2,854.54 | Special order, ships in 7-14 days |
| 30 | 87731010 | Ferrari Vehicle Opt. List Holder - 87731010 | $614.67 | Special order, ships in 7-14 days |
| 31 | 935243 | Ferrari Screw TBFTX T20 M4 x 10 Nerinox - 935243 | $0.96 | Special order, ships in 7-14 days |
| 32 | 902308 | Ferrari Compl. Umbrella - 902308 | $2,376.83 | Special order, ships in 7-14 days |
| 33 | 961665 | Ferrari Umbrella Mount - 961665 | $295.03 | Special order, ships in 7-14 days |
| 34 | 82362500 | Ferrari Screw - 82362500 | $1.49 | Available, ships in 3-6 days |
| 35 | 991125 | Ferrari Umbrella Fastener Bracket - 991125 | $639.27 | Special order, ships in 7-14 days |
| 36 | 85692000 | Ferrari SCREW - 85692000 | $0.65 | Available, ships in 3-6 days |
| 37 | 82541600 | Ferrari Luggage Retainer Hook - 82541600 | $73.73 | Special order, ships in 7-14 days |
| 38 | 14441024 | Ferrari Screw 5x30 - 14441024 | $1.04 | Special order, ships in 7-14 days |
| 39 | 81916900 | Ferrari Anti-Abrasion Washer - 81916900 | $3.47 | Available, ships in 3-6 days |
| 40 | 835167 | Ferrari Cappelliera Anteriore Carbon - 835167 | $11,444.00 | Contact us to order |
| 40 | 983088 | Ferrari COMPL. ALCANTARA FRONT PARCEL SHELF - 983088 | Price on request | Contact us for price and availability |
| 40 | 835177 | Ferrari Compl. Leather Front Parcel - 835177 | $15,108.81 | Contact us to order |
| 41 | 914714 | Ferrari Distanziale Per Top Tether - 914714 | $68.83 | Special order, ships in 7-14 days |
| 42 | 14307224 | Ferrari Screw M8 x 85 - 14307224 | $1.17 | Available, ships in 3-6 days |
| 43 | 14496527 | Ferrari Washer - 14496527 | $2.38 | Available, ships in 3-6 days |
| 44 | 69953400 | Ferrari Belt Fastener Bracket - 69953400 | $39.31 | Special order, ships in 7-14 days |
