Ferrari 12 Cilindri — [VEHICLE TRIM] - E.47.03 - DASHBOARD - TRIM -Not for RHD- (diagram 0151)

Exploded view of the [vehicle trim] - e.47.03 - dashboard - trim -not for rhd- on the Ferrari 12 Cilindri, with 64 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

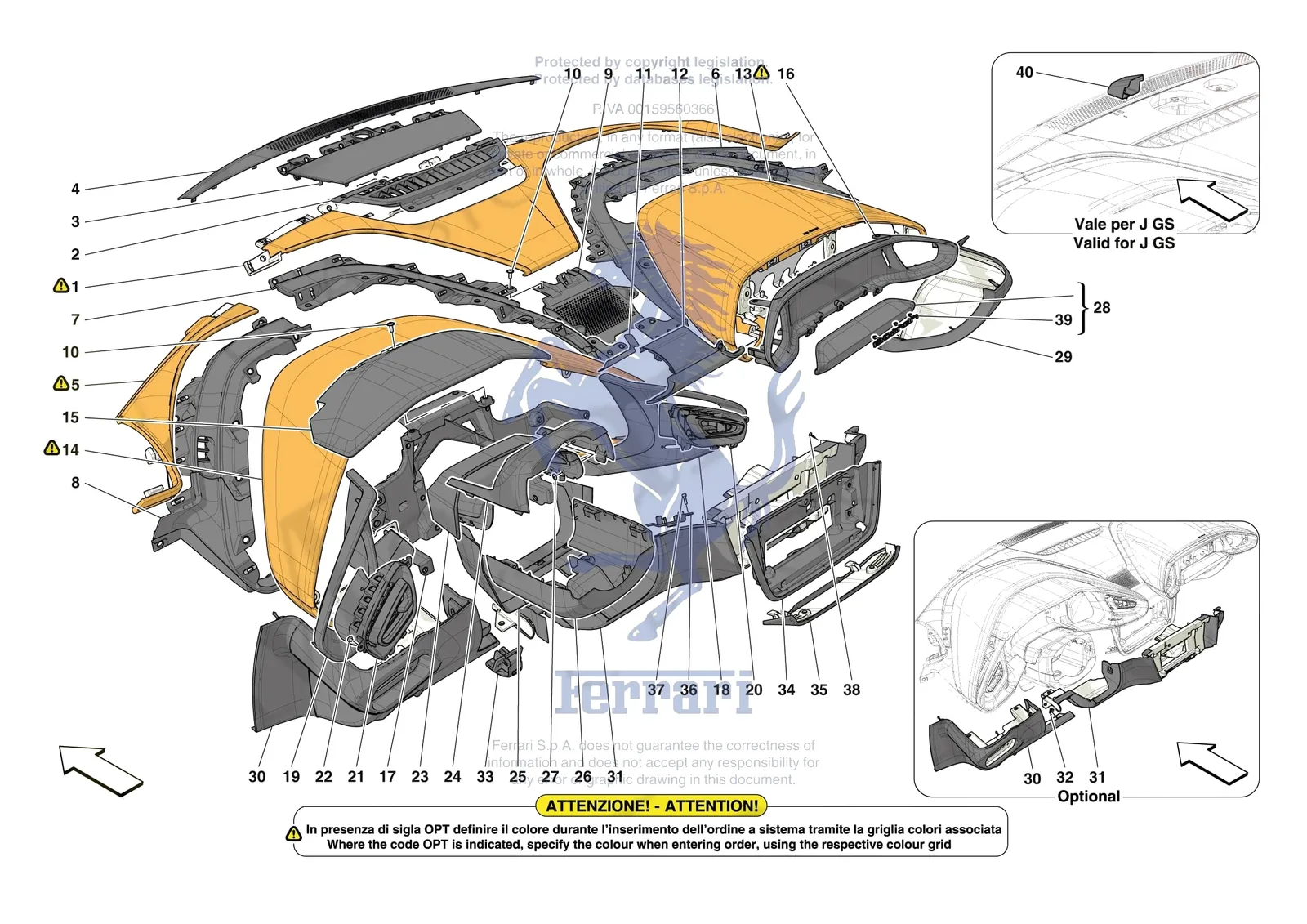

Ferrari 12 Cilindri [VEHICLE TRIM] - E.47.03 - DASHBOARD - TRIM -Not for RHD- exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
88958200Ferrari Screw M3 x 6 - 88958200SupersededOrder 811421 instead
155073853Ferrari Compl. Centre Upper Cover - 55073853$1,401.51Special order, ships in 7-14 days
2849189Ferrari Compl. Defroster Surround - 849189$270.44Special order, ships in 7-14 days
3848035Ferrari Compl. Dashboard Grille - 848035$663.86Special order, ships in 7-14 days
4997788Ferrari Underwindscreen Tray - 997788$270.44Special order, ships in 7-14 days
555073848Ferrari COMPL. UPPER DRIVER SIDE COVER - 55073848Price on requestContact us for price and availability
6845152Ferrari Compl. Passenger Side Gutter - 845152$639.27Special order, ships in 7-14 days
6851265Ferrari Compl. Passenger Side Gutter - 851265Price on requestContact us for price and availability
7811787Ferrari Compl. RH Driver Side Gutter - 811787$270.44Special order, ships in 7-14 days
7851231Ferrari Compl. RH Driver Side Gutter - 851231$3,798.25Special order, ships in 7-14 days
8810236Ferrari Compl. LH Driver Side Gutter - 810236$467.15Special order, ships in 7-14 days
8849468Ferrari Compl. LH Driver Side Gutter - 849468$4,023.07Special order, ships in 7-14 days
9845162Ferrari Compl. Diffuser Grille - 845162$206.52Special order, ships in 7-14 days
1085692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
11823239Ferrari Microphone Ground Mesh - 823239$58.98Special order, ships in 7-14 days
1255003501Ferrari Central Insert - 55003501$2,922.46Special order, ships in 7-14 days
12823372Ferrari Central Insert - 823372$491.74Special order, ships in 7-14 days
13942856Ferrari Compl. Upholstered Coverbag - 942856$24,196.88Contact us to order
14824887Ferrari Compl. Binnacle - 824887$3,416.56Special order, ships in 7-14 days
15824889Ferrari INSTRUMENT CLUSTER BROW - 824889Price on requestContact us for price and availability
15824917Ferrari Instrument Cluster Brow - 824917$5,734.87Special order, ships in 7-14 days
16823389Ferrari Passenger Side Surround - 823389$2,013.87Special order, ships in 7-14 days
16823390Ferrari Passenger Side Surround - 823390$2,013.87Special order, ships in 7-14 days
17824913Ferrari Instrument Bracket - 824913$169.62Special order, ships in 7-14 days
18824909Ferrari Compl. RH Vent Surround - 824909$1,106.43Special order, ships in 7-14 days
18824911Ferrari Compl. RH Vent Surround - 824911$2,519.67Special order, ships in 7-14 days
19824906Ferrari Compl. LH Vent Surround - 824906$1,081.84Special order, ships in 7-14 days
19824908Ferrari Compl. LH Vent Surround - 824908$2,519.67Special order, ships in 7-14 days
20824895Ferrari RH Vent - 824895$442.56Special order, ships in 7-14 days
21824894Ferrari LH Vent - 824894$442.56Special order, ships in 7-14 days
22811421Ferrari Screw M3 x 6 - 811421$0.82Special order, ships in 7-14 days
2355073851Ferrari COMPL. SUN VISOR - 55073851Price on requestContact us for price and availability
24850049Ferrari Upper Steering Column Shield - 850049$88.49Special order, ships in 7-14 days
25825499Ferrari Compl. Underdash Membrane - 825499$713.04Special order, ships in 7-14 days
26830384Ferrari Lower Steering Column Shield - 830384$110.61Special order, ships in 7-14 days
26830323Ferrari Part Search Results - 830323$162.25Special order, ships in 7-14 days
27999530Ferrari Clip - 999530$0.90Special order, ships in 7-14 days
2714228476Ferrari Plate - 14228476$2.59Special order, ships in 7-14 days
28825371Ferrari Compl. Cushion - 825371$2,060.69Special order, ships in 7-14 days
2955073850Ferrari COMPL. LATERAL GLOVE COMPARTMENT TRIM - 55073850Price on requestContact us for price and availability
2955073926Ferrari COMPL. LATERAL GLOVE COMPARTMENT TRIM - 55073926Price on requestContact us for price and availability
3055073835Ferrari Compl. Driver Side Underdash Trim Panel - 55073835$909.73Special order, ships in 7-14 days
3055073854Ferrari Compl. Driver Side Underdash Trim Panel - 55073854Price on requestContact us for price and availability
3055073922Ferrari Compl. Driver Side Underdash Trim Panel - 55073922Price on requestContact us for price and availability
3055073931Ferrari Compl. Driver Side Underdash Trim Panel - 55073931$1,967.03Special order, ships in 7-14 days
3070008556Ferrari Compl. Driver Side Underdash Trim Panel - 70008556$1,745.74Special order, ships in 7-14 days
3155073849Ferrari COMPL. CENTRE LOWER TRIM - 55073849Price on requestContact us for price and availability
3155073923Ferrari COMPL. CENTRE LOWER TRIM - 55073923Price on requestContact us for price and availability
3155073954Ferrari COMPL. CENTRE LOWER TRIM - 55073954Price on requestContact us for price and availability
3155073955Ferrari Compl. Centre Lower Trim - 55073955$2,620.38Special order, ships in 7-14 days
32848116Ferrari Compl. Fastener Bracket - 848116$147.51Special order, ships in 7-14 days
33747464Ferrari Engine Compartment Lid Handl - 747464$49.14Special order, ships in 7-14 days
34825507Ferrari Display Mounting Substructur - 825507$516.33Special order, ships in 7-14 days
3555073852Ferrari COMPL. DISPLAY BEZEL - 55073852Price on requestContact us for price and availability
3555073925Ferrari COMPL. DISPLAY BEZEL - 55073925Price on requestContact us for price and availability
36825210Ferrari Temperature Sensor Cover Gri - 825210$88.49Special order, ships in 7-14 days
3714303123Ferrari Screw - 14303123$0.12Available, ships in 3-6 days
3714303124Ferrari SCREW - 14303124SupersededOrder 14303123 instead
3865752800Ferrari Screw M4 x 10 TBEI - 65752800$4.12Available, ships in 3-6 days
38986200Ferrari Torx Screw - 986200$0.44Special order, ships in 7-14 days
3955019765Ferrari Vehicle Logo - 55019765$295.03Special order, ships in 7-14 days
40920564Ferrari Vics Base - 920564$90.95Special order, ships in 7-14 days
