Ferrari 12 Cilindri — [VEHICLE TRIM] - E.47.06 - DASHBOARD - DUCTS -Applicable for RHD- (diagram 0154)

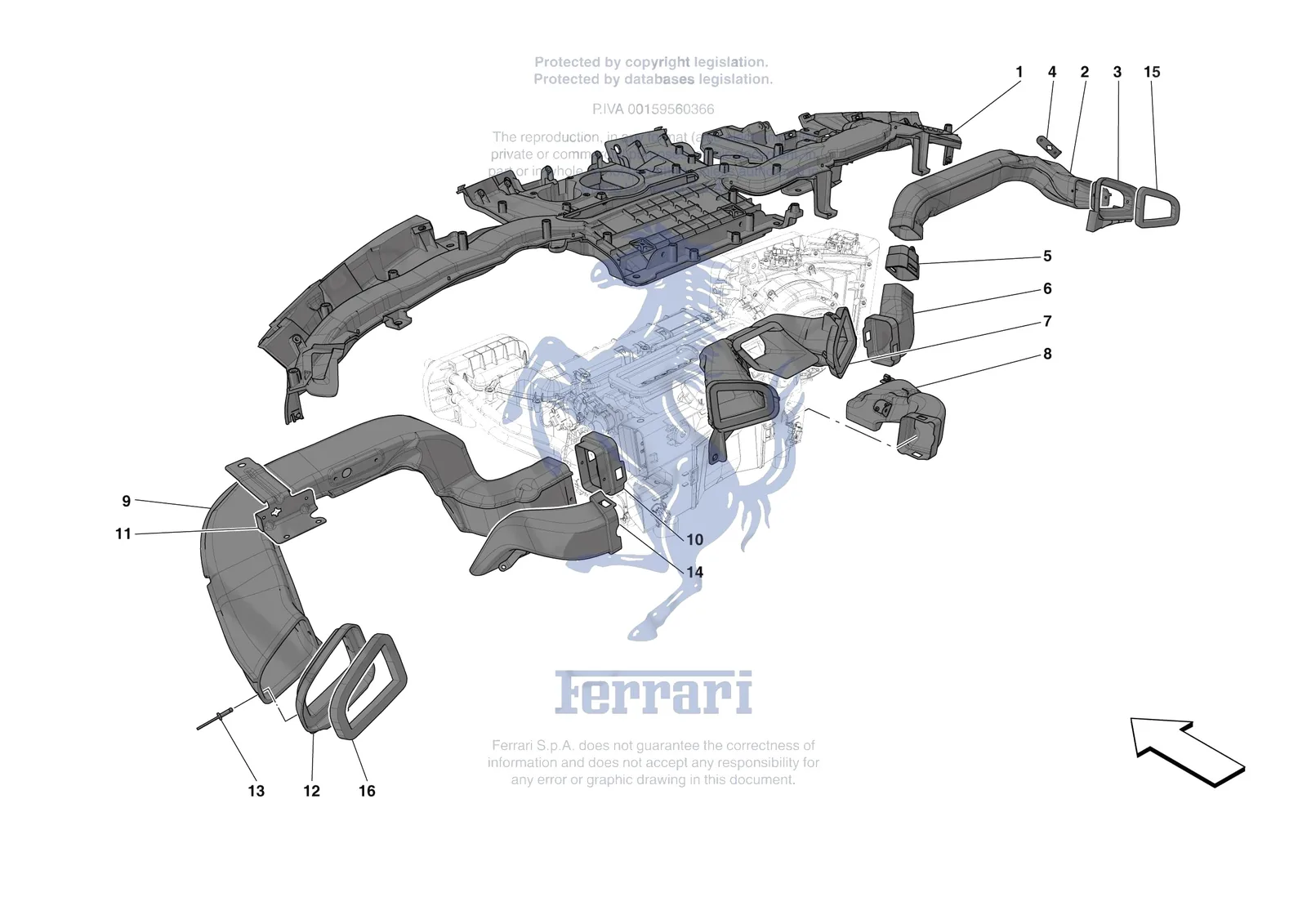

Exploded view of the [vehicle trim] - e.47.06 - dashboard - ducts -applicable for rhd- on the Ferrari 12 Cilindri, with 17 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [VEHICLE TRIM] - E.47.06 - DASHBOARD - DUCTS -Applicable for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0154.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 966940 | Ferrari Compl. Defroster Duct - 966940 | $1,819.49 | Special order, ships in 7-14 days |
| 2 | 987986 | Ferrari RH Driver Side Air Duct Term - 987986 | $295.03 | Special order, ships in 7-14 days |
| 3 | 966893 | Ferrari Right Hand Driver Side Vent - 966893 | $319.62 | Special order, ships in 7-14 days |
| 4 | 822881 | Ferrari Driver Side Temperature Sens - 822881 | $21.60 | Special order, ships in 7-14 days |
| 5 | 987987 | Ferrari RH Driver Side Air Duct Conn - 987987 | $46.69 | Special order, ships in 7-14 days |
| 6 | 987985 | Ferrari RH Driver Side Hvac Duct Fit - 987985 | $81.11 | Special order, ships in 7-14 days |
| 7 | 966930 | Ferrari Compl. Centre Air Duct - 966930 | $393.38 | Special order, ships in 7-14 days |
| 7 | 993288 | Ferrari Compl. Centre Air Duct - 993288 | $442.56 | Special order, ships in 7-14 days |
| 8 | 966948 | Ferrari Compl. Driver Side Footwell - 966948 | $565.49 | Special order, ships in 7-14 days |
| 9 | 966915 | Ferrari LH Passenger Side Air Duct - 966915 | $344.21 | Special order, ships in 7-14 days |
| 10 | 741374 | Ferrari Left Hand Hvac Pipe Coupling - 741374 | $31.93 | Special order, ships in 7-14 days |
| 11 | 966917 | Ferrari Passenger Side Temperature S - 966917 | $71.28 | Special order, ships in 7-14 days |
| 12 | 966916 | Ferrari LH Hand Passenger Side Vent - 966916 | $319.62 | Special order, ships in 7-14 days |
| 13 | 946493 | Ferrari Rivet - 946493 | $0.44 | Special order, ships in 7-14 days |
| 14 | 89388500 | Ferrari Passenger Side Footwell Vent - 89388500 | $270.44 | Special order, ships in 7-14 days |
| 15 | 823036 | Ferrari RH Vent Seal - 823036 | $32.76 | Special order, ships in 7-14 days |
| 16 | 822925 | Ferrari LH Driver Side Vent Seal - 822925 | $32.76 | Special order, ships in 7-14 days |
