Ferrari 12 Cilindri — [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM (diagram 0170)

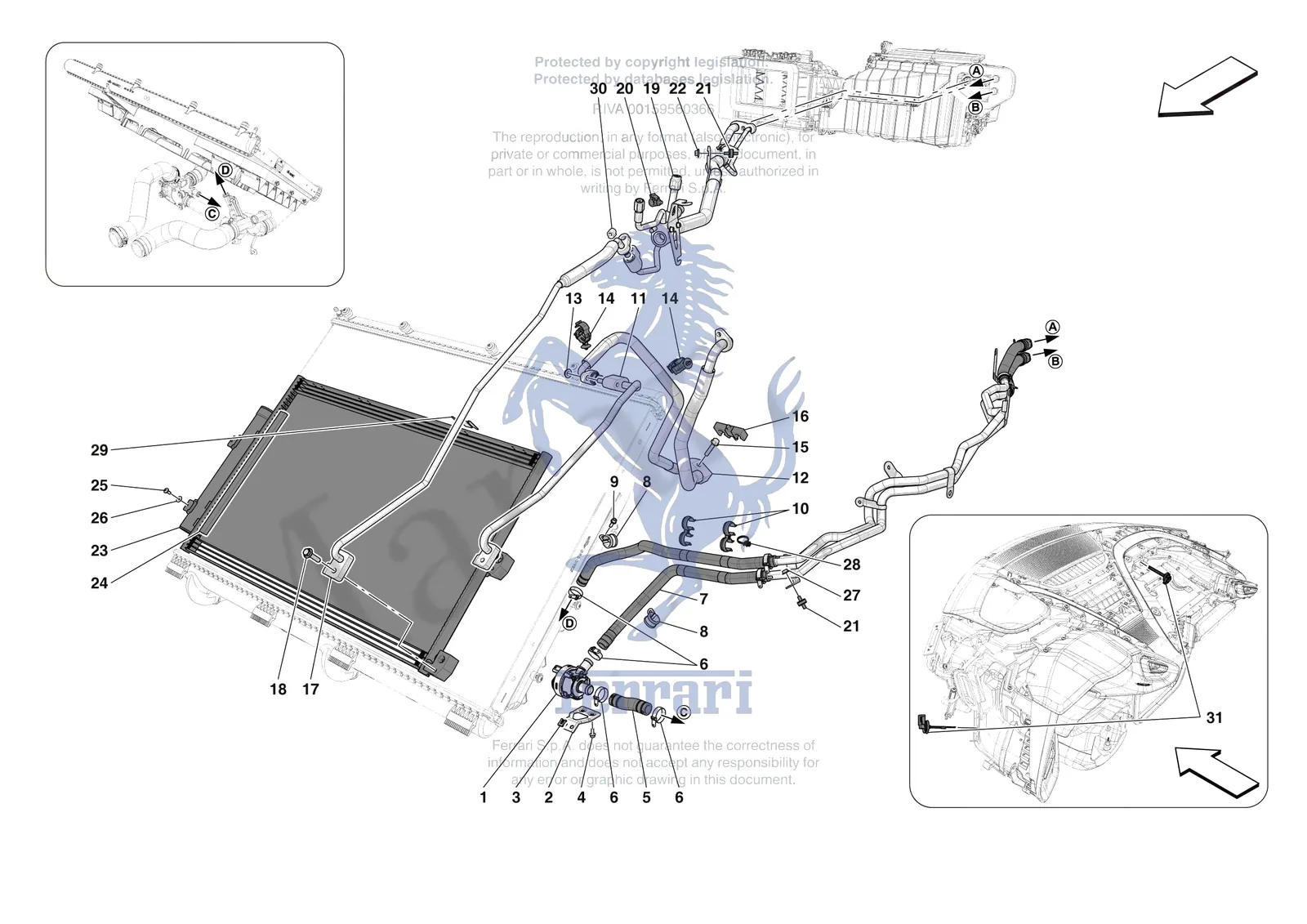

Exploded view of the [vehicle trim] - e.57.02 - ac system - air conditioner system on the Ferrari 12 Cilindri, with 42 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0170.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 16044021 | Ferrari Bolt - 16044021 | Superseded | Order 16044024 instead | |
| 222826 | Ferrari Clip - 222826 | $5.44 | Special order, ships in 7-14 days | |
| 262112 | Ferrari Collar - 262112 | Superseded | Order 262111 instead | |
| 14066017 | Ferrari Nut - 14066017 | $5.65 | Special order, ships in 7-14 days | |
| 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead | |
| 119631 | Ferrari Screw - 119631 | Superseded | Order 16044024 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 10860370 | Ferrari Screw Collar - 10860370 | $3.26 | Special order, ships in 7-14 days | |
| 13127770 | Ferrari Screw Collar - 13127770 | $2.82 | Special order, ships in 7-14 days | |
| 268210 | Ferrari Screw Collar - 268210 | $6.32 | Special order, ships in 7-14 days | |
| 1 | 291349 | Ferrari Idle Water Recirculation Pump - 291349 | $5,509.80 | Special order, ships in 7-14 days |
| 2 | 326221 | Ferrari Idle Speed Pump Mounting Bracket - 326221 | $49.14 | Special order, ships in 7-14 days |
| 3 | 82268600 | Ferrari Clip - 82268600 | $4.12 | Special order, ships in 7-14 days |
| 4 | 16286024 | Ferrari SCREW - 16286024 | $0.38 | Available, ships in 3-6 days |
| 5 | 856411 | Ferrari HOSE FROM THERMOSTAT VALVE TO RECIRCULATION PUMP - 856411 | $86.04 | Special order, ships in 7-14 days |
| 6 | 262111 | Ferrari Screw Collar - 262111 | $3.03 | Special order, ships in 7-14 days |
| 7 | 820004 | Ferrari COMPL. HVAC HEATER PIPE - 820004 | $1,920.19 | Special order, ships in 7-14 days |
| 8 | 10441990 | Ferrari P Clip Bracket With Sheath - 10441990 | $1.42 | Available, ships in 3-6 days |
| 9 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 10 | 160013 | Ferrari Oil Pipe Retaining Clip - 160013 | $1.69 | Available, ships in 3-6 days |
| 11 | 747918 | Ferrari HCAV CONDENSER INLET PIPE - 747918 | $270.44 | Special order, ships in 7-14 days |
| 12 | 747916 | Ferrari HCAV COMPRESSOR INLET/OUTLET PIPE - 747916 | $1,155.62 | Special order, ships in 7-14 days |
| 13 | 14066021 | Ferrari Nut - 14066021 | $5.86 | Special order, ships in 7-14 days |
| 14 | 267177 | Ferrari Clip D.20-21.5 - 267177 | $2.01 | Special order, ships in 7-14 days |
| 15 | 16044024 | Ferrari Bolt - 16044024 | $0.72 | In stock |
| 16 | 294693 | Ferrari Clip - 294693 | $8.05 | Special order, ships in 7-14 days |
| 17 | 746891 | Ferrari HCAV CONDENSER OUTLET PIPE - 746891 | $344.21 | Special order, ships in 7-14 days |
| 18 | 13837017 | Ferrari Screw 6X30 - 13837017 | $7.19 | Special order, ships in 7-14 days |
| 19 | 55009608 | Ferrari HVAC IHX PIPE - 55009608 | Price on request | Contact us for price and availability |
| 20 | 263230 | Ferrari Clip - 263230 | $2.82 | Special order, ships in 7-14 days |
| 21 | 225408 | Ferrari Cylindrical Bushing - 225408 | $12.99 | Special order, ships in 7-14 days |
| 22 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 23 | 851018 | Ferrari Condenser - 851018 | $1,005.35 | Special order, ships in 7-14 days |
| 24 | 55008890 | Ferrari Rubber Shim - 55008890 | $9.31 | Special order, ships in 7-14 days |
| 25 | 81973300 | Ferrari Screw M4.5 x 12 TBEI - 81973300 | $3.03 | Available, ships in 3-6 days |
| 26 | 12642878 | Ferrari Washer - 12642878 | $0.19 | Available, ships in 3-6 days |
| 27 | 13046112 | Ferrari Nut - 13046112 | $0.46 | Available, ships in 3-6 days |
| 28 | 69708300 | Ferrari Clip - 69708300 | $2.59 | Available, ships in 3-6 days |
| 28 | 898766 | Ferrari Ring Clamp - 898766 | $6.10 | Special order, ships in 7-14 days |
| 29 | 816589 | Ferrari Condenser Spacer - 816589 | $8.28 | Special order, ships in 7-14 days |
| 30 | 278889 | Ferrari Rubber Ring - 278889 | $41.50 | Special order, ships in 7-14 days |
| 31 | 88712600 | Ferrari Temperature Sensor - 88712600 | $34.94 | Special order, ships in 7-14 days |
