Ferrari 12 Cilindri — [ELECTRICAL SYSTEM] - F.04 - OTHER ELECTRICAL CONTROLS (diagram 0179)

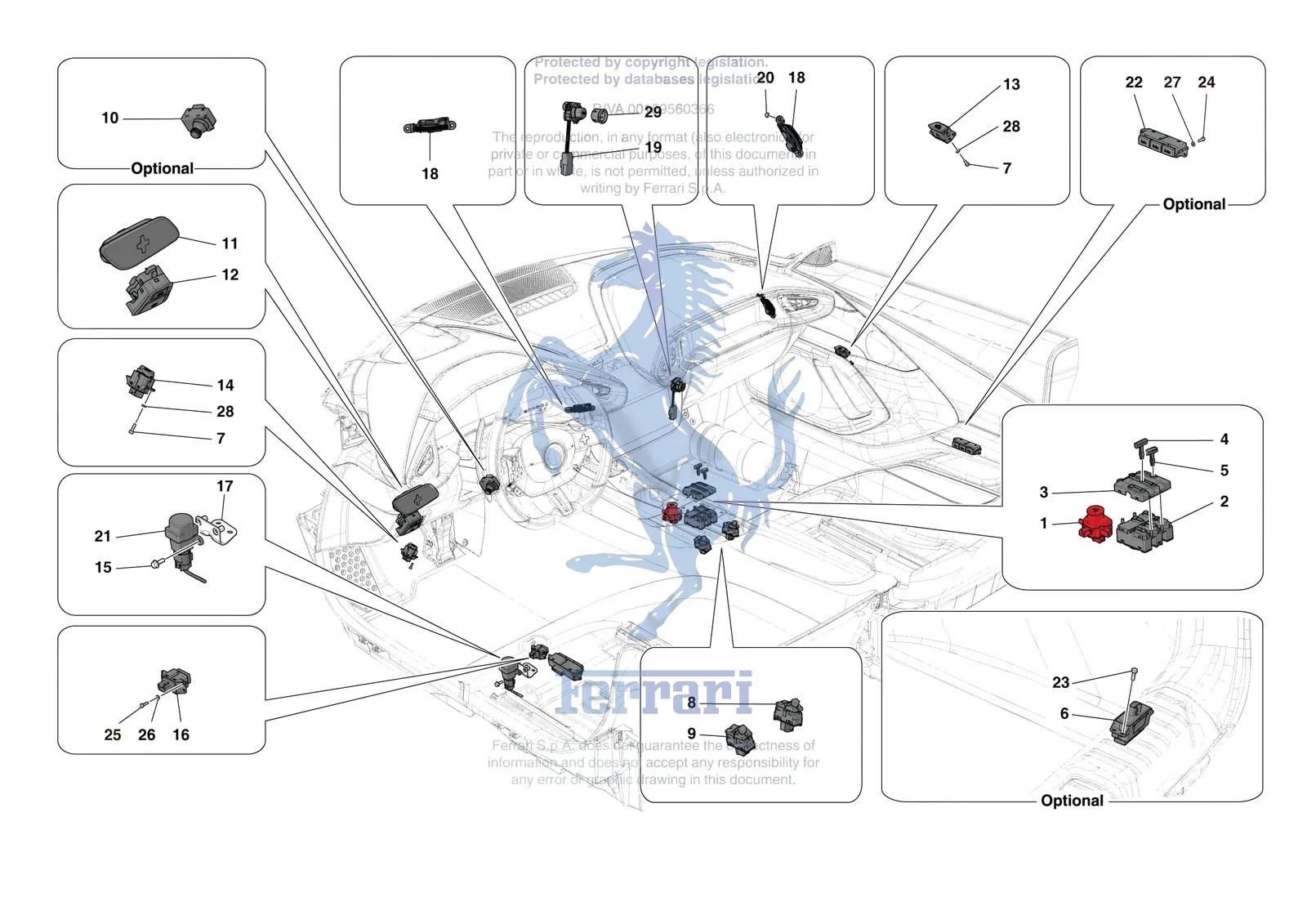

Exploded view of the [electrical system] - f.04 - other electrical controls on the Ferrari 12 Cilindri, with 21 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [ELECTRICAL SYSTEM] - F.04 - OTHER ELECTRICAL CONTROLS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0179.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 88958200 | Ferrari Screw M3 x 6 - 88958200 | Superseded | Order 811421 instead | |
| 1 | 894157 | Ferrari Hazard Warning Lights Contro - 894157 | $762.20 | Special order, ships in 7-14 days |
| 6 | 911467 | Ferrari Close Electric Tailgate Butt - 911467 | $344.21 | Special order, ships in 7-14 days |
| 7 | 14418131 | Ferrari Screw M3 x 10 TCEI - 14418131 | $0.38 | Available, ships in 3-6 days |
| 10 | 913941 | Ferrari Steering Column Adjustment C - 913941 | $393.38 | Special order, ships in 7-14 days |
| 11 | 834773 | Ferrari Satellite Control - 834773 | $2,458.79 | Special order, ships in 7-14 days |
| 11 | 834900 | Ferrari Satellite Control - 834900 | $2,517.33 | Special order, ships in 7-14 days |
| 12 | 319555 | Ferrari EPB Switch With Autopark Disable - 319555 | $417.97 | Special order, ships in 7-14 days |
| 13 | 894155 | Ferrari RH E-Latch Button - 894155 | $319.62 | Special order, ships in 7-14 days |
| 14 | 894154 | Ferrari LH E-Latch Button - 894154 | $319.62 | Special order, ships in 7-14 days |
| 15 | 16281827 | Ferrari Screw 5x14 - 16281827 | $0.46 | Special order, ships in 7-14 days |
| 16 | 914014 | Ferrari Luggage Compartment Release - 914014 | $344.21 | Special order, ships in 7-14 days |
| 17 | 55020830 | Ferrari Compl. Inertia Switch Bracke - 55020830 | $41.76 | Special order, ships in 7-14 days |
| 18 | 82893600 | Ferrari Lower Central Air Vent Control - 82893600 | $228.64 | Special order, ships in 7-14 days |
| 19 | 797183 | Ferrari Glove Compartment Open Button - 797183 | $442.56 | Special order, ships in 7-14 days |
| 20 | 811421 | Ferrari Screw M3 x 6 - 811421 | $0.82 | Special order, ships in 7-14 days |
| 20 | 14418074 | Ferrari Screw M3x8 - 14418074 | $0.40 | Available, ships in 3-6 days |
| 21 | 163675 | Ferrari Inertia Switch - 163675 | $39.46 | Available, ships in 3-6 days |
| 22 | 910473 | Ferrari Seat Memory Buttons - 910473 | $737.61 | Special order, ships in 7-14 days |
| 26 | 12639401 | Ferrari Washer - 12639401 | $0.06 | Available, ships in 3-6 days |
| 29 | 55047196 | Ferrari Ghiera Pulsante Apert. Cass. - 55047196 | $49.14 | Special order, ships in 7-14 days |
