Ferrari 12 Cilindri — [ELECTRICAL SYSTEM] - F.05 - OTHER ELECTRICAL DEVICES (diagram 0180)

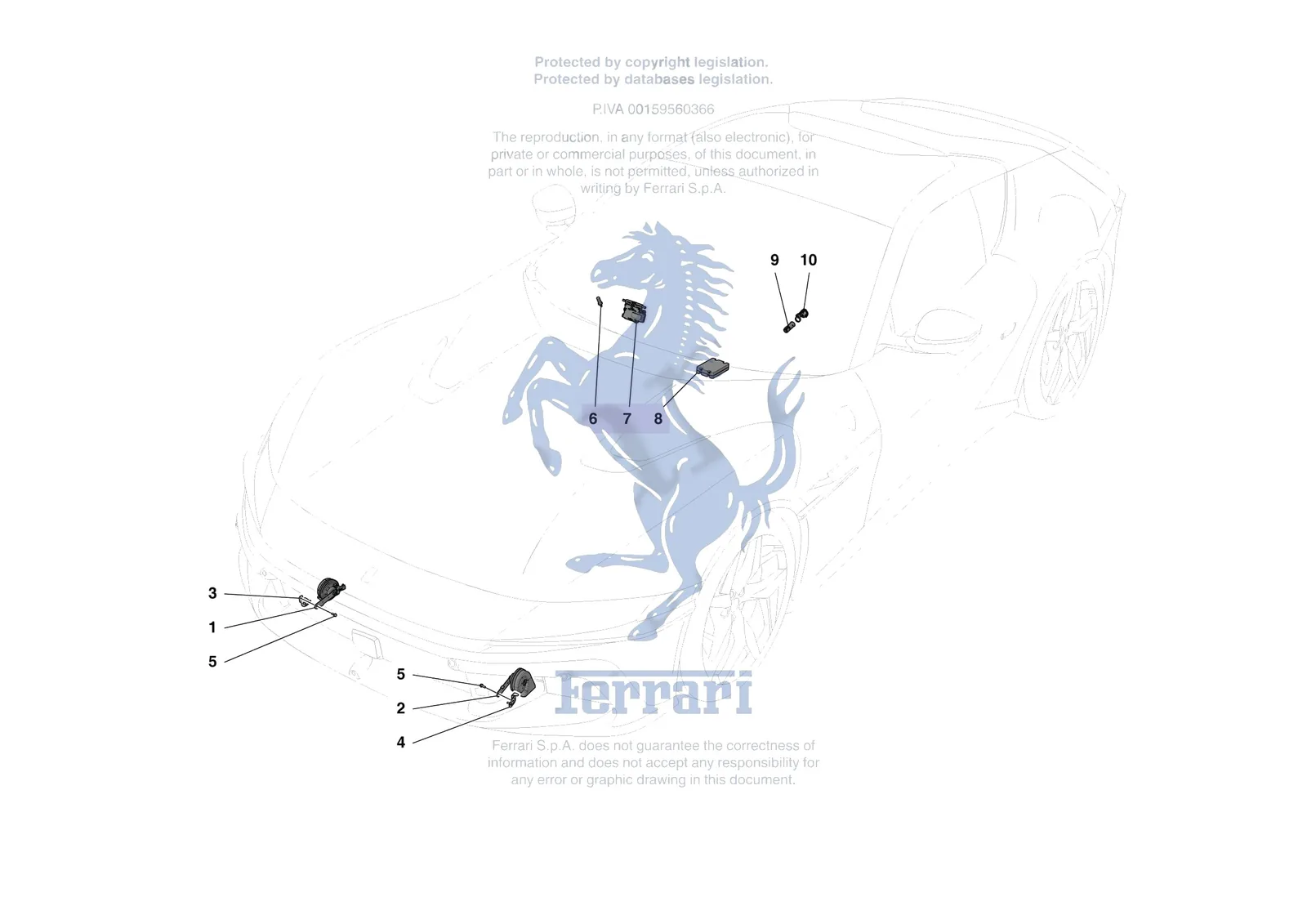

Exploded view of the [electrical system] - f.05 - other electrical devices on the Ferrari 12 Cilindri, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [ELECTRICAL SYSTEM] - F.05 - OTHER ELECTRICAL DEVICES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0180.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 336893 | Ferrari Avv. Acustico Tono Alto F164 - 336893 | Superseded | Order 789532 instead | |
| 336894 | Ferrari Avv. Acustico Tono Basso F16 - 336894 | $41.30 | Special order, ships in 7-14 days | |
| 1 | 789532 | Ferrari Horn High Note - 789532 | $115.80 | Special order, ships in 7-14 days |
| 2 | 789533 | Ferrari Horn Low Note - 789533 | $115.80 | Special order, ships in 7-14 days |
| 3 | 821455 | Ferrari Compl. RH Spacer Bracket - 821455 | $56.52 | Special order, ships in 7-14 days |
| 4 | 821453 | Ferrari Compl. LH Spacer Bracket - 821453 | $56.52 | Special order, ships in 7-14 days |
| 5 | 16286024 | Ferrari SCREW - 16286024 | $0.38 | Available, ships in 3-6 days |
| 5 | 16285124 | Ferrari Screw 5x16 - 16285124 | Superseded | Order 16286024 instead |
| 6 | 188266 | Ferrari GLOVE COMPARTMENT LIGHT BUTTON - 188266 | $49.14 | Special order, ships in 7-14 days |
| 7 | 747782 | Ferrari Electric Actuator - 747782 | $305.96 | Special order, ships in 7-14 days |
| 8 | 817378 | Ferrari Front Wireless Charger - 817378 | $1,499.85 | Special order, ships in 7-14 days |
| 9 | 885472 | Ferrari 12V Power Socket Bezel - 885472 | $12.99 | Special order, ships in 7-14 days |
| 10 | 885482 | Ferrari 12V Power Socket Ring - 885482 | $36.86 | Special order, ships in 7-14 days |
