Ferrari 12 Cilindri — [ELECTRICAL SYSTEM] - F.06 - ELECTRICAL SYSTEM CONTROL UNITS (diagram 0181)

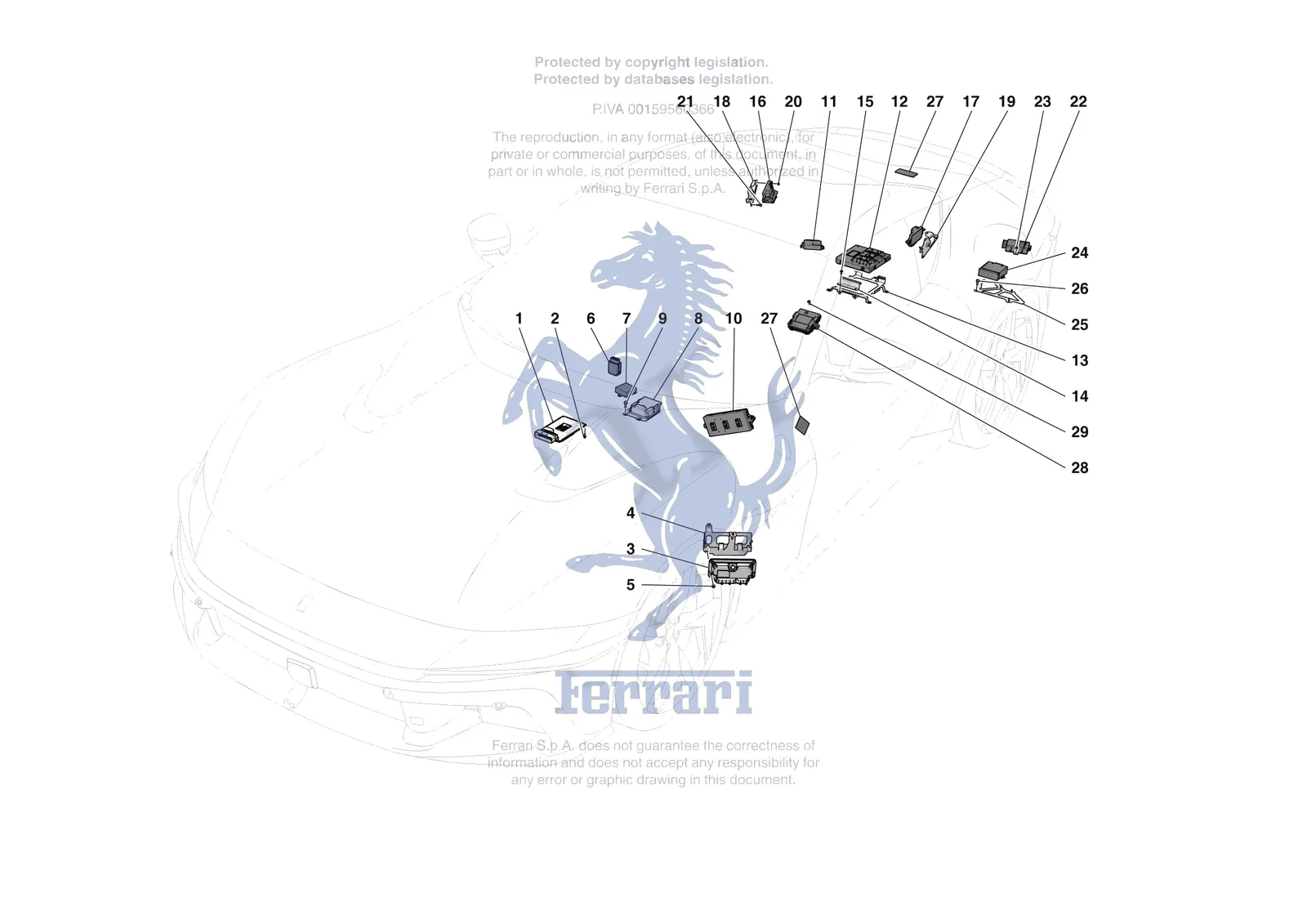

Exploded view of the [electrical system] - f.06 - electrical system control units on the Ferrari 12 Cilindri, with 42 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [ELECTRICAL SYSTEM] - F.06 - ELECTRICAL SYSTEM CONTROL UNITS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0181.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 900782 | Ferrari Ac Ecu - 900782 | Superseded | Order 886549 instead | |
| 951166 | Ferrari Dongle - 951166 | Superseded | Order 951168 instead | |
| 951167 | Ferrari Dongle - 951167 | $2,060.69 | Special order, ships in 7-14 days | |
| 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 1 | 920185 | Ferrari Magneride Suspension Ecu - 920185 | $2,201.19 | Special order, ships in 7-14 days |
| 2 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 3 | 832640 | Ferrari Vehicle Lift System Control - 832640 | $1,549.03 | Special order, ships in 7-14 days |
| 4 | 982221 | Ferrari Lifter ECU Bracket - 982221 | $169.62 | Special order, ships in 7-14 days |
| 5 | 14040514 | Ferrari Flanged Nut - 14040514 | Superseded | Order 13046011 instead |
| 6 | 951168 | Ferrari MYFERRARI CONNECT ECU - 951168 | $1,920.19 | Special order, ships in 7-14 days |
| 6 | 951169 | Ferrari MYFERRARI CONNECT ECU - 951169 | $2,060.69 | Special order, ships in 7-14 days |
| 7 | 908016 | Ferrari Headlamp Control Unit - 908016 | Superseded | Order 870717 instead |
| 7 | 870717 | Ferrari Lights Control Ecu - 870717 | $467.15 | Special order, ships in 7-14 days |
| 8 | 851172 | Ferrari Airbag Ecu - 851172 | $1,081.84 | Special order, ships in 7-14 days |
| 8 | 868514 | Ferrari Airbag Ecu - 868514 | $1,057.27 | Special order, ships in 7-14 days |
| 8 | 870538 | Ferrari Airbag Ecu - 870538 | $1,081.84 | Special order, ships in 7-14 days |
| 9 | 16286124 | Ferrari Screw M6x20 - 16286124 | $0.71 | Special order, ships in 7-14 days |
| 10 | 886549 | Ferrari Ac Ecu - 886549 | $1,844.08 | Special order, ships in 7-14 days |
| 11 | 954253 | Ferrari Parking Sensor Ecu - 954253 | $467.15 | Special order, ships in 7-14 days |
| 12 | 985508 | Ferrari Bosch Bcm Production - 985508 | $2,433.03 | Special order, ships in 7-14 days |
| 13 | 887028 | Ferrari Compl. Body Computer Bracket - 887028 | $145.03 | Special order, ships in 7-14 days |
| 14 | 887033 | Ferrari Upper Body Computer Bracket - 887033 | $83.57 | Special order, ships in 7-14 days |
| 15 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 16 | 773444 | Ferrari Master Epc Unit For Fuel Pumps - 773444 | $614.67 | Special order, ships in 7-14 days |
| 17 | 773445 | Ferrari Slave Epc Unit For Fuel Pumps - 773445 | $614.67 | Special order, ships in 7-14 days |
| 18 | 872277 | Ferrari RH Master ECU Bracket - 872277 | $63.90 | Special order, ships in 7-14 days |
| 19 | 872276 | Ferrari LH Slave ECU Bracket - 872276 | $63.90 | Special order, ships in 7-14 days |
| 20 | 14059111 | Ferrari Flanged Nut M5 - 14059111 | $0.08 | Available, ships in 3-6 days |
| 20 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 21 | 16281827 | Ferrari Screw 5x14 - 16281827 | $0.46 | Special order, ships in 7-14 days |
| 21 | 16285227 | Ferrari Screw M5 x 20 - 16285227 | $0.59 | Available, ships in 3-6 days |
| 22 | 845330 | Ferrari Variable Geometry Wing Ecu - 845330 | $835.97 | Special order, ships in 7-14 days |
| 23 | 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days |
| 23 | 13046012 | Ferrari Nut - 13046012 | Superseded | Order 13046011 instead |
| 24 | 954255 | Ferrari Electric Tailgate Ecu - 954255 | $1,696.56 | Special order, ships in 7-14 days |
| 25 | 887421 | Ferrari Compl. Bracket - 887421 | $137.67 | Special order, ships in 7-14 days |
| 26 | 16286121 | Ferrari Screw M6 x 20 - 16286121 | $1.23 | Available, ships in 3-6 days |
| 27 | 179309 | Ferrari ADHESIVE FOAM - 179309 | $8.28 | Available, ships in 3-6 days |
| 28 | 748856 | Ferrari Door Ecu - 748856 | $639.27 | Special order, ships in 7-14 days |
| 28 | 843795 | Ferrari Door Ecu - 843795 | $639.27 | Special order, ships in 7-14 days |
| 29 | 65377400 | Ferrari Screw M6 x 1 x 18 - 65377400 | $3.91 | Available, ships in 3-6 days |
