Ferrari 12 Cilindri — [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT (diagram 0185)

Exploded view of the [electrical system] - f.10 - audio unit on the Ferrari 12 Cilindri, with 57 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

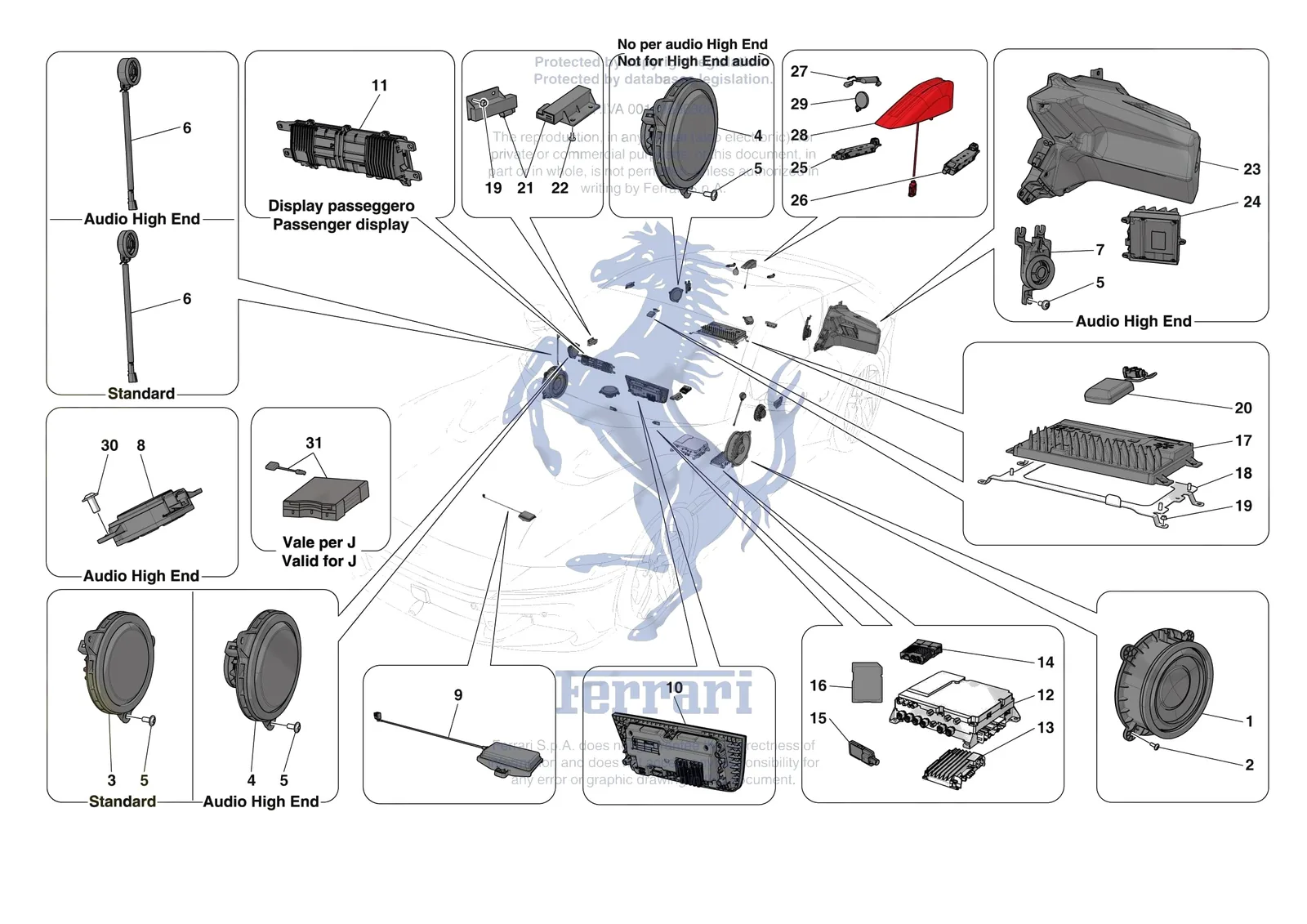

Ferrari 12 Cilindri [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
887994Ferrari Dsrc Kit - 887994SupersededOrder 867280 instead
242694Ferrari GPS Antenna - 242694Price on requestContact us for price and availability
331961Ferrari GPS Antenna - 331961$154.46Special order, ships in 7-14 days
931307432Ferrari Navigation System Gps Antenna - 931307432SupersededOrder 789209 instead
263423Ferrari Negative Filter - 263423$95.43Special order, ships in 7-14 days
14039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
1954447Ferrari Woofer - 954447$415.25Special order, ships in 7-14 days
285833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
285833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
3772410Ferrari FULLRANGE - 772410Price on requestContact us for price and availability
4772414Ferrari Midrange Speaker - 772414$177.00Special order, ships in 7-14 days
585692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
6749285Ferrari Tweeter - 749285$124.55Special order, ships in 7-14 days
6989558Ferrari Tweeter - 989558$262.24Special order, ships in 7-14 days
7772404Ferrari Tweeter - 772404Price on requestContact us for price and availability
8772416Ferrari Headliner - 772416$393.38Special order, ships in 7-14 days
9935814Ferrari Passive Start Antenna - 935814$126.73Special order, ships in 7-14 days
9925991Ferrari Passive Start Antenna RF Gen - 925991$126.73Available, ships in 3-6 days
1055023969Ferrari Centre Display - 55023969$12,591.44Contact us to order
11866235Ferrari Ndp Display Passeggero Spec. - 866235$4,114.39Special order, ships in 7-14 days
1255065974Ferrari NIT - 55065974$14,876.98Contact us to order
1255065977Ferrari NIT - 55065977Price on requestContact us for price and availability
1255065983Ferrari NIT - 55065983$16,621.53Contact us to order
1255065984Ferrari NIT - 55065984$16,961.90Contact us to order
12748714Ferrari Nit - 748714$14,916.78Contact us to order
12748716Ferrari Nit - 748716$17,120.36Contact us to order
12748717Ferrari Nit - 748717$15,256.34Contact us to order
12748719Ferrari Nit - 748719$17,054.79Contact us to order
13749028Ferrari Surround View Ecu - 749028$7,498.18Special order, ships in 7-14 days
14893865Ferrari Smart Usb Port - 893865$590.08Special order, ships in 7-14 days
15969204Ferrari Antenna Bt-Wifi Dual Band - 969204$96.14Special order, ships in 7-14 days
1670006012Ferrari Sd Card Navigation Maps - 70006012$1,256.70Special order, ships in 7-14 days
17953846Ferrari Adc - 953846$10,769.59Contact us to order
17953849Ferrari Adc - 953849$12,429.88Contact us to order
18887039Ferrari Compl. Adc Bracket - 887039$270.44Special order, ships in 7-14 days
1914059111Ferrari Flanged Nut M5 - 14059111$0.08Available, ships in 3-6 days
1914039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
20789209Ferrari GPS Antenna - 789209$155.15Special order, ships in 7-14 days
21310778Ferrari Passive Start Antenna - 310778$26.20Available, ships in 3-6 days
2265752800Ferrari Screw M4 x 10 TBEI - 65752800$4.12Available, ships in 3-6 days
23942128Ferrari Subwoofer - 942128$2,449.94Special order, ships in 7-14 days
24772393Ferrari Booster - 772393$3,528.97Special order, ships in 7-14 days
25882759Ferrari Ampli Am/Fm2/Dab2 New Gen Co - 882759$368.79Special order, ships in 7-14 days
25771351Ferrari FM2/DAB Amplifier - 771351$226.19Special order, ships in 7-14 days
25771352Ferrari Fm2/Dab Amplifier - 771352$270.44Special order, ships in 7-14 days
26331962Ferrari Am/Fm Amplifier - 331962$189.31Special order, ships in 7-14 days
26771349Ferrari Am/Fm Amplifier - 771349$240.94Special order, ships in 7-14 days
27263421Ferrari Positive Filter - 263421$117.99Special order, ships in 7-14 days
2855034997Ferrari FIN - 55034997Price on requestContact us for price and availability
2855034994Ferrari SDARS FIN - 55034994Price on requestContact us for price and availability
2855034996Ferrari SDARS FIN - 55034996Price on requestContact us for price and availability
29217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
3085692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
31867280Ferrari Dsrc Kit - 867280$4,362.61Special order, ships in 7-14 days
