Ferrari 12 Cilindri — [ELECTRICAL SYSTEM] - F.16 - ADAS (diagram 0191)

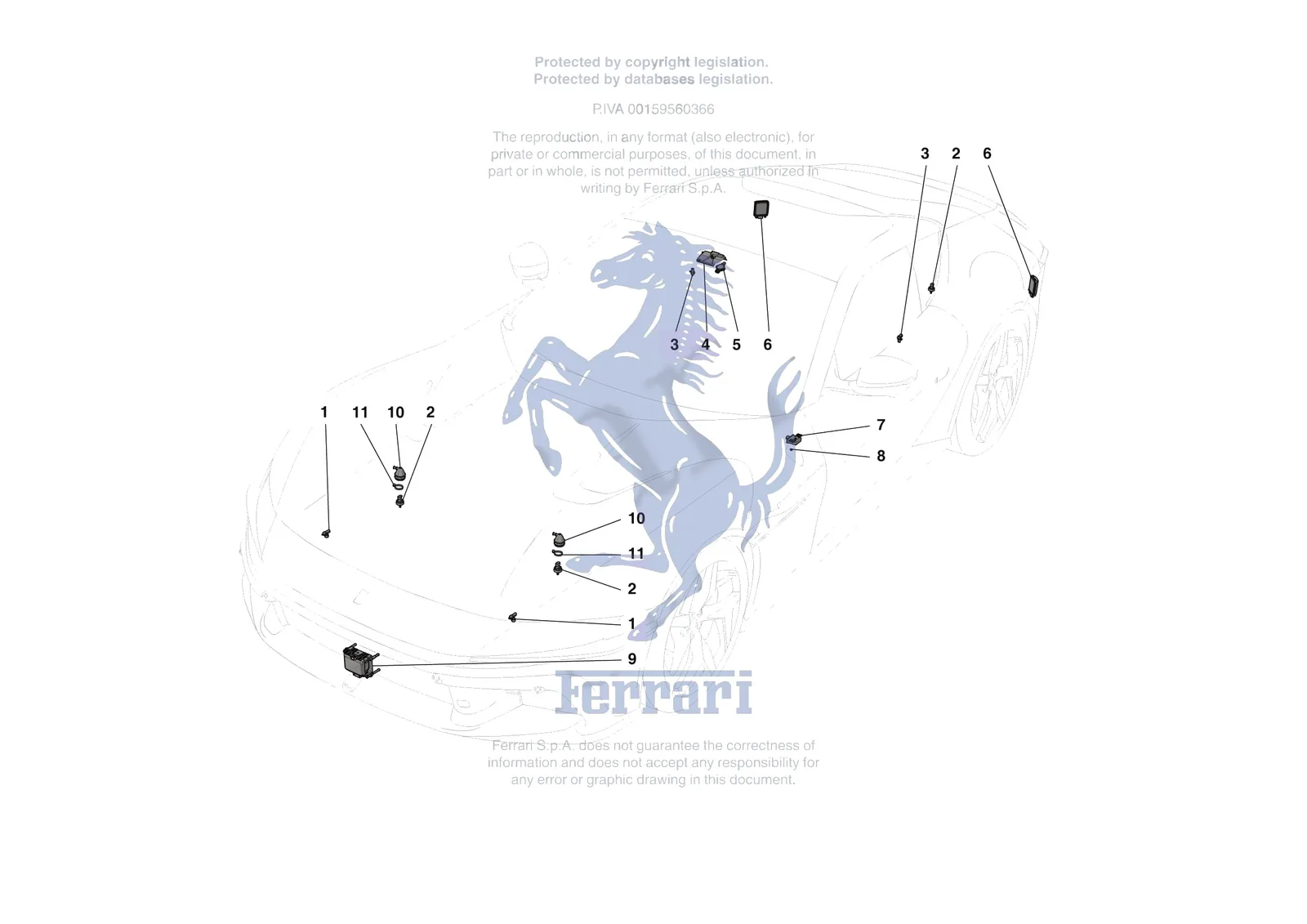

Exploded view of the [electrical system] - f.16 - adas on the Ferrari 12 Cilindri, with 14 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [ELECTRICAL SYSTEM] - F.16 - ADAS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0191.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days | |
| 1 | 764923 | Ferrari Front Crash Sensor - 764923 | $74.29 | Available, ships in 3-6 days |
| 2 | 990305 | Ferrari Accelerator For Magneride System - 990305 | $442.56 | Available, ships in 3-6 days |
| 3 | 764924 | Ferrari LATERAL CRASH SENSOR - 764924 | $74.29 | Special order, ships in 7-14 days |
| 4 | 996047 | Ferrari Mpc Camera - 996047 | $2,515.00 | Special order, ships in 7-14 days |
| 5 | 786808 | Ferrari Rain And Twilight Sensor - 786808 | $393.38 | Special order, ships in 7-14 days |
| 6 | 872457 | Ferrari Rear Radar - 872457 | $1,524.44 | Special order, ships in 7-14 days |
| 7 | 939577 | Ferrari TPMS ECU/Antenna - 939577 | $762.20 | Special order, ships in 7-14 days |
| 7 | 939579 | Ferrari Tpms Ecu/Antenna - 939579 | $762.20 | Special order, ships in 7-14 days |
| 8 | 14059111 | Ferrari Flanged Nut M5 - 14059111 | $0.08 | Available, ships in 3-6 days |
| 8 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 9 | 843823 | Ferrari FRONT RADAR UNIT - 843823 | $2,318.29 | Special order, ships in 7-14 days |
| 10 | 788131 | Ferrari Accelerometer Guard Cover - 788131 | $16.45 | Special order, ships in 7-14 days |
| 11 | 206739 | Ferrari Tear Clip - 206739 | $16.37 | Available, ships in 3-6 days |
